MAKING CONNECTIONS

Before plugging your studio monitors into the Nuance Select for the first
time, we recommend turning off all speakers or their associated power
amps in order to prevent the occurrence of high output transients or other
power-on noises through the system.
All of the rear panel inputs and outputs utilize 1/4" TRS connections. Use
balanced TRS cables to connect to your playback sources, speakers
and subwoofer, or use TRS to XLR adaptor cables if necessary. If you
plan on connecting the Nuance outputs to a device with unbalanced
inputs, please refer to page 10 of this manual for more detailed wiring
instructions.
The Source inputs on the Nuance are designed for connection to line-
level playback devices such as mixing consoles or audio interfaces, while
the Speaker and Sub outputs are meant to feed the line-level inputs of
powered monitors/subwoofers or power amplifiers.
The Aux connection is a stereo unbalanced output that can be used
to feed signal through to an additional device such as a headphone
amplifier. Please see the related section for this feature on page 9.
Once you have connected your inputs, speakers, and subwoofer, power
on the Nuance Select by connecting it to the included 15V power supply,
then power on your speakers and subwoofer. There is no On/Off switch
on the Nuance - once it is receiving power the Mute switch will illuminate
for 5 seconds and then the unit will be ready for use.

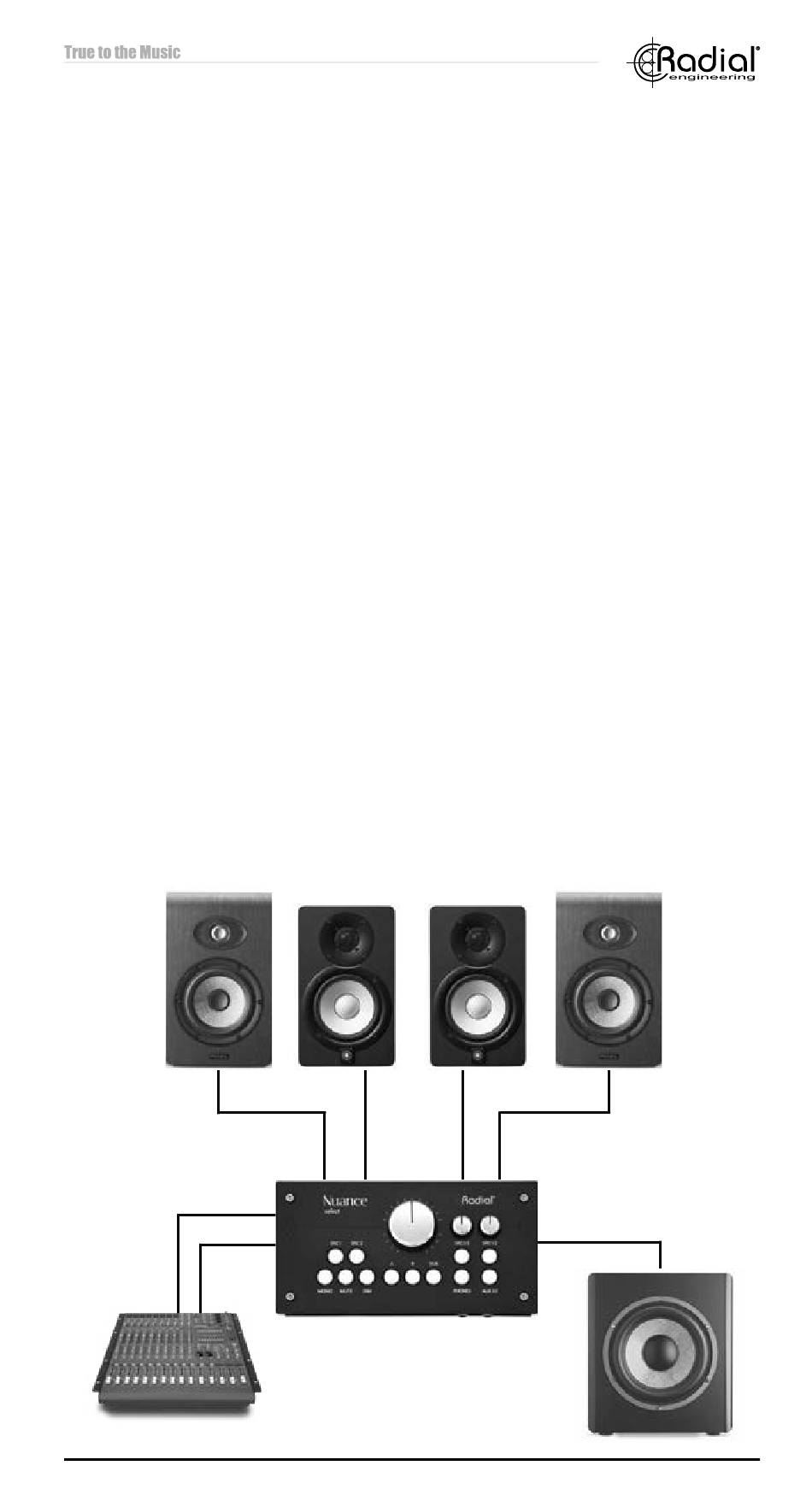

Speaker B
Left/Right
Speaker A Left Speaker A Right
Source 1 Left/Right Subwoofer
