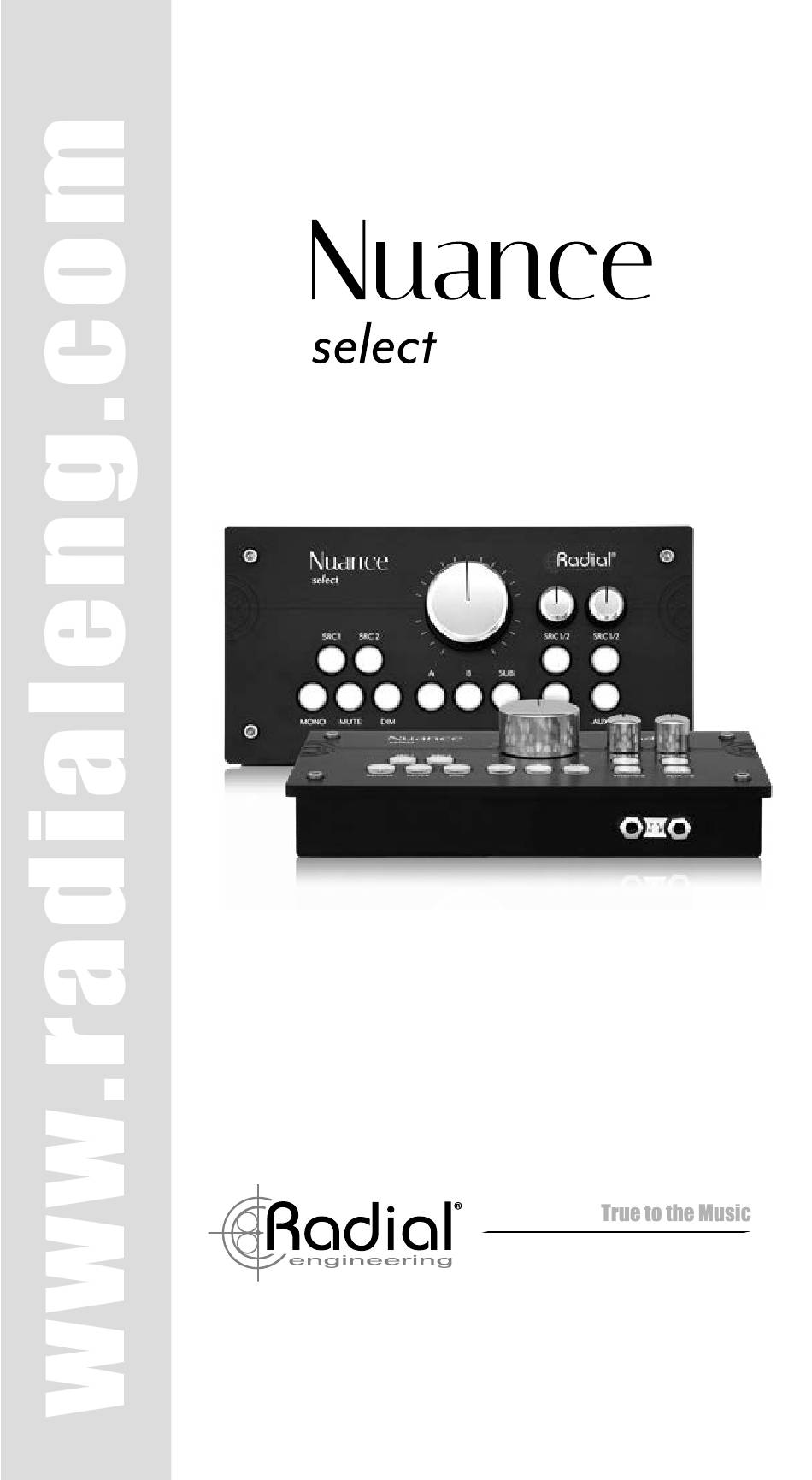

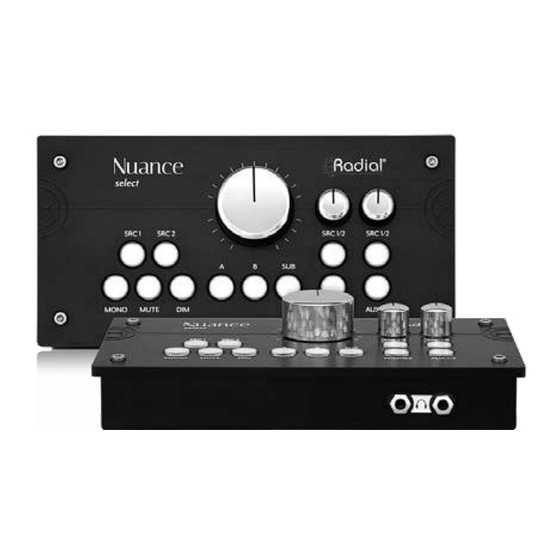

- Page 1 USER GUIDE Radial Engineering Ltd. 1845 Kingsway Ave., Port Coquitlam, BC V3C 0H3, Canada Tel: 604-942-1001 Email: info@radialeng.com...
-
Page 2: Table Of Contents
We recommend you take a few minutes to read this short manual before you begin using the Nuance Select, as it covers the various features of the controller as well as tips for setup and use. Should you have any questions about this product, please visit our website at www.radialeng.com for additional resources... -
Page 3: Overview
This is why every effort has been made for the Nuance Select to sound like it's not even in the signal path. -
Page 4: Features
SUB: Activates the mono Sub output when selected. The Sub output is a full bandwidth output with no frequency rolloff. LEVEL: Sets the overall output level of the Speaker and Sub outputs. This control does not affect the Headphone or Aux outputs. Radial Engineering Ltd. Nuance Select™... - Page 5 HP 1 & 2 LEVEL: Sets the signal level at the headphone outputs. Each pot controls the corresponding left or right headphone output on the front panel of the Nuance Select. SRC 1/2: Selects the input source for each of the headphone outputs.
- Page 6 SOURCE 2: Balanced left and right inputs for connection to the secondary (or cue) outputs from an audio interface or mixing console. SOURCE 1: Balanced left and right inputs for connection to the primary outputs from an audio interface or mixing console. Radial Engineering Ltd. Nuance Select™...
-
Page 7: Making Connections
Please see the related section for this feature on page 9. Once you have connected your inputs, speakers, and subwoofer, power on the Nuance Select by connecting it to the included 15V power supply, then power on your speakers and subwoofer. There is no On/Off switch on the Nuance - once it is receiving power the Mute switch will illuminate for 5 seconds and then the unit will be ready for use. -
Page 8: Using The Monitor Control Section
This can be useful if you wish to use two sets of stereo speakers along with an additional 'sound cube' style mono speaker for checking midrange balance or translation on mass-market speakers. Radial Engineering Ltd. Nuance Select™... - Page 9 2dB increments. When setting up the Nuance Select with your monitors for the first time, start with the Level control turned fully counter clockwise and slowly bring up the volume once playback begins.
-
Page 10: Using The Headphone Section
USING THE HEADPHONE SECTION The Nuance Select features two built in headphone amplifiers, each with their own independent level controls and source select switches to provide added flexibility for recording overdubs in the control room. The two 1/4" headphone outputs are located... -
Page 11: The Aux Output
1/4" TRS to dual 1/4" TS stereo insert cable. Using the Aux Out to feed a remote headphone amp Ground Left The Aux Out is wired as Tip = Left, Ring = Right, and Sleeve = Ground Right Radial Engineering Ltd. Nuance Select™... -
Page 12: Wiring Guide For The Speaker Outputs
Fig. 2: Optional wiring between the Nuance Outputs and balanced inputs if a ground loop is encountered Ground Ground Nuance Speaker Output Input Disconnected Disconnected Fig. 3: Wiring for connecting the Nuance Outputs to unbalanced inputs Radial Engineering Ltd. Nuance Select™... -
Page 13: Specifications
Serial #: ___________________ In order to meet Electromagnetic and Safety Compliance requirements Radial Engineering is recommending to use the Nuance Select product with the provided R800 9414 00 power adapter, Model: GPSN25A - 14E, Input: 100-240V, 50/60Hz, 0.8A, Output 5V, 2.5A, Elgintek Power Supply, considering all Electromagnetic and Safety compliance was performed using only this power adapter. - Page 14 Radial Engineering Ltd. Nuance Select™...
- Page 15 Radial Engineering Ltd. Nuance Select™...
- Page 16 1845 Kingsway Ave., Port Coquitlam, BC V3C 0H3, Canada Tel: 604-942-1001 Email: info@radialeng.com Radial Nuance Select User Guide - Part #: R870 1265 00 / 05-2024 / V1.0 Appearance and specifications subject to change without notice. Copyright © 2024 Radial Engineering Ltd. All rights reserved.
