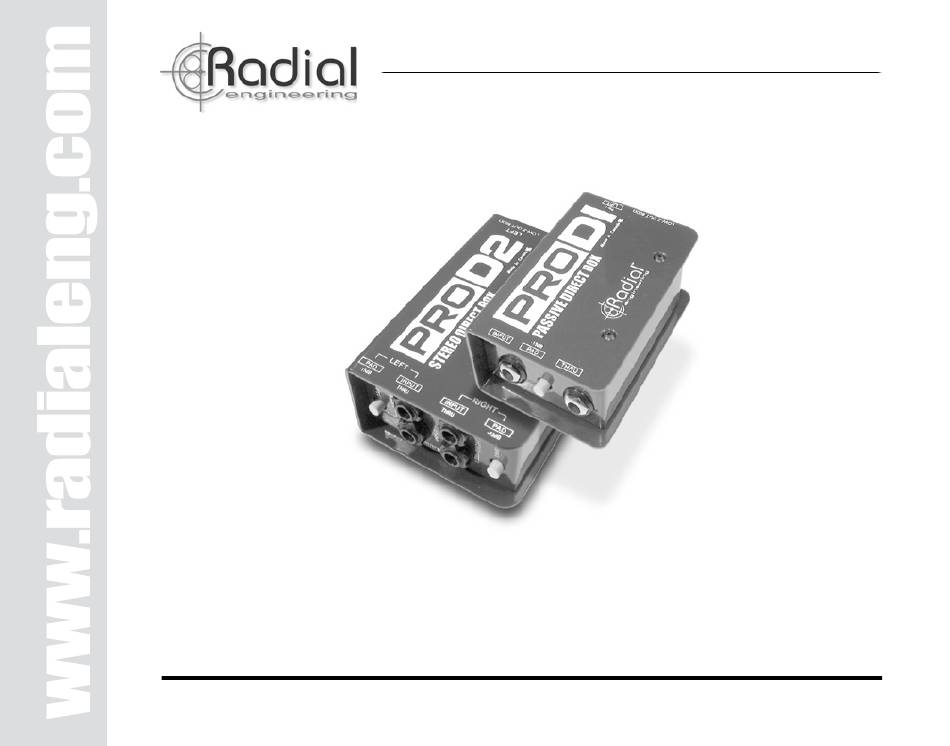

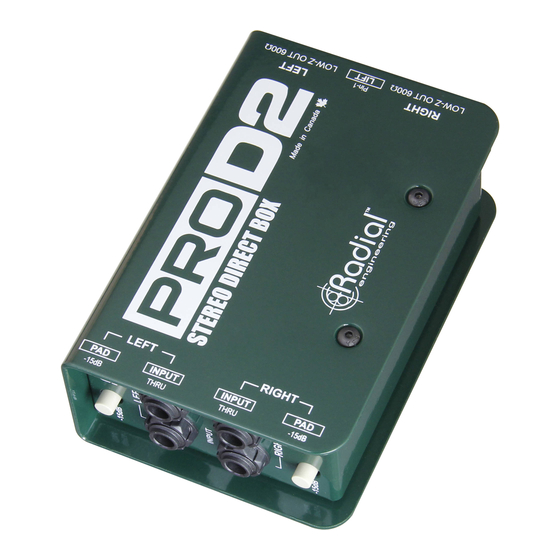

- Page 1 ® True to the Music ProD2 ™ ™ Passive Stereo Direct Box ProDI ™ ™ Passive Direct Box User Guide Radial Engineering Ltd. 1845 Kingsway Ave., Port Coquitlam BC, V3C 1S9, Canada Tel: 604-942-1001 • Fax: 604-942-1010 • email: info@radialeng.com...
-
Page 2: Table Of Contents
WELCOME Congratulations on your purchase of the Radial ProDI or ProD2 direct box, two of the most versatile and useful pieces of equipment you will likely ever own! Why do we say this? Simple: a good passive direct box can often fi nd its way into all kinds of applications and be a real problem-solver for both live PA systems and studio recording. -
Page 3: Introduction
Radial Engineering Ltd. ProDI ™ User Guide... -
Page 4: Features
10. DOUBLE-SIDED PCB: Military-grade 10. DOUBLE-SIDED PCB: Military-grade PCB with plated through-holes is bolted PCB with plated through-holes is bolted to welded steel standoffs. to welded steel standoffs. Radial Engineering Ltd. ProDI ™ User Guide... -
Page 5: Making Connections
ProDI. This will reduce the input sensitivity by -15dB and eliminate distortion caused by ultra-high output sources. After depressing the PAD switch, the mixer input controls may have to be readjusted. Balanced Balanced Inputs Input Thru-puts Thru-put Radial Engineering Ltd. ProDI ™ User Guide... -
Page 6: Frequently Asked Questions
The Radial JDV and PZ-Pre include a piezo feature with a very high input impedance that is perfectly suited for passive piezo pickups. Radial Engineering Ltd. ProDI ™... -
Page 7: Block Diagram And Specifications
True to the Music BLOCK DIAGRAM AND SPECIFICATIONS ProD2 ProDI ProDI and ProD2 Specifi cations Frequency response: 20Hz to 20kHz +/- 2.5dB Total harmonic distortion: 0.01 % from 20Hz to 20kHz Input impedance: 140K ohms (with 1kHz input) Balanced outputs:... - Page 8 3 YEAR TRANSFERABLE WARRANTY RADIAL ENGINEERING LTD. (“Radial”) warrants this product to be free from defects in material and workmanship and will remedy any such defects free of charge according to the terms of this warranty. Radial will repair or replace (at its option) any defective component(s) of this product (excluding fi...
