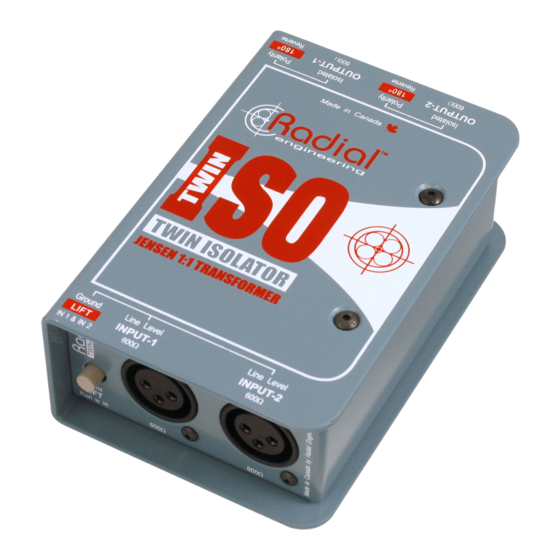

Radial Engineering Twin-Iso User Manual

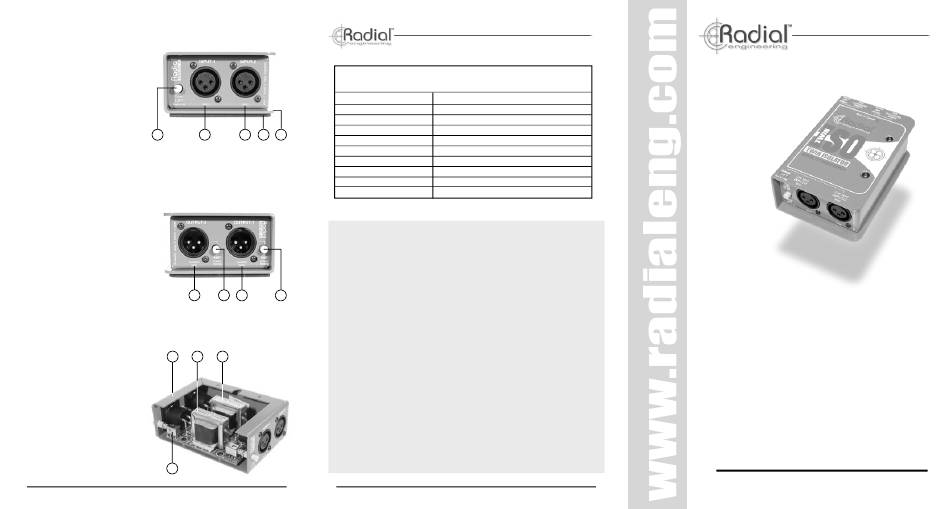

INPUT PANEL
1. Ground lift (inputs) Lifts the
ground pin-1 on the XLR input
connectors.
2. Input-1 For low impedance
600 ohms, balanced line-level
signals.
3. Input-2 For low impedance
600 ohms, balanced line-level
signals.
4. Full-bottom no-slip pad This
1 2
provides electrical isolation and
plenty of "stay-put" friction to
keep the JS•3 in one place.
5. Bookend design 14 gauge
steel outer shell creates protective
zone around connectors and
switches.
OUTPUT PANEL
6. Output-2 600 ohm line-level
transformer-isolated.
7. Polarity reverse (output-2)
180° - Polarity reverse phase
reverse switch.
8. Output-1 600 ohm line-level 6
transformer-isolated.
9. Polarity reverse (output-1)
180° - Polarity reverse phase
reverse switch.
CONSTRUCTION 10 11
10. Steel I-beam enclosure
eliminates stress that could
torque the PC board and cause
solder joint failure.
11. Military-grade double-sided
PCB with plated through-holes is
bolted to welded steel standoffs.
12. Jensen transformers offer
outstanding audio performance.
13. Sturdy PC mounted switches
13
are high-cycle rated for long life.
Radial Engineering Twin-Iso User Guide
TWIN-ISO SPECIFICATIONS
Frequency response
Max output level
Phase distortion
Total harmonic distortion
3 4 5
Common-mode rejection
Inputs
Outputs
Power requirement
Size
Weight
RADIAL ENGINEERING 3 YEAR LIMITED WARRANTY
RADIAL ENGINEERING (a division of J.P. Cabletek Elec tron ics Ltd.) warrants this product
to be free from defects in ma te ri al and workmanship to the original owner and will rem e dy
any such defects free of charge ac cord ing to the terms of this war ran ty.
Radial will repair or replace (at its option) any defective component(s) of this product
(excluding batteries, fi nish and wear and tear on components under normal use) for a
pe ri od of three (3) years from the original date of pur chase. In the event that a particular
7 8 9
product is no longer available, Radial re serves the right to replace the product with a similar
product of equal or greater value.
To make a request or claim under this limited warranty, the product must be returned pre paid
in the original shipping con tain er (or equivalent) to Radial or to an authorized Ra di al repair
center and you must assume the risk of loss or dam age. A copy of the original invoice
showing date of pur chase and the dealer name must accompany any re quest for work
12
to be performed under this limited warranty. This limited warranty shall not apply if the
product has been dam aged due to abuse, misuse, misapplication, ac ci dent or as a result
of service or modifi cation by any other than an au tho rized Radial repair cen ter.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE
HEREOF AND DESCRIBED ABOVE. NO WAR RAN TIES, WHETHER EXPRESSED
OR IMPLIED, IN CLUD ING BUT NOT LIMITED TO, ANY IMPLIED WAR RAN TIES OF
MER CHANT ABIL I TY OR FITNESS FOR A PAR TIC U LAR PUR POSE SHALL EXTEND
BEYOND THE RESPECTIVE WAR RAN TY PE RI OD DESCRIBED ABOVE OF THREE
YEARS. RADIAL SHALL NOT BE RESPONSIBLE OR LI A BLE FOR ANY SPE CIAL,
IN CI DEN TAL OR CON SE QUEN TIAL DAMAGES OR LOSS ARIS ING FROM THE USE
OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY FROM STATE TO STATE
OR PROVINCE TO PROVINCE.
Radial Engineering
10Hz to 50kHz +/- 1dB
+21dBu (20Hz, 1% THD)
0.3° at 20Hz
0.001% THD @1k, +4dBu (0.035% at 20Hz)
94dB @ 60Hz (83dB @ 3kHz)
Balanced 600-Ohm, line-level, pin-2 hot
Balanced 600-Ohm, line-level, pin-2 hot
None, completely passive
3.25" x 5" x 1.875"
2 lbs.
Twin-Iso User Guide
True to the Music
Twin-Iso
Users Guide
Radial Engineering
1638 Kebet Way, Port Coquitlam BC V3C 5W9
Tel: 604-942-1001 Fax: 604-942-1010
email: info@radialeng.com
Radial Engineering is a division of C•TEC (JP CableTek Electronics Ltd.)
Radial Twin-Iso users guide V1.0 - Part #: R870 1025 00
