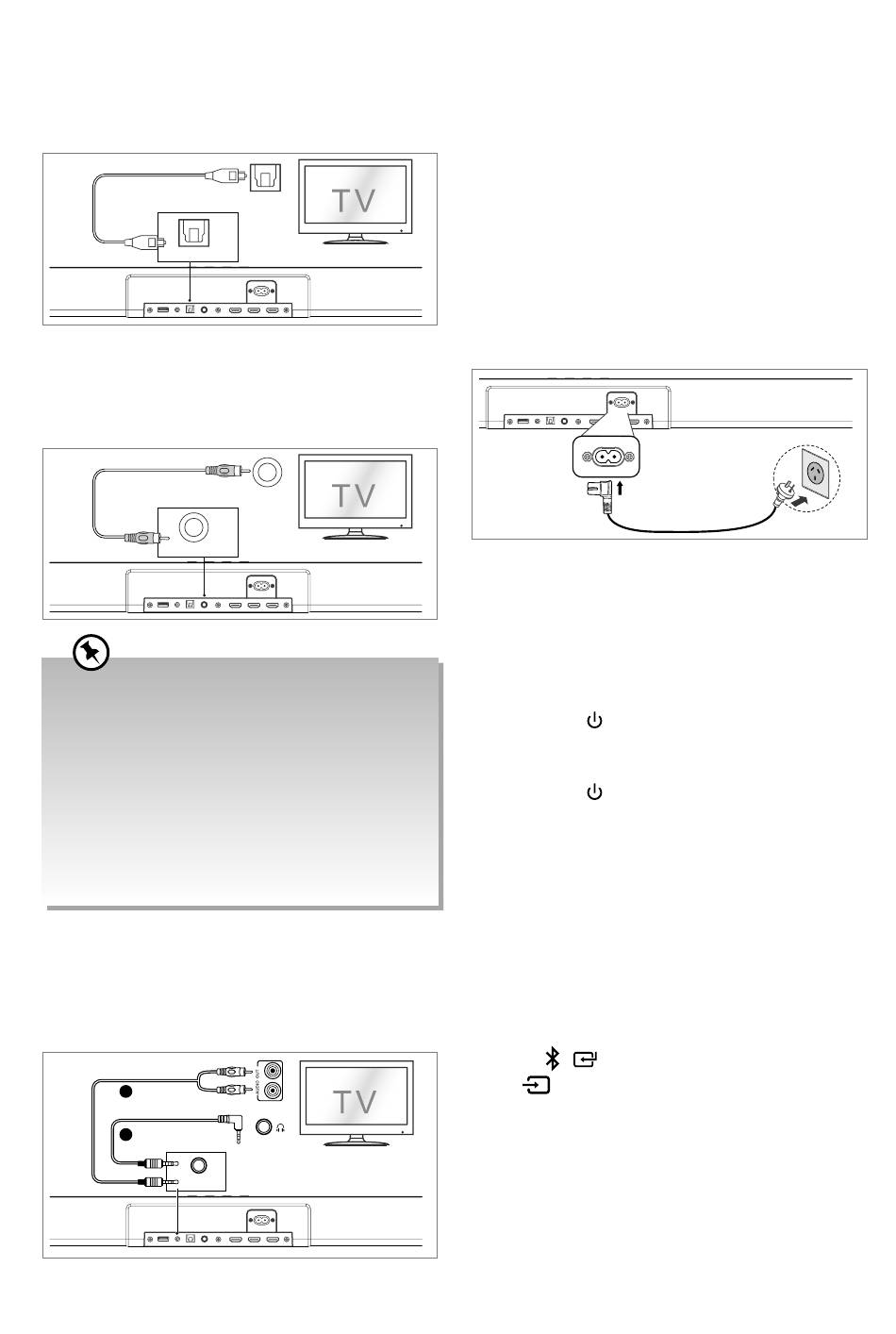

6.3 Use the OPTICAL Socket

-
You also can use the OPTICAL cable to the
TV's OPTICAL OUT socket and the OPTICAL
socket on the soundbar.
OPTICAL

6.4 Use the COAXIAL Socket

OPTICAL
• You also can use the COAXIAL cable to
connect the TV's COAXIAL OUT socket and
COAXIAL socket on the soundbar.
COAXIAL
B COAXIAL
A
B
• The unit may not be able to decode all digital
audio formats from the input source. In this A
case, the unit will mute. The display will show
"Unsupported Sound Format. Please refer to
instruction book to change sound format to
PCM". This is NOT a defect. Ensure that the audio
OPTICAL
setting of the input source (e.g. TV, game console,
DVD player, etc.) is set to PCM or Dolby Digital
(Refer to the user manual of the input source
device for its audio setting details) with HDMI/
Optical/Coaxial input.

6.5 Use the AUX Socket

COAXIAL
A. Use a 3.5mm to 3.5mm audio cable to connect
the TV's or external audio device headphone
socket to the AUX socket on the soundbar.
B
A
8
HDMI IN 1 HDMI IN 2
HDMI
eARC/ARC
HDMI OUT
HDMI OUT
(eARC/ARC)
HDMI
eARC/ARC
HDMI OUT
(eARC/ARC)
OPTICAL
HDMI IN
HDMI OUT
(eARC/ARC)
OPTICAL
or
COAXIAL
HDMI IN 1 HDMI IN 2
HDMI OUT
COAXIAL
HDMI
eARC/ARC
HDMI OUT
(eARC/ARC)
Headphone
AUX
Headphone
OPTICAL
AUX
COAXIAL
Headphone
AUX
B. Use a RCA to 3.5mm audio cable to connect
the TV's audio output sockets to the AUX
socket on the soundbar.

6.6 Connect Power

Risk of product damage! Ensure that the
•
power supply voltage corresponds to the
voltage printed on the back or the underside
of the soundbar.
• Before connecting the AC power cord, ensure
you have completed all other connections.
Connect the mains cable to the AC~ socket of
•
the soundbar and then into a mains socket.

7. Basic Operation

7.1 Standby/ON

When you first connect the soundbar to the mains
socket, the soundbar will be in Standby mode.
• Press the button on the soundbar or on
the remote control to switch the soundbar
ON.
• Press the button again to switch the
soundbar back to STANDBY mode.
• Disconnect the mains plug from the mains
socket if you want to switch the soundbar
OFF completely.
- If a TV or an external device is connected
with eARC/ARC, the soundbar will switch on
automatically when the TV or the external
device is switched on.

7.2 Select Modes

Press the / (SOURCE) button on the soundbar
or the button on the remote control to select
the AUX, Bluetooth, Optical, Coaxial, HDMI 1,
HDMI 2, HDMI eARC, USB mode. The current
audio input mode is shown in display.

7.3 Adjust the Bass Level

Press the BASS + / － buttons on the remote
control to adjust bass level.
