Summary of Contents for JVC JVB66223

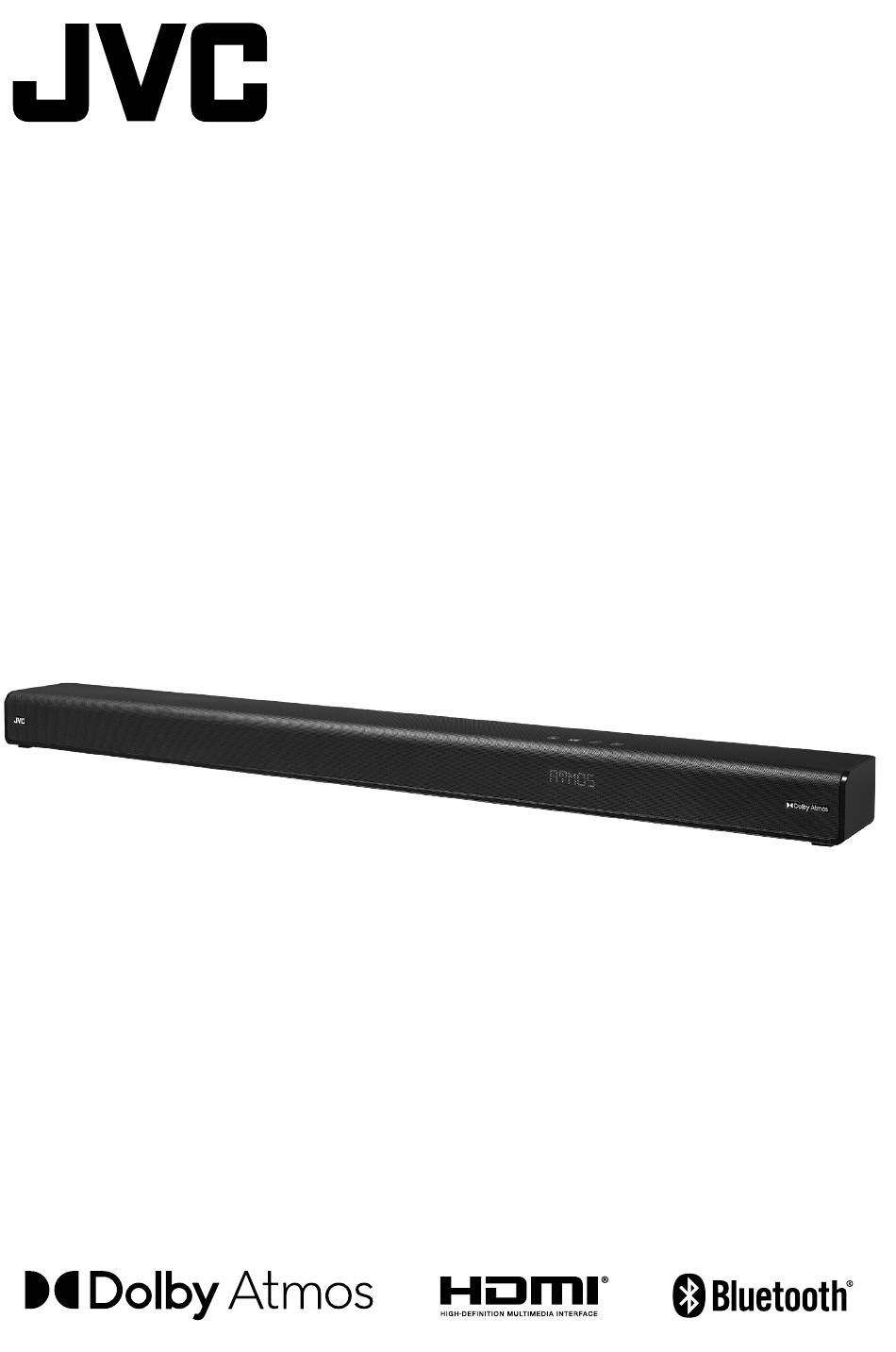

- Page 1 2.1ch Dolby Atmos Sound bar with Built-in woofer Model: JVB66223 User Manual...
-
Page 3: Table Of Contents
Contents Important Safety Instructions ......................2 Safety .........................................2 Caution ........................................2 Warning ........................................3 What’s in the Box ..........................3 Identifying the Parts ........................4 Soundbar .........................................4 Remote Control .....................................5 Preparations ............................. 5 Prepare the Remote Control ................................5 Replace the Remote Control Battery .............................5 Placement and Mounting ........................ -
Page 4: Important Safety Instructions
1. Important Safety Instructions Unplug the apparatus during lightning CAUTION storms or when unused for long periods of RISK OF ELECTRIC SHOCK time. DO NOT OPEN Refer all servicing to qualified personnel. CAUTION: TO REDUCE THE RISK OF ELECTRIC Servicing is required when the apparatus has SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 5: Warning
2. What’s in the Box 1.3 Warning • The battery (batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. Soundbar • Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply. -
Page 6: Identifying The Parts
3. Identifying the Parts 3.1 Soundbar Remote Control Sensor OPTICAL Socket Receive signal from the remote control. Use to connect to the OPTICAL OUT socket on an external device. Display Window COAXIAL Socket Show the current status. Use to connect to the COAXIAL OUT socket Wall bracket screws on an external device. -
Page 7: Remote Control
3.2 Remote Control Switch the soundbar between ON and STANDBY mode. Select the play function. + / － Increase/decrease the volume level. BASS + Adjust bass level. BASS － MOVIE Select (Movie) Equalizer Effect. Select the Bluetooth mode. Skip to previous/next track in Bluetooth/USB mode. Play/pause/resume playback in Bluetooth/USB mode. -
Page 8: Wall Mounting (If Using Option-B)
5.2 Wall Mounting (if using option-B) Fix two dowel and screws (included) onto the wall (for the concrete wall, use the dowels • Improper wall mounting may result in and make sure each screws goes more than accident, injury or damage. If you have any 25mm into the wall. -
Page 9: Connections
HDMI IN 1 HDMI IN 2 6. Connections set up, you can use your TV remote control to adjust the volume output (volume +/- and MUTE) of the soundbar. 6.1 Dolby Atmos® HDMI OUT Dolby Atmos® gives you immersive listening experience by delivering sound in three HDMI eARC/ARC... -
Page 10: Use The Optical Socket
HDMI IN 1 HDMI IN 2 HDMI eARC/ARC HDMI OUT HDMI OUT 6.3 Use the OPTICAL Socket Use a RCA to 3.5mm audio cable to connect (eARC/ARC) the TV’s audio output sockets to the AUX You also can use the OPTICAL cable to the socket on the soundbar. -
Page 11: Turn The Surround Sound On/Off
8. AUX / OPTICAL / COAXIAL / 7.4 Turn the Surround Sound ON/OFF Press the ATMOS button on the remote control HDMI Operation to turn on the surround sound. Press this button again to turn off the surround sound. Ensure that the soundbar is connected to the TV or audio device. -
Page 12: Bluetooth® Operation
BLUETOOTH READY. control to select USB mode. On the Bluetooth device, switch on Bluetooth, search for and select “JVB66223” to start connection Wait until you hear the voice prompt from the soundbar. Select and play audio files or music on your Bluetooth device. -
Page 13: Troubleshooting
11. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this soundbar, check the following points before requesting service. No power • Ensure that the AC cord of the apparatus is properly connected . •... -
Page 14: Specifications
12. Specifications Brand JVB66223 Model Soundbar Power Supply 100-240V~ 50/60Hz 30 W Power Consumption < 0.5 W (StandBy) 500mA Hi-Speed USB (2.0) / FAT32 / FAT16 32G (max) , MP3 Dimension (WxHxD) 1000 x 67 x 105 mm Net weight 3.5 kg... - Page 15 Responsible Disposal At the end of its working life, do not throw this product out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling.
- Page 16 This product is manufactured, distributed, serviced and warranted exclusively by TWG. "JVC" is the trademark of JVCKENWOOD Corporation, used by TWG. under license. The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
