Models STXB, STXBW, STXBRHUL, STXBHP,
Installation, Operation, and Maintenance Manual

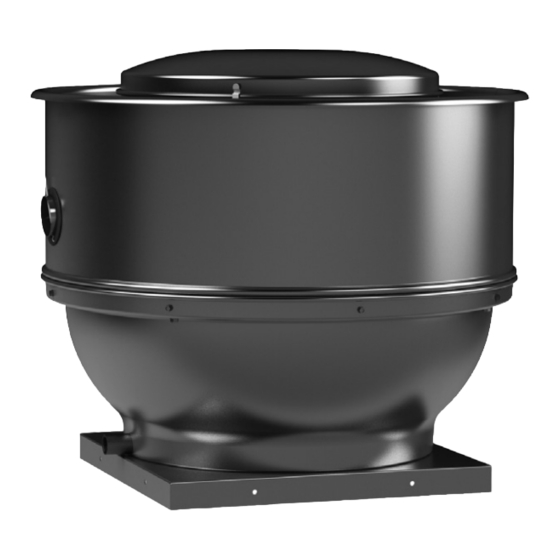

Belt Drive Centrifugal Upblast Roof/Sidewall Exhausters
The purpose of this manual is to aid in the proper installation and operation of fans manufactured by S&P
USA. These instructions are intended to supplement good general practices and are not intended to cover
detailed instruction procedures, because of the wide variety and types of fans manufactured by S&P USA.
6393 Powers Avenue
Jacksonville, FL 32217
P: 800.961.7370
F: 800.961.7379
STXB_STXBW_STXBRHUL_STXBHP_STXB-HT_STXB-HT2_IOM_06062022
STXB-HT, and STXB-HT2
READ AND SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for S&P STXB
Summary of Contents for S&P STXB
- Page 1 ® Models STXB, STXBW, STXBRHUL, STXBHP, STXB-HT, and STXB-HT2 Installation, Operation, and Maintenance Manual Belt Drive Centrifugal Upblast Roof/Sidewall Exhausters READ AND SAVE THESE INSTRUCTIONS The purpose of this manual is to aid in the proper installation and operation of fans manufactured by S&P USA.
-
Page 2: Installation
INSTALLATION, OPERATION AND MAINTENANCE MANUAL INTRODUCTION: DO NOT INSTALL, USE OR OPERATE THIS EQUIPMENT UNTIL THIS MANUAL HAS BEEN READ AND UNDERSTOOD. READ AND SAVE THESE INSTRUCTIONS FOR FUTURE USE. It is the responsibility of the purchaser to assure that the installation and maintenance of this equipment is handled by qualified personnel experienced in such work and equipment. - Page 3 1. CAUTION! This fan contains rotating parts and requires special service. Appropriate safety precautions should be taken during installation, operation and maintenance. 2. WARNING! Do not install or operate this fan in an environment or atmosphere where combustible or flammable materials, gasses or fumes are present, unless it was specifically designed and manufactured for use in that environment.
-
Page 4: Maintenance
Lock out the power source before the installation of all accessories. Fan electrical power can now be applied and special attention should be given to determine if motor is working properly. At this time, with air system in full operation, with guards attached, it is well for the electrician to measure the operating amperage of the motor and compare with the nameplate rating to determine that the motor is operating under safe load conditions. -
Page 5: Bearing Replacement
BEARINGS AND LUBRICATION: All S&P belt drive fan bearings are heavy duty, self-aligning ball type and are relubricable for continuous service. Selection of the correct bearing grease and greasing intervals depends on several things. Extreme high or low temperatures, dirty or damp surrounds, and vibration exceeding 1 or 2 mils are all things that will require more frequent greasing or special greases. - Page 6 V-BELTS: V-belts on S&P belt drive fans are oil, heat and static resistant type, and oversized for continuous duty. With proper installation and maintenance, years of operating efficiency can be added to the life span of the V-belt drive. The condition of V-belts and the amount of belt tension should be checked prior to start-up and at 800 hours. Belt Tension should be checked once a year after the 800 hour check.
-
Page 7: Repair Parts
RECOMMENDED BALL AND ROLLER BEARING GREASES SUGGESTED REGREASING INTERVALS INTERVAL TYPES OF SERVICE 1-2 YEARS INFREQUENT OPERATION OR LIGHT DUTY IN CLEAN ATMOSPHERE 1 YEAR 8-16 HRS/DAY IN CLEAN, RELATIVELY DRY ATMOSPHERE 6 MONTHS 12-24 HRS/DAY, HEAVY DUTY, OR IF MOISTURE IS PRESENT 3 MONTHS HEAVY DUTY IN DIRTY, DUSTY LOCATIONS: HIGH AMBIENTS: MOISTURE LADEN ATMOSPHERE: VIBRATION CAUTION... -
Page 8: Fan Trouble-Shooting Chart
FAN TROUBLE-SHOOTING CHART PROBLEM POSSIBLE CAUSES Excessive Vibration Propeller, wheel or sheaves loose on shaft Belts loose or too tight Out of balance propeller Excessive buildup of dirt/dust on propeller Bent shaft Weak mounting base for fan Fan mounting bolts loose Loose or worn bearings Bearing or drive misalignment Mismatched belts... -
Page 9: Limitation Of Warranty And Liability
WARRANTY: S&P USA warrants STXB, STXBHP, and STXBW to be free from defects in material and workmanship for five (5) years from date of shipment and the STXBRHUL to be free from defects in material and workmanship for two (2) years from date of shipment. Any units or parts which prove to be defective and are reported during the warranty period will be replaced at our option when returned to our factory, transportation prepaid. - Page 10 Replacement Parts Model STXB Sizes 8-48 Motor Bearings Model Motor Cover Wheel Shaft Cover Cap 2 per unit Wind Band STXB 400125 400095 400185 400400 7031 10 607380-2A 400125 400095 400185 400401 7031 10 607380-2A 400126 400096 400186 400402 7031 10...
- Page 11 Addendum A Wheel Inlet should be centered over base inlet SECTION Wheel should overlap the base inlet by .25” to .375” DETAIL B SCALE 1 : 20 SCALE 1 : 2...
- Page 12 ® S&P USA Ventilation Systems, LLC S&P Canada Ventilation Products, Inc 6393 Powers Avenue 6710 Maritz Drive Unit #7 Jacksonville, FL 32217 Mississauga, ON L5W 0A1 - Canada T. 904-731-4711 • F. 904-737-8322 T. 416-744-1217 • F. 416-744-0887 www.solerpalau-usa.com www.solerpalaucanada.com...
