User Manual
v1.0
2024.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zenmuse H30 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji Zenmuse H30 Series

Summary of Contents for dji Zenmuse H30 Series

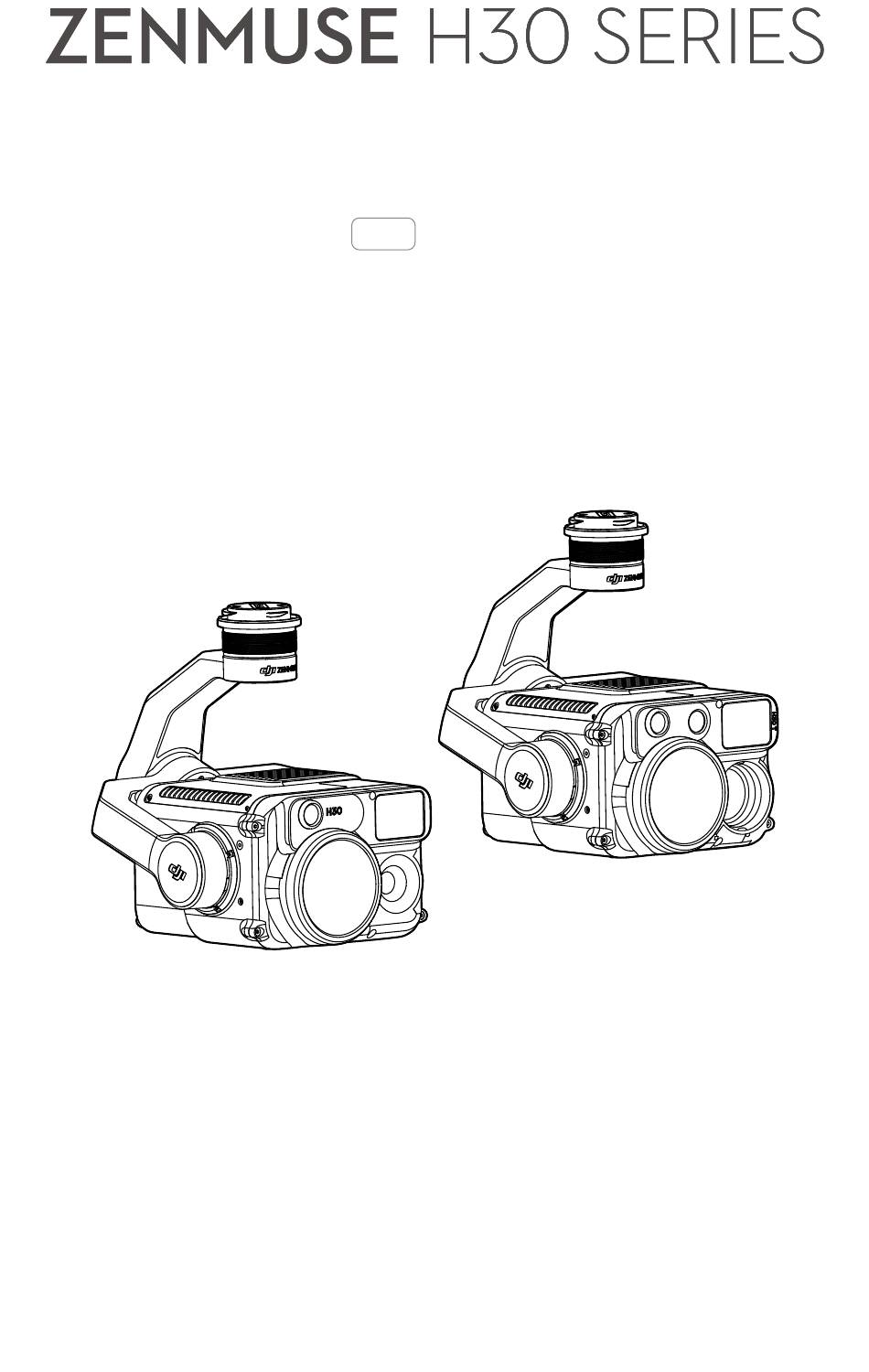

  • Page 1 User Manual v1.0 2024.05...
  • Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI UAV.

  • Page 3: Using This Manual

    ZENMUSE H30 SERIES User Manual Using This Manual Legends Important Hints and Tips Video Tutorials Go to the official website to watch the tutorial videos, which demonstrate how to use the product safely. Warnings When not in use, store the ZENMUSE...

  • Page 4: Table Of Contents

    Setting the Shooting Mode Camera Functions Visible Light Camera Infrared Thermal Camera General Settings Maintenance Log Export Firmware Update Using DJI Pilot 2 Using microSD Card Update Status Alarm Appendix Specifications Infrared Parameters Palettes Emissivity   © 2024 DJI All Rights Reserved.

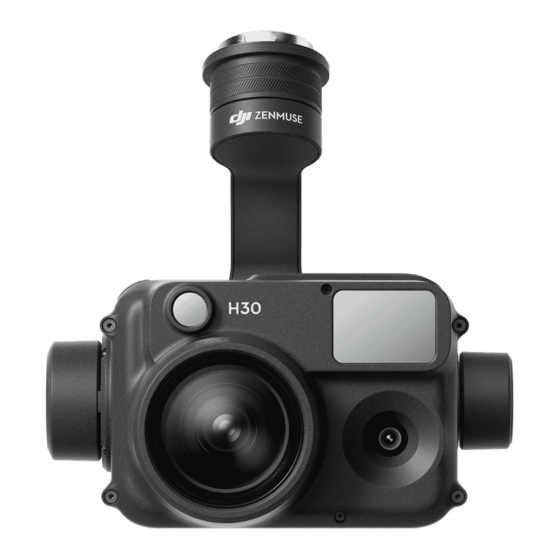

  • Page 5: Product Profile

    H30T also features a long-wave infrared thermal camera, which can capture thermal images. With a 3-axis stabilized gimbal, the H30 series can be used with compatible DJI aircraft and stream live video to the DJI PILOT 2 App.

  • Page 6: Installation

    Installation H30 series can be mounted to MATRICE 350 RTK and Matrice 300 RTK aircraft (requires DJI RC Plus). The H30 mounted to the Matrice 350 RTK aircraft is used as an example. Remove the gimbal cap and lens protector.

  • Page 7: Activation

    Activation The Zenmuse H30 series requires activation via DJI Pilot 2 before first use. Mount it on the aircraft, then power on the aircraft and remote controller and follow the on-screen instructions to activate using the DJI Pilot 2 app.

  • Page 8: Dji Pilot 2 App

    Zoom Camera After tapping Enter Camera View on the home screen of DJI Pilot 2 and completing the Preflight Check, users will be directed to the camera view. Below is an illustration using the zoom camera as the main view on the remote controller.
  • Page 9 ZENMUSE H30 SERIES User Manual Night Scene Tap to enable or disable Night Scene mode. Enhanced Noise Reduction, IR Light, and NIR Illumination are available when Night Scene mode is enabled. Refer to the Using the Camera section for details.
  • Page 10 ZENMUSE H30 SERIES User Manual 19. Map View Tap to display the map view on the screen. Users can maximize or minimize the view. 20. Laser PinPoint Press the L3 button on the remote controller to add a PinPoint in the center of the screen.

  • Page 11: Wide-Angle Camera

    28. Status of Photo/Video Upload to Cloud Displays the file upload status from DJI Pilot 2 to DJI FlightHub 2 or the live stream connection status. Tap to view the details. If the DJI FlightHub 2 cloud service is enabled, users can quickly configure the media file upload settings.

  • Page 12: Infrared Thermal Camera

    ZENMUSE H30 SERIES User Manual Infrared Thermal Camera* This section mainly sets out the differences with the zoom camera. Refer to the Zoom Camera section for more details. 32 3334 31. Palette/Isotherm The numbers in the two ends of the chroma bar display the highest and lowest temperature measurement values.
  • Page 13 ZENMUSE H30 SERIES User Manual 33. Single/Side-By-Side View Toggle Tap to enable or disable side-by-side view. When enabled, both the infrared and zoom view will be displayed side by side. 34. FFC Calibration Tap to perform FFC calibration. FFC calibration is a function of the infrared thermal camera that optimizes image quality for easy observation of temperature changes.

  • Page 14: Using The Camera

    ZENMUSE H30 SERIES User Manual Using the Camera Setting the Shooting Mode Tap the Photo/Video Mode button to select different shooting modes. Smart Capture Smart Capture mode allows the camera to automatically adjust parameters based on different scenes and lighting conditions to achieve higher-quality photo results. However, the shooting speed may be slower compared to Single Shot mode.

  • Page 15: Camera Functions

    ZENMUSE H30 SERIES User Manual Camera Functions Visible Light Camera The functions below are available when the camera view is the zoom or the wide-angle camera view. Night Scene Night Scene mode can optimize imaging in low-light environments. The setting applies to both the zoom camera and the wide-angle camera.

  • Page 16: Infrared Thermal Camera

    ZENMUSE H30 SERIES User Manual Infrared Thermal Camera When the main screen shows the infrared thermal camera view, tap to enter camera settings to enable the functions below. Region of interest (ROI) Users can select the ROI according to the scene and their requirements.

  • Page 17: General Settings

    ZENMUSE H30 SERIES User Manual Air humidity: Temperature and humidity resistance has been calibrated before delivery, but extreme humidity levels will affect measurement accuracy. So you can set the humidity of current environment to improve the accuracy. Temperature: When selecting Auto, the temperature value detected by the sensor will be used.

  • Page 18: Maintenance

    ZENMUSE H30 SERIES User Manual Maintenance Log Export Run DJI Pilot 2, tap HMS, then Manage Logs, and select H30 or H30T to export the log to the microSD card of the payload. Firmware Update Using DJI Pilot 2 Online Updating Make sure that the payload is correctly installed on the aircraft and the aircraft, remote controller, and other DJI devices are powered on.

  • Page 19: Update Status Alarm

    Updating firmware. Do not stop update. 1 long beep followed by 2 Firmware update successful. short beeps Firmware update failed. Try again. Contact DJI support if the Continuous long beep problem persists. • Make sure that there is only one firmware update file on the microSD card.

  • Page 20: Appendix

    H30: 26 W H30T: 28 W IP Rating IP54 Supported Aircraft Matrice 350 RTK Matrice 300 RTK (requires DJI RC Plus) Operating -20° to 50° C (-4° to 122° F) Temperature Storage Temperature -20° to 60° C (-4° to 122° F)
  • Page 21 ZENMUSE H30 SERIES User Manual AE Lock Supported Electronic Shutter 1/8000-2 s Speed ISO Range Single Shot: 100-25600 Night Scene: 100-819200 Video Resolution Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps Video Format Video Caption Supported Video Codec and Bit H.264, H.265...
  • Page 22 ZENMUSE H30 SERIES User Manual Infrared Thermal Camera (H30T only) Thermal Imager Uncooled VOx Microbolometer Lens Focal length: 24mm (equivalent: 52mm) Aperture: f/0.95 DFOV: 45.2° Digital Zoom 32× Equivalent Video Resolution 1280×1024@30fps Video Format Video Caption Supported Video Codec and Bit...
  • Page 23 (with an angle of incidence of approx. 0.2 radians). [4] Zenmuse H30 series supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.

  • Page 24: Infrared Parameters

    ZENMUSE H30 SERIES User Manual Infrared Parameters Palettes Distinct colors are used to show temperature differences in the thermal image using grayscale intensity. The temperature range of the image is mapped to 256 colors and displayed in the 8-bit JPEG or MP4 format. The infrared thermal camera offers a variety of palette options, the table shows all palette options.

  • Page 25: Emissivity

    ZENMUSE H30 SERIES User Manual Similar to Medical, it reduces the warm color ratio and increases the cold color Rainbow 1 ratio for high temperature targets to better show the details of cool targets. The color transition is reduced and the warm and cold colors are moderately...
  • Page 26 DJI SUPPORT This content is subject to change. https://enterprise.dji.com/zenmuse-h30-series/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI and ZENMUSE are trademarks of DJI. Copyright © 2024 DJI All Rights Reserved.
