Summary of Contents for dji FPV Goggles

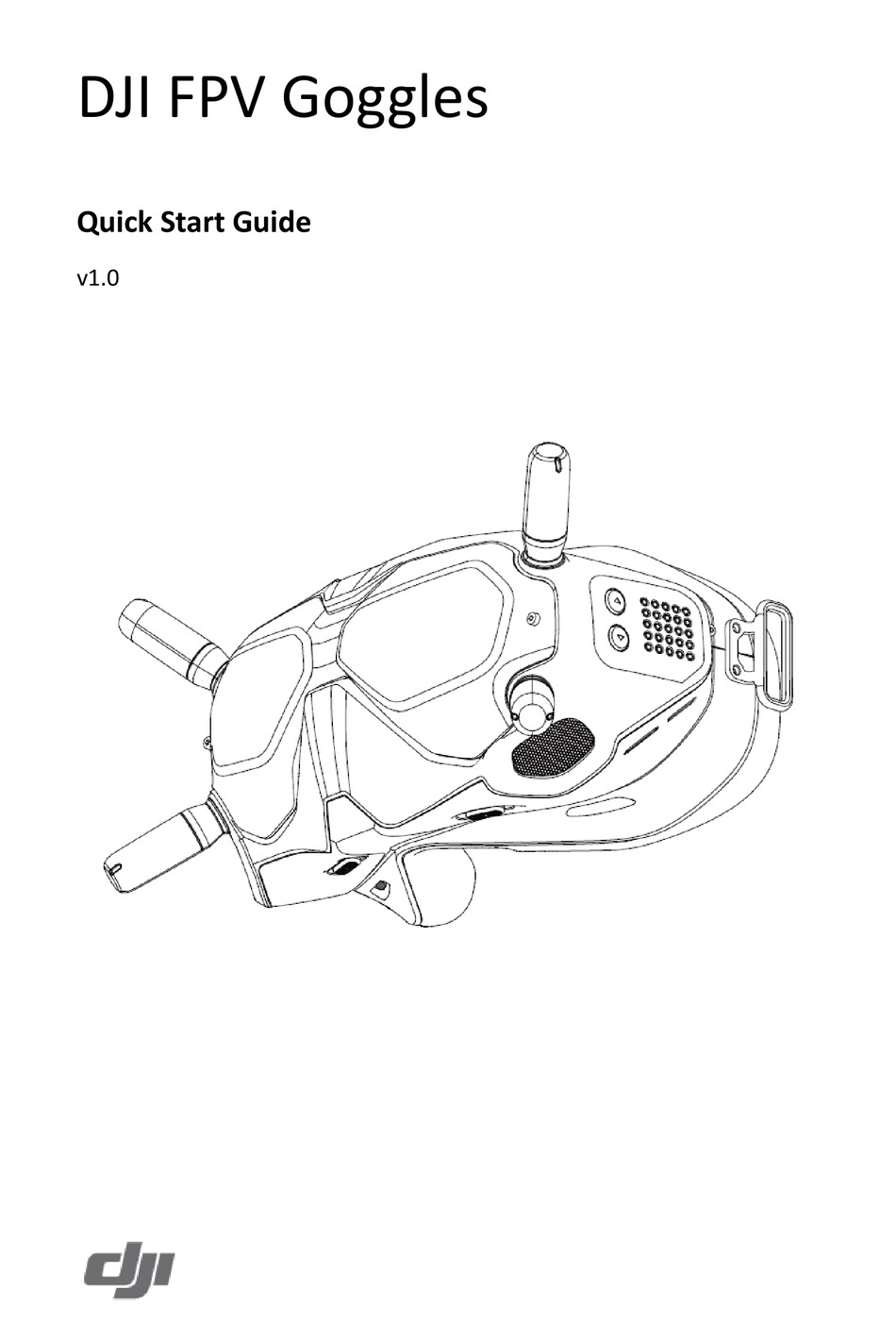

- Page 1 DJI FPV Goggles Quick Start Guide v1.0 ...
- Page 2 DJI FPV Goggles The DJI FPV Goggles are equipped with a high‐performance display and DJI HD Low Latency (HDL) FPV transmission technology, with a transmission range of up to 4 km and a minimum end‐to‐end latency that is within 28 ms*. When used with a racing drone equipped with the DJI FPV Air Unit, users can enjoy a first‐person view of their aerial experience in real time. The ...
- Page 3 16. 3.5mm Audio Port 17. Power Port (DC5.5‐2.1) 18. Link Button * The end‐to‐end latency is the total time from camera input to screen display. The DJI FPV Goggles can reach their maximum transmission distance (FCC) in a wide open area with no electromagnetic interference, achieving minimum latency in 720p120 live view mode. ** There are up to eight channels for the goggles depending on the region (FCC: eight, CE/SRRC: ...
- Page 4 Installing the Headband Wearing the Goggles Adjusting the Interpupillary Distance ...
-
Page 5: Power Supply
Power Supply Use the power cable (included) to connect the power port of the goggles to an external power supply. Activation When powered on, connect the goggles to a computer and run DJI Assistant 2 for activation. Download DJI Assistant 2 at https://dji.com/xxx#downloads Linking 1. Power on the air unit and the DJI FPV Goggles. 2. Press the link button on the air unit and the goggles.* 3. The linking status indicator of the air unit turns solid green. The goggles stop beeping when successfully linked and the video display is normal. * When ready to link, the devices will give the following indication: Air unit: the linking status indicator turns solid red. Goggles: the goggles beep continually. If you need to use the DJI FPV Goggles and remote controller together, the air unit must be ... - Page 6 linked to the goggles before the remote controller. Controls 5D Button Back Button Record Button Toggle to scroll through Press to return to the Press to start or stop video the menu. previous menu or exit the recording. Press to confirm. current mode. Channel Adjustment Buttons Press to switch channels. Channel Display Displays the current channel. ...
-
Page 7: Specifications
Specifications Weight 410 g (headband and antennas included) Dimensions 202 × 110 × 126 mm 2 × 2 in Screen Size Screen Resolution 1440×1600 (effective 1440×810) (Single Screen) Communication 5.8 GHz Frequency Live View Mode 720p120, 720p60 Video Format MP4 (H.264); Audio codec format: AAC Supported Video Play MP4, MOV, MKV Format (Video format: H264; Audio format: AAC‐LC, AAC‐HE, AC‐3, MP3) Operating Temperature 32° to 104° F (0° to 40° C) Power Input 7.4‐17.6 V ... -
Page 8: Compliance Information
Compliance Information FCC/ISEDC Compliance Notice This device complies with Part 15 of the FCC Rules and ISEDC licence‐exempt RSS standard. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received,including interference thatmay cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Cet appareil est conforme à la partie 15 des règles de la FCC et à la norme RSS exonérée de licenceISEDC. ... - Page 9 RF Exposure Information This device(DJI FPV Goggles; model P1GS) had been tested in accordance with the measurement methods and Procedures specified in IEEE1528 and IEC 62209 and it is compliance with the SAR for un‐controlled FCC and ISED exposure limits. This device and its antenna(s) must not be co‐located or operating in conjunction with any other antenna or transmitter. Informations sur l'exposition RF Ce dispositif (DJI FPV Goggles; modèle P1GS) a été testé conformément aux méthodes de mesure et aux procédures spécifiées dans IEEE1528 et CEI 62209 et il est conforme à la SAR pour les limites d’exposition FCC et ISED non contrôlées. Cet appareil et son (ses) antenne (s) ne doivent pas être co‐localisés ou fonctionner en ...
