Installation AND
OPERATING INSTRUCTIONS
Handling
technology
HM1000 series
magnetic gripper
THE KNOW-HOW FACTORY
Advertisement
Table of Contents
Related Manuals for Zimmer HM1000 Series
Summary of Contents for Zimmer HM1000 Series

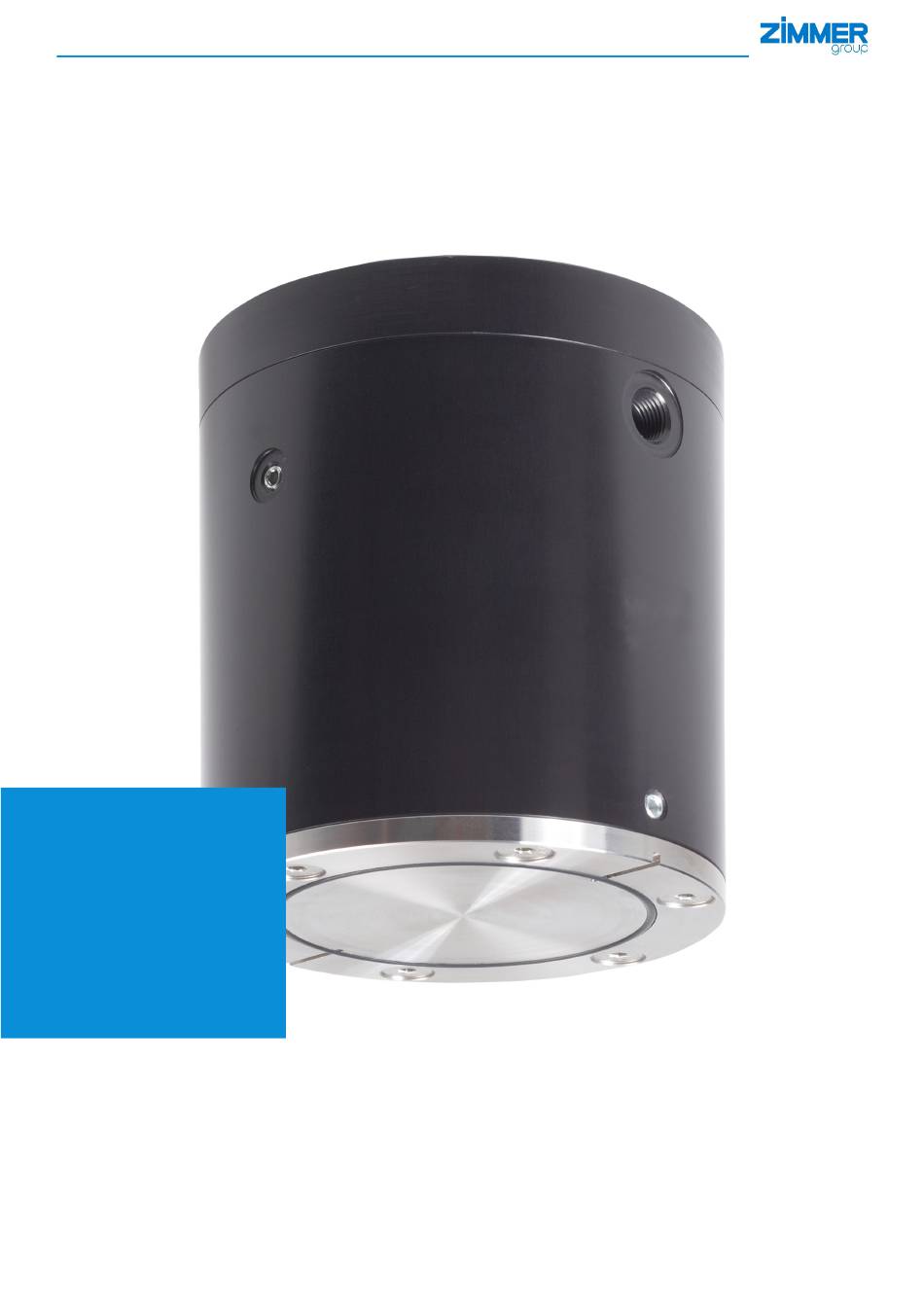

- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Handling technology HM1000 series magnetic gripper THE KNOW-HOW FACTORY...
- Page 2 Zimmer GmbH accepts no liability for any damage caused by improper use The magnetic grippers of the HM1000 series are based on the effect of a permanent magnet. This gripper may only be used to handle workpieces made of ferromagnetic materials. Handling workpieces that generate their own active electromagnetic field or themselves act as a permanent magnet may lead to malfunctions and therefore is regarded as improper use.
- Page 3 20H7 Threaded stem Ø M10 x 13.5 *1) Please always compare the technical data with the corresponding tables on the Internet at www.zimmer-group.de! 5. Installation ► The dimensions for a particular mounting piece can be taken from the drawings on the product data sheets.
- Page 4 ► Close the now open hole with the included dummy plug 6. Maintenance ► The magnetic grippers of the HM1000 series are maintenance-free for up to 5 million gripping cycles. Even though the magnetic grippers are, as mentioned, maintenance-free, perform a regular visual inspection to check for any corrosion, damage and contamination.
