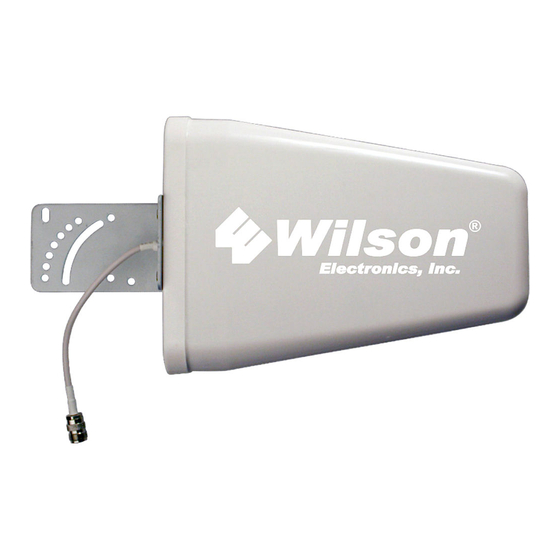

- Page 1 Antenna Installation Guide 700 MHz - 2700 MHz Wide Band Directional Antenna PART# 304411 304475 Features: 308412 • High-gain • Directional • Pipe mounting hardware included • Installs easily • Weather resistant • Wide bandwidth...
- Page 2 How It Works Wilson Electronics Wide Band Log Periodic Directional Antenna will collect the cell tower signal and send it through the cable to a signal booster, cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to a signal booster or directly to the antenna and broadcast back to the cell tower.
- Page 3 Ultra low loss coax is recommended for lengths 20’ or greater to prevent significant signal loss. Wilson Electronics offers cable in several lengths from 20-1000 feet. Wilson Electronics also offers a wide range of phone adapters to connect your cell phone to a...
- Page 4 Horizontal Beamwidth 70° to 90° Vertical Beamwidth 85° to 110° F/B ratio >20 dB Nominal Impedance 50 Ω - 304411 • 75 Ω - 304475 Polarization Vertical Maximum Power 100 watts Connector 50 Ω - N-Female • 75 Ω - F-Female Dimension 11.42”...
