ADDAC813 Assembly Guide

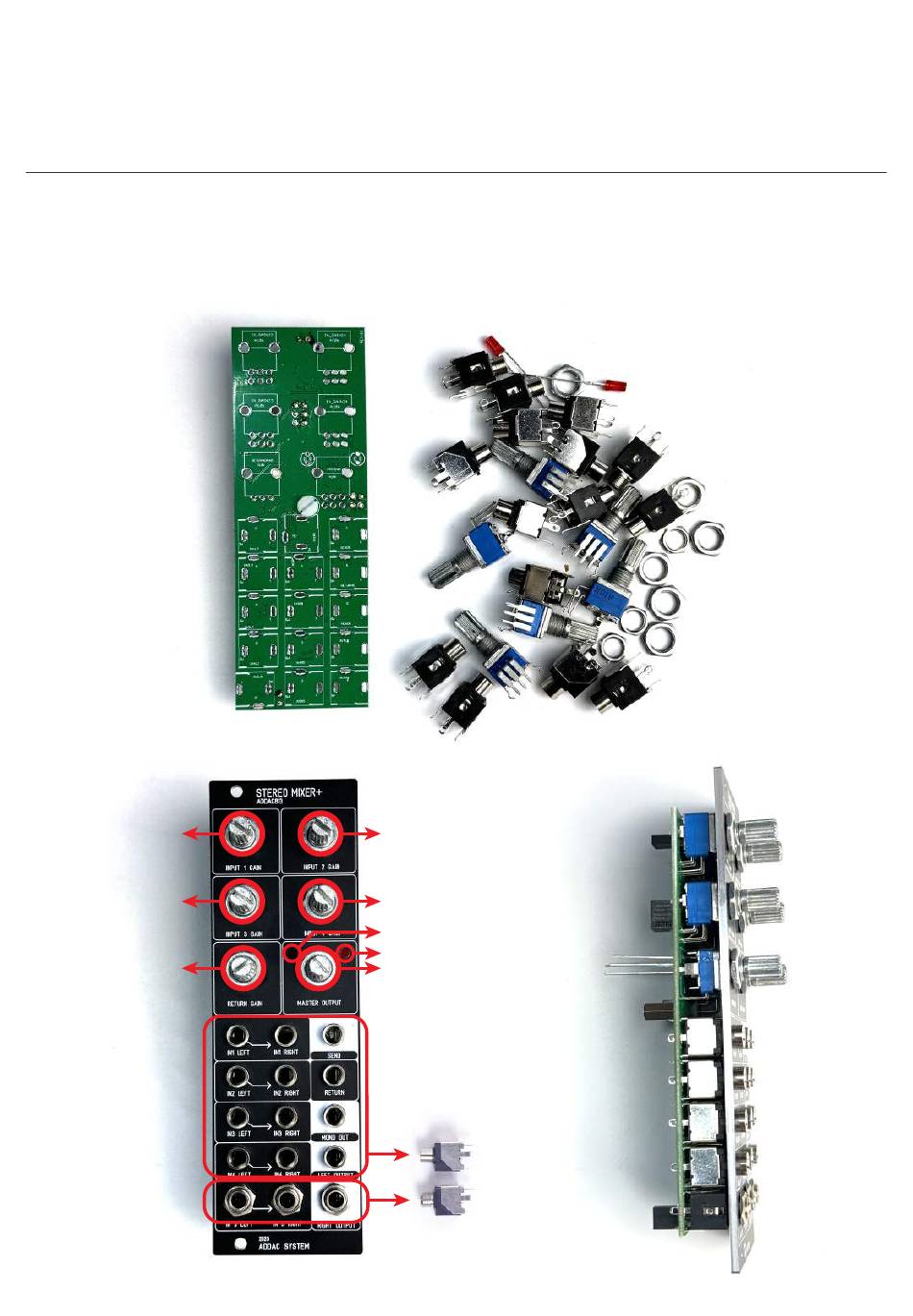

STEP 7:
Proceed by placing all parts in the pcb and then attach the frontpanel using the nuts to secure
everything in place.
Notice all parts' details below, make sure the panel is parallel to the pcb, it's recommended to
slightly raise the potentiometers from the pcb to get the best result.
DUAL A10k
DUAL A10k
B10k = 103
ADDAC SYSTEM
DUAL A10k
DUAL A10k
LED
LED
DUAL A10k
Non-threaded
Jacks
Threaded
Jacks
