LAVAZZA MAESTRO TOUCH Cleaning Manual page 9

Disassemble and sanitise the components of the unit every
500 tea selections, every month or according to use
conditions.

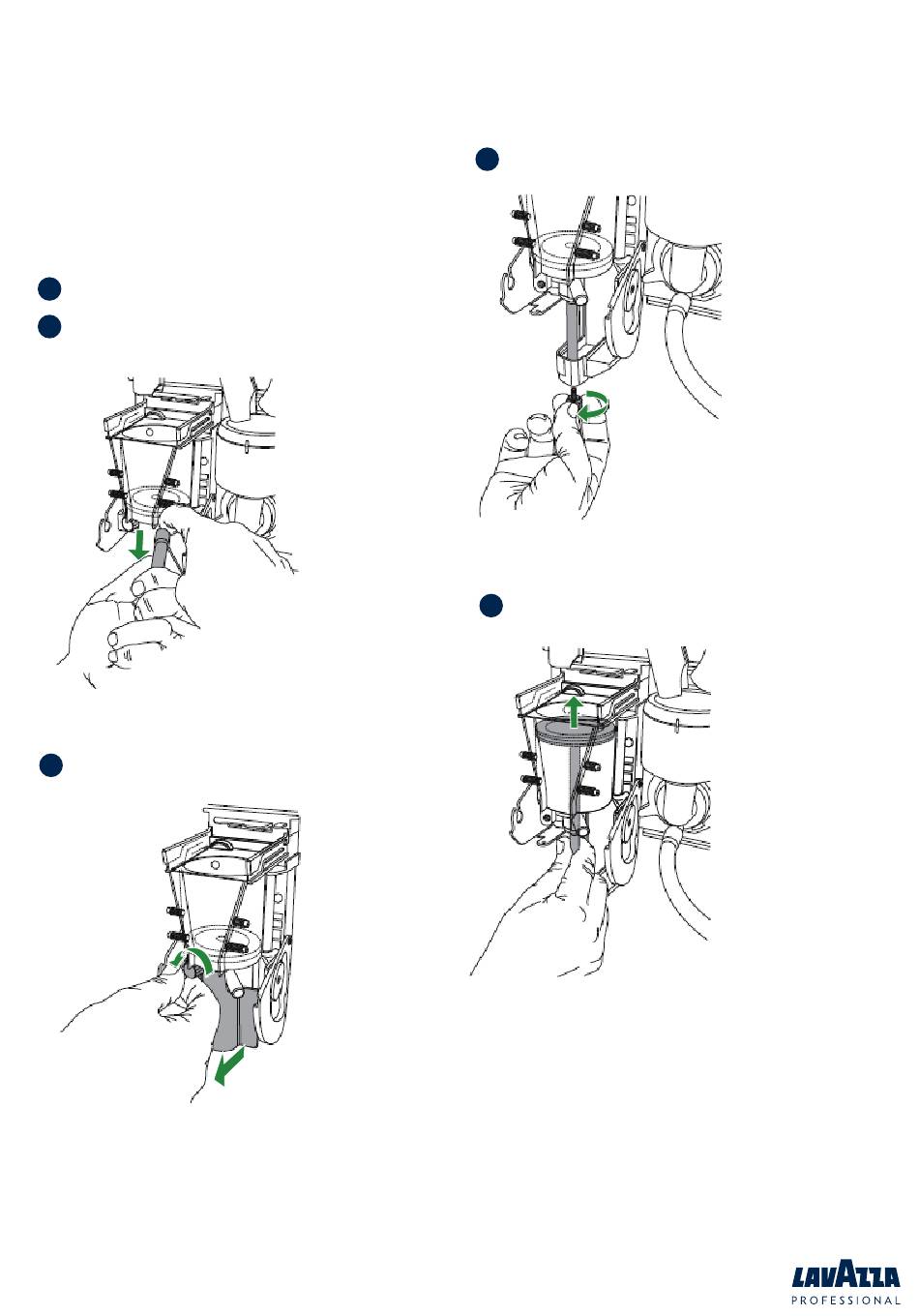

Disassemble and clean components
Act as follows:
Remove conveyor, scraper and scraper support
1
Detach the tube
2
Unscrew the knurl intended to secure the piston stem cover.
3
Unscrew the piston stem knurl.
4
Lift the piston so as to reach the top dead centre.
5
