LB3200 Colibri
NFOR
The mains option requires a cold drinking water supply within 2m. This should be from an accessible, non
return, water shut off tap fitted with a 1/2" BSP male fitting. 2m of John Guest water line is supplied which is
cut as needed for the supply to the machine.
The tank option needs only electrical power. Be aware if a base cabinet is required, the water tank will need
locating externally if a changegiver is fitted. For a base unit with a coin acceptor, the tank is fitted inside the
base cabinet.
The only electrical requirement is for a 10A switched socket to be within 2m of the machine location
BLUEPOD TECHNICAL SERVICE
Copyright Bluepod Coffee Co Pty Ltd
Installation requirements
Plumbing

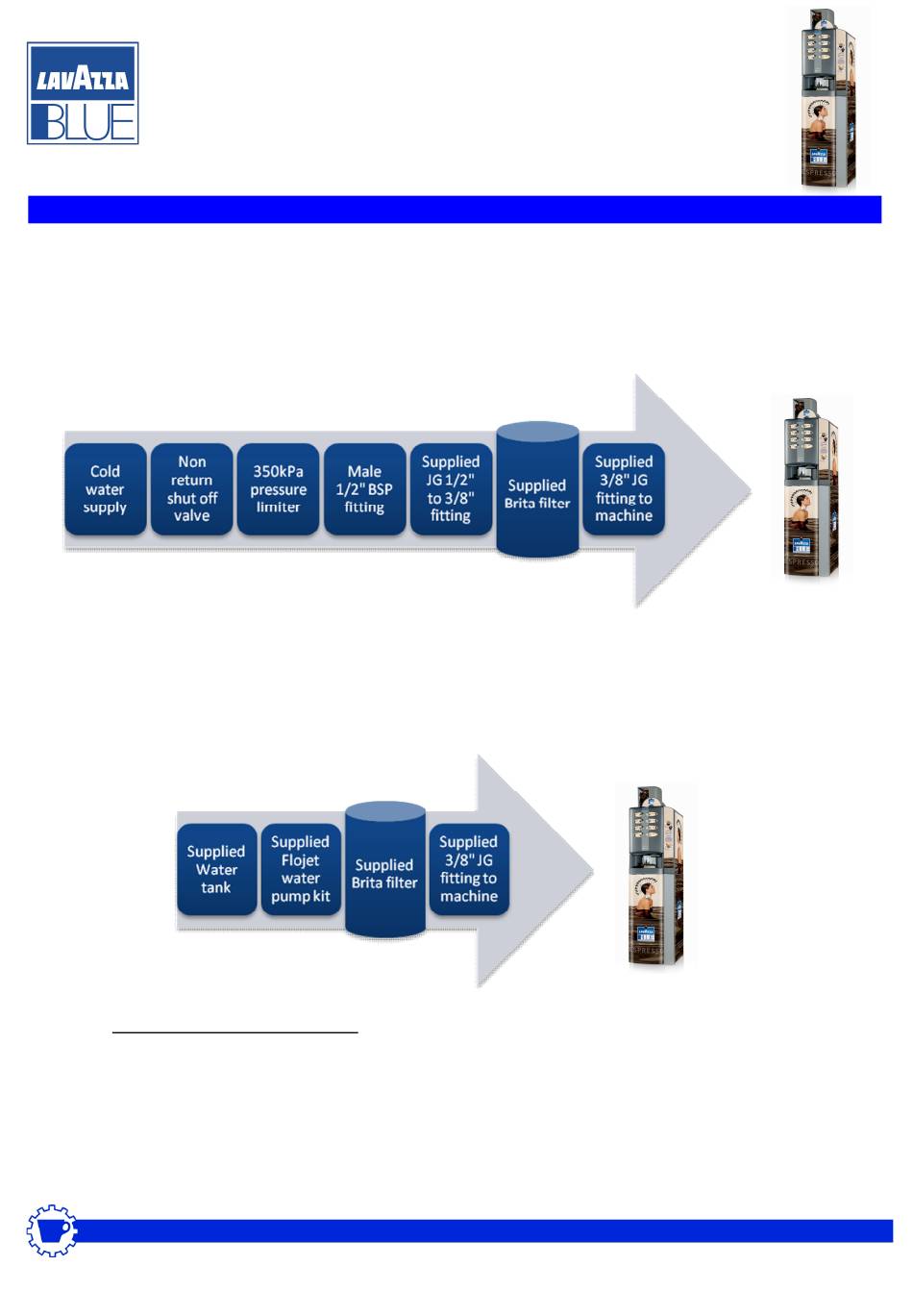

There are 2 plumbing configurations, mains fill and tanked supply:
1: Mains fill
2: Tank fill
Electrical
DATE OF ISSUE: 07/02/2011
Tel: 1800 800 255 Email: technical@bluepod.com.au
Page 1 of 1

Advertisement

loading

Related Manuals for LAVAZZA LB3200 Colibri

Summary of Contents for LAVAZZA LB3200 Colibri

  • Page 1 Installation requirements LB3200 Colibri DATE OF ISSUE: 07/02/2011 NFOR Plumbing There are 2 plumbing configurations, mains fill and tanked supply: 1: Mains fill The mains option requires a cold drinking water supply within 2m. This should be from an accessible, non return, water shut off tap fitted with a 1/2”...
  • Page 2 NFORMATION NO: 007 Self Fill Lavazza Colibri with changegiver Congratulations on choosing to drink great coffee using the unique Lavazza pod vending system. The machine is easy to use. Follow the simple steps listed here and your organization will enjoy great tasting coffee every day.

  • Page 3: Initial Installation

    Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Initial installation Each customer is aware before delivery of requirements for plumbing and power. Mains supply Locate all parts for your configuration as listed above. Connections between these components are to be made using the blue John Guest water line included. 2m is supplied in the base cabinet, cut to length as needed.
  • Page 4 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 1. Plan the installation. In particular, the Brita filter (A) supplied must be used to ensure the long term reliability of the machine. 2. The filter must be located between the mains water outlet and the machine.
  • Page 5 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 4. The filter must be flushed before use. This is achieved using the small grey rubber discharge hose inside the filter head unit (C). Remove this from its storage location in- side the head (B) before mounting.
  • Page 6 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Initial Setup after installation Ensure the electricity supply is OFF and the water supply is ON Machines are supplied with a Brita water filter, this must be fitted and flushed before using the machine. Do not proceed further until this is carried out.
  • Page 7 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Remove the metal bar from the stirrer mechanism (2). Slide a pack of wrapped stirrers in. Place a finger on top of the stirrer pack. While applying light pressure, tear and remove the paper band completely. Replace metal weight on top of stirrers.
  • Page 8 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 11. Open the lower metal base cabinet door with the round key, ensure the clear plastic drip tray hose (A) and waste container float/chain (B) are placed within the white waste water container (C) 12.
  • Page 9 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Daily Action Check/refill pods in the hopper. Check/refill the powder canisters as necessary. Check/refill cups and stirrers. Clean the drip tray by removing, wash and reinsert. Clean and wipe the exterior.
  • Page 10 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 WEEKLY CLEANING CYCLE The following should be carried out each week (or more often at busy sites) to maintain the high reliability of the machine: Open the machine door, place the yellow service key into the slot at the top centre of the machine, and turn the key 90 degrees clockwise.
  • Page 11 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 On the inside of the door are 2 buttons, the left button is the rinse button. Ensure the display reads “Ready for use”. Press the rinse button, this will rinse the mixing bowl and pipes as well as rinsing the filter in the coffee brew unit.

  • Page 12: Problem Solving

    Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Problem Solving LCD display shows “out of order” - Press any button on the front of the machine, after a short delay, the LCD will display a failure reading. If the error is not reflected on the list below, visit our support website www.bluepod.com.au/support...
  • Page 13 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Change Giver Problem Solving Machine not registering money on the LCD screen? Money dropping straight through? Machine giving incorrect change? For issues like these, please open the lower cabinet and locate the coin mechanism on the inside of the door.
  • Page 14 NFORMATION NO: 007 Self Fill Lavazza Colibri no changegiver Congratulations on choosing to drink great coffee using the unique Lavazza pod vending system. The machine is easy to use. Follow the simple steps listed here and your organization will enjoy great tasting coffee every day.
  • Page 15 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Initial installation Each customer is aware before delivery of requirements for plumbing and power. There are 2 plumbing configurations, mains fill and tanked supply: Mains Tanked Locate all parts for your configuration as listed above. Connections between these components are to be made using the blue John Guest water line included.
  • Page 16 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 1. Plan the installation. In particular, the Brita filter (A) supplied must be used regardless of mains or tank fill. 2. It must be located between the mains water outlet/Flojet pump outlet and the machine.
  • Page 17 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 3. The filter must be flushed before use. This is achieved using the small grey rubber discharge hose inside the filter head unit (C). Remove this from its storage location in- side the head (B) before mounting.
  • Page 18 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Initial Setup after installation Ensure the electricity supply is OFF and the water supply is ON Machines are supplied with a Brita water filter, this must be fitted and flushed before using the machine. Do not proceed further until this is carried out.
  • Page 19 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Remove the metal bar from the stirrer mechanism (2). Slide a pack of wrapped stirrers in. Place a finger on top of the stirrer pack. While applying light pressure, tear and remove the paper band completely. Replace metal weight on top of stirrers.
  • Page 20 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 11. If your machine has a metal base cabinet, ensure the clear plastic drip tray hose (A) and waste container float/chain (B) are placed within the white waste water contain- er (C) 12.
  • Page 21 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Daily Action Check/refill pods in the hopper. Check/refill the powder canisters as necessary. Check/refill cups and stirrers. Clean the drip tray by removing, wash and reinsert. Clean and wipe the exterior.
  • Page 22 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 WEEKLY CLEANING CYCLE The following should be carried out each week (or more often at busy sites) to maintain the high reliability of the machine: Open the machine door, place the yellow service key into the slot at the top centre of the machine, and turn the key 90 degrees clockwise.
  • Page 23 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 On the inside of the door are 2 buttons, the left button is the rinse button. Ensure the display reads “Ready for use”. Press the rinse button; this will rinse the mixing bowl and pipes as well as rinsing the filter in the coffee brew unit.
  • Page 24 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Problem Solving LCD display shows “out of order” - Press any button on the front of the machine, after a short delay, the LCD will display a failure reading. If the error is not reflected on the list below, visit our support website www.bluepod.com.au/support...
  • Page 25 Installation and Setup LB3200 Colibri DATE OF ISSUE: 27/01/2011 Machine display reads "Water failure" - Ensure water supply to machine is on and that water has not been shut off to the entire building. If your machine runs from a tank, check/refill. If the tank was empty, the machine may need restarting 2-3 times to prime the pump.

  • Page 27: Technical Specifications

    TECHNICAL SPECIFICATIONS DIMENSIONS Height Height with container Width Depth Overall depth with door open Height of cabinet Weight Fig. 2 Power supply voltage Power supply frequency Installed power 1300...
