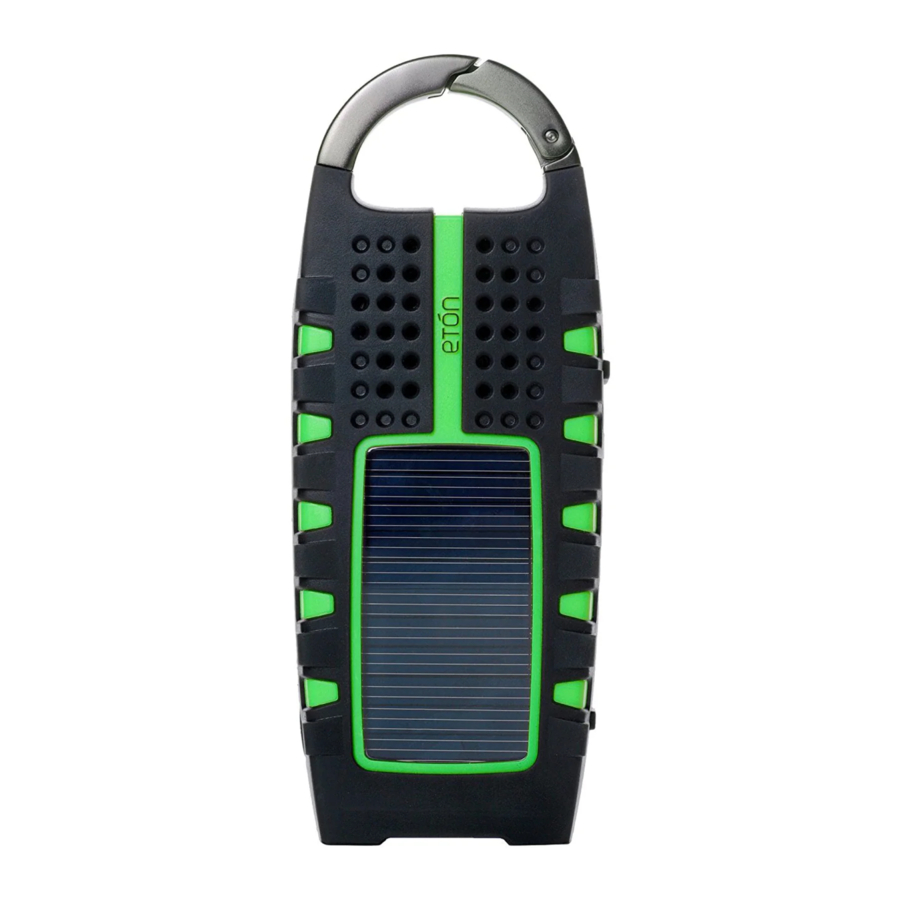

Eton scorpion II - Digital Radio Manual

FEATURES

1. Flashlight ON/OFF
2. Tune up
3. Tune down
4. Power ON status LED
5. Battery Charge Indicator
6. Volume up
7. Volume down
8. Mode selector
9. Radio Power ON/OFF

This Product is IPX-4 Splashproof
Water resistant to IEC60529 IPX4. It is not waterproof and should not be submerged in water.

KEY OPERATIONS

POWER
Press POWER button to turn on the unit press again to turn off.

Selecting Mode
Press M button to choose WB, FM or AM listening or cell phone charging mode. Scroll up/down on tuning buttons to tune into your radio station. To select WB station for your area. Scroll up/ down tuning buttons until you hear weather information for your area.

VOL ▲/ VOL ▼
Press VOL +/- to increase/decrease volume level, press and hold to speed up adjustment.

TUNING ▲ / TUNING ▼
In [Radio mode], press TUNING ▲/▼ to adjust frequency, press and hold it to auto tune into the next available station.

LIGHT Operation
Press LIGHT button once to turn on the flashlight, press it again to turn off.

CELL Phone Charging
Plug your phone's USB charging cable into the USB out port on the Scorpion II and plug the other end into your phone. Press and release M button until 'CELL' appears on the screen to start charging. Press M button again to stop charging and re-enter radio mode.
Note: The radio will turn off while you are charging your phone.

EARPHONE JACK

Plug in earphones (not included). A mono signal is sent to both the left and right channels of the headphones.

SETTING THE CLOCK

1. Press and hold "M" button

2. Press ▲ to change hour

3. Toggle to minutes by pressing "M" button

4. Press ▲ to change minutes


12 HOUR TO 24 HOUR

1. Press and hold "M" button until the hours digits begin to flash.
2. Press and release the "M" button two times, the number "12" will be displayed.

3. Press ▲ button to toggle between "12" and "24" hour time mode

4. After 5 seconds, clock will be set.

SCORPION II POWER OPTIONS

800 mAh Lithium Battery
Charge the lithium battery via the included micro-USB cable. Both the solar panel and the crank will automatically charge to the lithium battery.

Solar Charging
When placed in sunlight, it will automatically start charging the lithium battery. Battery indicator on screen will show unit is charging.

Crank Charging
Crank for 4 minutes to get 1 minute of talk time on most smart phones or 10-15 minutes of radio time.

• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Only operate within specified temperature range (0°C to 40°C).
• Unplug immediately if liquid has been spilled or any object has fallen into the apparatus.
• Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.
• Unplug and disconnect external antennas during lightning storms.
• Do not remove cover [or back].
• Refer servicing to qualified service personnel.

NEED HELP?
Check our website for FAQ's for the SCORPION II.
www.etoncorp.com

OR CONTACT US
Etón Corporation
1015 Corporation Way, Palo Alto, CA 94303, USA
1-800-872-2228 (U.S.)
650-903-3866 (worldwide)
M-F, 8:00AM-4:30PM, Pacific Standard Time
www.etoncorp.com
