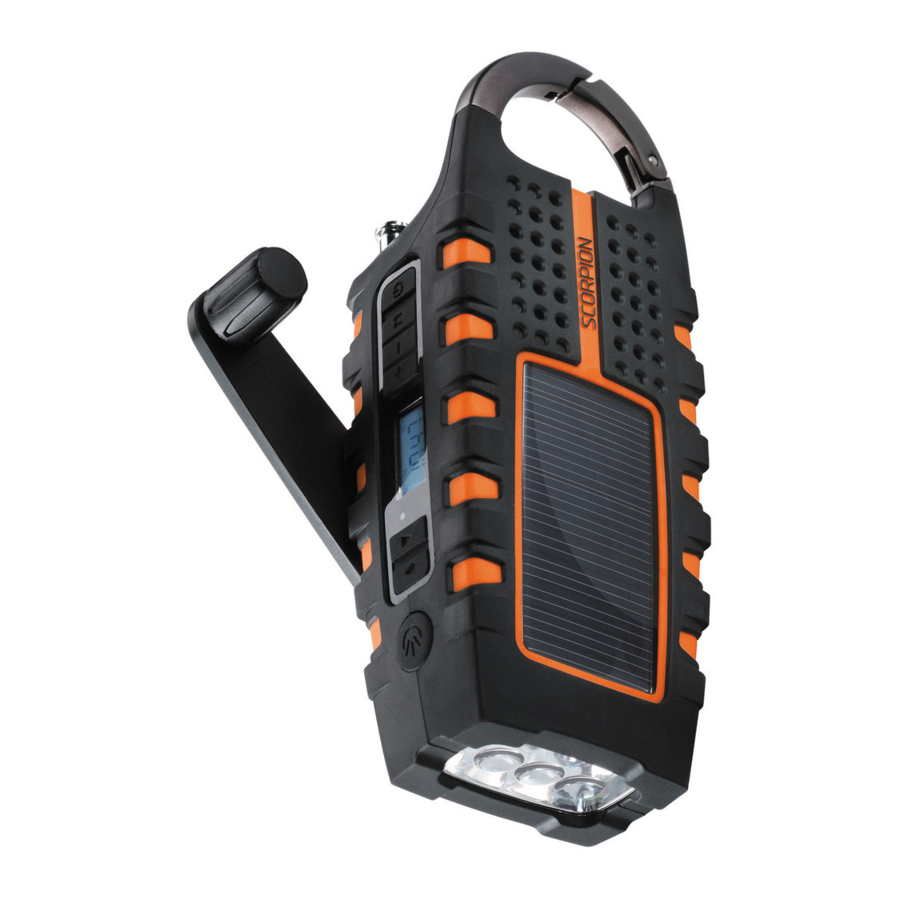

Eton scorpion - Digital Radio Manual

Solar-Powered, All-Terrain, Multi-Function Unit with Digital Radio, Audio Line Input, and Carabiner

FUNCTION KEYS

1. Flashlight ON/OFF
2. Tune up
3. Tune down
4. Power ON status LED
5. Battery Charge Indicator
6. Volume up
7. Volume down
8. Mode selector
9. Radio Power ON/OFF

This Product is IPX-4 Splashproof
Protected against spraying water from all angles at 10 liters/min at a pressure of 80-100kN/m2 for 5 min

TURNING THE UNIT ON AND OFF

Turn the Scorpion on and off by pressing the POWER button.

ADJUSTING THE VOLUME

Use the "Up" and "Down" buttons to set VOLUME control to the desired level.

POWER SOURCES

1. Rechargeable battery pack
2. DC input power adapter (sold separetely)

DYNAMO POWER

Crank charging it for 90 seconds will allow it to play for about 5 minutes, at low volume. If you crank for a longer period, it will play longer.

SOLAR POWER

When solar charging the radio, place it into direct sunlight (not through a window, screen, in artificial light or in shade) for 8 to 10 hours to get a full charge, after which it should play for about 4 to 5 hours, at low volume.

SETTING THE CLOCK

1. Press and hold "M" button

2. Single press to change hour

3. Toggle to minutes by pressing "M" button

4. Single press to change minutes


12 HOUR TO 24 HOUR

1. Press and hold "M" button


Single press to toggle until display reads "12"

CELL PHONE CHARGING

To charge a cell phone you must put the Scorpion into cell phone charging mode. To do this, turn the Scorpion on and then press the M button over and over until you see the clock with CELL in the lower right corner. Then turn the crank for about 10 minutes to charge the phone enough to make one or two short, emergency calls.

If your cell phone has a USB charging cord, you can use it. If not, you can purchase one from www.iGo.com, or call 1-888-205-0093. To purchase a charging tip and cord for your cell phone, go to www.iGo.com, or call 1-888-205-0093 for USB charging cable model# PS00271-0003. Have the brand and model of your cell phone ready when purchasing a cell phone tip.

USING THE LIGHT

Turn the light on and off with the light switch button, located on top of the unit, near the light.

EARPHONE JACK

Plug in earphones (not included). Sound is heard from both sides in monaural (mono).

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt. You may use one of the following options to register your product:

1. By visiting our website at www.etoncorp.com.
2. Mail in enclosed warranty card.
3. Mail your registration card or information to the following address. Include your name, full mailing address, phone number, model purchased, date purchased, retail vendor name and product serial number (typically located in or near the battery compartment):
   Etón Corporation
   1015 Corporation Way
   Palo Alto, CA 94303

WARNING

• Do not expose this appliance to rain or moisture.
• Do not submerge or expose for extended period to water.
• Protect from high humidity and rain.
• Unplug immediately if liquid has been spilled or if an object have fallen into the apparatus.
• Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.
• Unplug and disconnect external antennas (not included) during lightning storms.
• Do not remove cover [or back].
• Refer servicing to qualified service personnel.

DO YOU NEED HELP?

If you need help, please contact us, Monday-Friday, 8:00 a.m.-4:30 p.m., North American Pacific Time. 1-800-872-2228 from the U.S; 1-800-637-1648 from Canada; 650-903-3866, worldwide; FAX: 650-903-3867; web site, www.etoncorp.com; Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA
