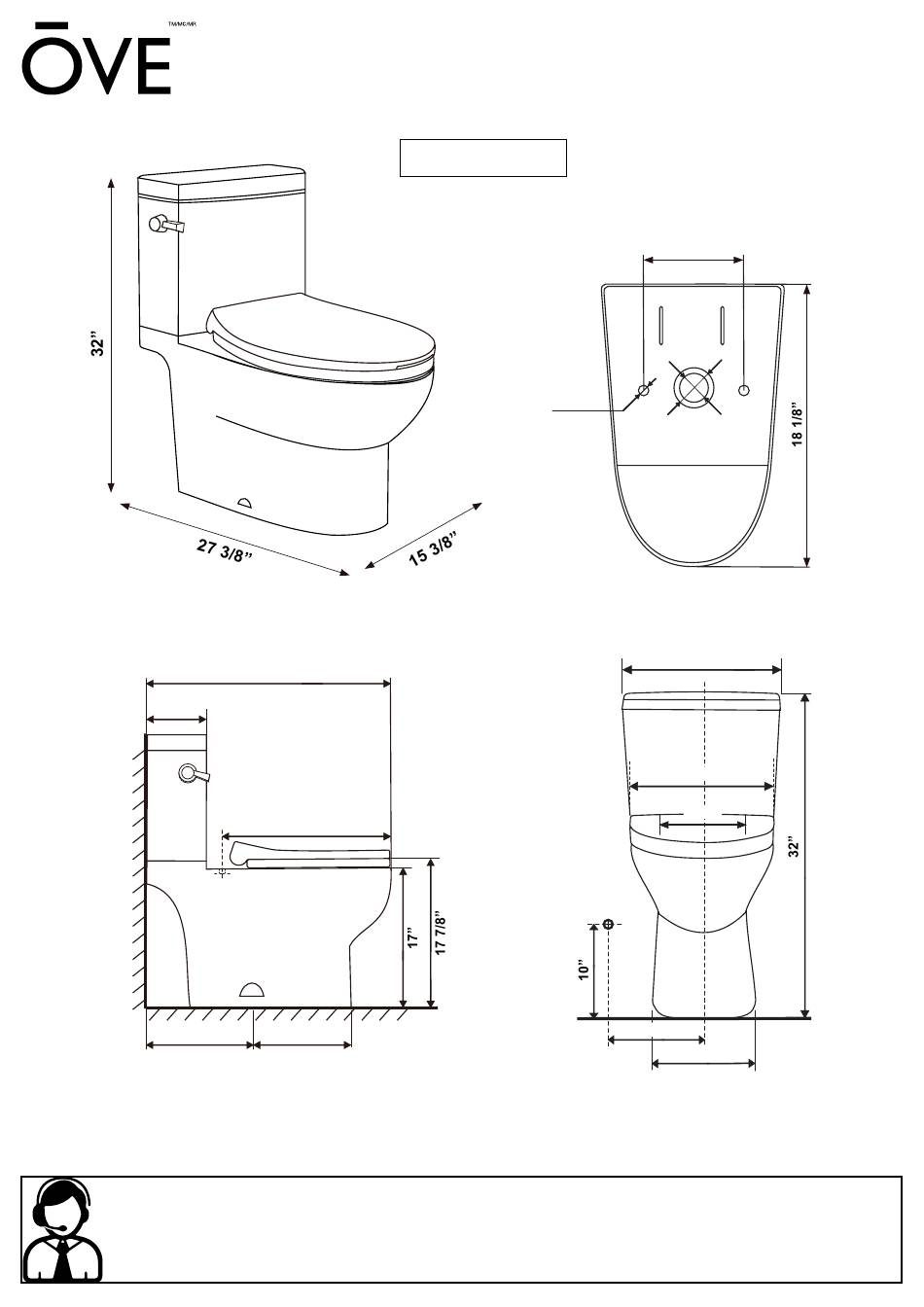

DUNBAR 2-PIECE TOILET
INSTALLATION MANUAL
SKU: 6701023
MODEL: DUNBAR
Dual Flush
1.1 gal / 1.6 gal | 4 L / 6 L
5 15/16"
5/8"
ø3 9/16"
ø2"
15 3/8"
27 3/8"
5 15/16"
14 15/16"
5 1/2"
18 1/2"
6 5/16"
12"
10 13/16"
11 1/4"
Questions, problems, need help?
Before returning to your retailer, call our customer service department at :
1-866-839-2888
8 a.m. - 5 p.m., EST, Monday - Friday
www.ovedecors.com | customerservice@ovedecors.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for OVE DUNBAR 6701023
Summary of Contents for OVE DUNBAR 6701023
- Page 1 DUNBAR 2-PIECE TOILET INSTALLATION MANUAL SKU: 6701023 MODEL: DUNBAR Dual Flush 1.1 gal / 1.6 gal | 4 L / 6 L 5 15/16” 5/8” ø3 9/16” ø2” 15 3/8” 27 3/8” 5 15/16” 14 15/16” 5 1/2” 18 1/2” 6 5/16”...
-
Page 2: Parts List
PARTS LIST ITEM # DESCRIPTION QUANTITY PART CODE Flush valve 99TOI0309-OU Fill valve 99TOI0310-OU Toilet tank 9TOI0311-OU Tank seal ring 99TOI0312-OU Tank hardware 99TOI0313-OU Tank lid 99TOI0314-OU Seat hardware 99TOI0190-OU Rubber nut (PRE-INSTALLED) 99TOI0191-OU Seat 99TOI0435-OU Toilet seal ring (wax ring) 99TOI0043-OU Fixation hardware 99TOI0173-OU... -
Page 3: Installation
INSTALLATION 1.1. Ensure that your water inlet pipe and your floor discharge drain are installed according to bellow drawing. These are minimum measurements, the toilet can be installed if your actual measurements are longer than below. TIP: Align 2 pieces of masking tape with the center of the drain, this will help you position the toilet in future steps. 1.2. - Page 4 INSTALLATION 2.1. Position the toilet onto the floor flange, making sure the flange bolts are inserted into the mounting holes on the toilet bowl. 2.2. Install washer and nut onto the flange bolt using an adjustable wrench. DO NOT over tightened the nut. Cover the hole with the provided cover.
- Page 5 INSTALLATION 3.1. Use the larger nut to secure the tank to the bowl as illustrated. Warning: To prevent leaking, ensure that the nuts are strongly tightened when you install the flush tank onto the toilet. 3.2. Connect the toilet to your water inlet valve, using the supply line (not supplied). 3.3.
- Page 6 INSTALLATION 4.1. Apply silicone around the base of the toilet. Wait for 24 hours for it to dry. ADJUSTING THE WATER TANK LEVEL 5.1. Open the tank lid, rotate the adjustable rod of the fill value to adjust the height of the floater. Adjustable Inside the tank...
- Page 7 ADJUSTING THE WATER TANK LEVEL 6.1. Put back the tank lid when the adjustment is done. DUAL FLUSH Dual flush toilets are ideal for an eco-friendly and water saving plumbing solution. With the option of full and half flush (depending on the type of waste), the user can easily control the water usage per flush. Dual flush toilets use a larger trap-way (the hole in the bottom of the bowl) and a flushing design that pushes the waste down to the drain pipe, as there is no siphoning action in dual siphon toilets, the system requires less water per flush, and the larger trap-way diameter makes it easier to get debris out of the bowl.
-
Page 8: Care And Maintenance
Limited Warranty. OVE will not be responsible for any incidental, consequential, special or indirect damages, including loss of use as a result of any manufacturing defect in a Product. OVE will not be responsible for labor, or any other fees associated with removal or installation of warranted Product, components and/or parts.
