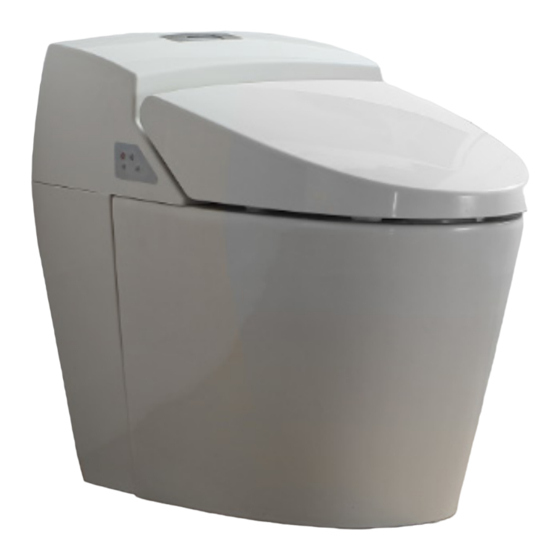

OVE GODFREY Instruction Manual

Smart toilet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

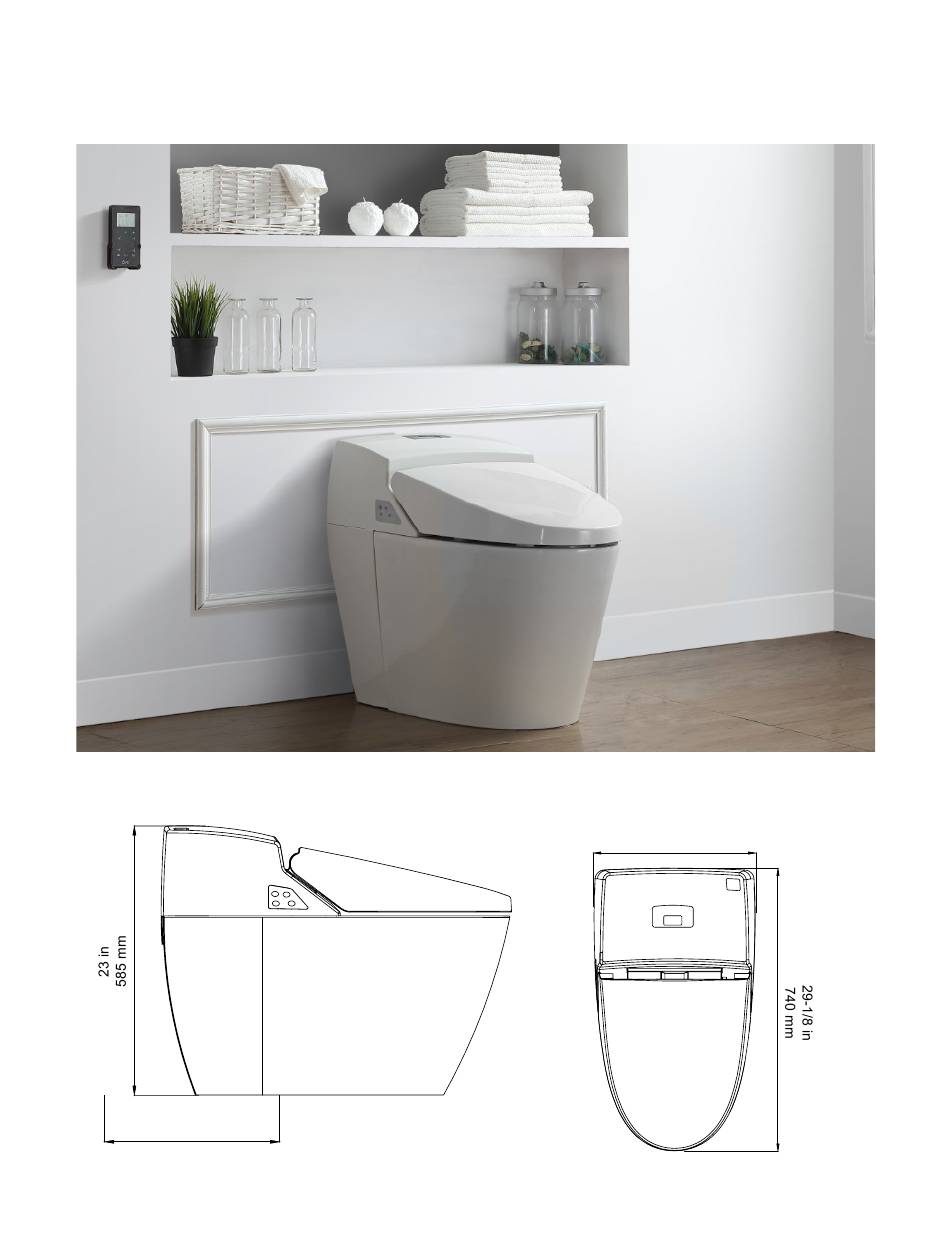

OVE SMART TOILET
Model GODFREY (IT-416)
INSTRUCTION MANUAL
WATCH OUR YOUTUBE INSTALLATION VIDEO
https://youtu.be/2AhhMBGu4rU
16-9/16 in
420 mm
12 in
305 mm
Thank you for choosing OVE SMART TOILET. Please read and understand this entire manual before
attempting to assemble, operate or install this product.
p. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GODFREY and is the answer not in the manual?

Questions and answers

Related Manuals for OVE GODFREY

Summary of Contents for OVE GODFREY

  • Page 1 INSTRUCTION MANUAL WATCH OUR YOUTUBE INSTALLATION VIDEO https://youtu.be/2AhhMBGu4rU 16-9/16 in 420 mm 12 in 305 mm Thank you for choosing OVE SMART TOILET. Please read and understand this entire manual before attempting to assemble, operate or install this product. p. 1...

  • Page 2: Table Of Contents

    CONTENT SAFETY NOTICE ..................... p.3 WARNINGS ...................... p.4 PART LIST ......................p.5 INSTALLATION INSTRUCTIONS ..............p.6-7 TIPS FOR RE-INSTALLING SIDE PANELS ............. p.8 FIRST TIME USE ....................p.9 CONTROLS DESCRIPTION ..............p.10-11 FEATURES ....................p.12 INTELLIGENT FEATURES ................p.13 CLEANING THE FILTER ................p.14 LONG TERM STORAGE ................

  • Page 3: Safety Notice

    SAFETY NOTICE ATTENTION! BEFORE INSTALLING THE PRODUCT, YOU MUST READ AND UNDERSTAND CAREFULLY ALL BELOW WARNINGS. 1. It is forbidden to disassemble toilet by yourself. 2. Please do not set this product in a wet place, because it is an electronic product. If set in the bathroom, please insure that there is proper air flow.

  • Page 4: Warnings

    WARNINGS Do not leave the To prevent against power toilet exposed to the sun. surge damages, make May cause yellowing or sure the ground is working color fading. in the power socket. Direct sunlight affects the good functioning of the remote.

  • Page 5: Part List

    PART LIST Item Light Indicator Panel & Flush button Toilet Water Inlet Water Filter 99TOI0144-OR Water Supply Hose 99TOI0143-OR Water Tube 99TOI0146-OR Side Control Panel Seal ring 99TOI0148-OR Seat 99TOI0162-OR Remote Receiver Remote 99TOI0152-OR p. 5...

  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS SUPPLIED Ensure that your water inlet pipe and your floor discharge drain are installed according to the drawing. These are minimum measurements, Install the floor flange according to the manufacturer’s the toilet can be installed if your actual measurements are longer than recommendations.
  • Page 7 INSTALLATION INSTRUCTIONS Remove the 2 plastic side panels from the toilet by firmly pulling them straight up. Place the seal ring under the toilet. Position the toilet onto the floor flange, making sure the fixing bolts are aligned with the toilet’s holes. Using a ratchet, tightly screw the nuts to the fixing bolts.

  • Page 8: Tips For Re-Installing Side Panels

    TIPS FOR RE-INSTALLING SIDE PANELS Start by aligning the 3 pegs on the back of the side panel with the 3 corresponding brackets on the back of the toilet. Make sure the 3 back pegs are aligned onto their corresponding brackets and insert the back panel flange behind the ceramic base.

  • Page 9: First Time Use

    FIRST TIME USE Open the water supply inlet valve. Plug the toilet in the power socket. The toilet will turn ON automatically. The toilet’s lights will start blinking from left to right circularly. The toilet will give out one short beeping sound when the lights blinking has complete 1 cycle. The blinking light indicates that the bidet water tank is filling with water, the toilet seat and the cleaning water are warming up.

  • Page 10: Controls Description

    CONTROLS DESCRIPTION SIDE CONTROL PANEL POWER: Pressing this key will stop any ongoing function. Pressing for 3 seconds will turn the power ON / OFF. SPRAY/MOVE: Pressing this key will initiate the Static Spray Cleaning function. Press it again to change to the Back-&-Forth Spray Cleaning function. *The SPRAY refers the 1 water jet function of the nozzle.
  • Page 11 CONTROLS DESCRIPTION POWER: Pressing this key will stop any ongoing function. Pressing for 3 seconds will turn the power ON/OFF. ECO MODE: Pressing the key will turn ON/OFF the ECO MODE function. FLUSH: Pressing this key will flush the toilet. Press this key for 5 sec., the AUTOMATIC FLUSHING FUNCTION will be turned OFF.

  • Page 12: Features

    FEATURES SPRAY CLEANING (1 WATER JET) This function will only work if the user is sitting on the toilet. Press the SPRAY/MOVE key for spray cleaning. Water will spray and clean the user. Press the key again and the nozzle will move back & forth to insure the cleanest result. You can use this key stoke to get the best cleaning effect.
  • Page 13 SMART FEATURES ECO MODE ECO MODE will cut down the electricity usage of your smart toilet during times of none-usage. The bidet water tank and the seat will start heating only once the user is sitting on the toilet, whereas in normal mode, the bidet water and seat are kept to your preferences for your instant enjoyment.

  • Page 14: Cleaning The Filter

    CLEANING THE FILTER Close your shut off valve, turn clockwise. Uninstall the seat and the right side panel. Do not take out the filter before closing the (see installation instructions steps 4 to 7) shut off valve. Unscrew filter cover turning Clean the filter.

  • Page 15: Long Term Storage

    LONG TERM STORAGE In order to prevent from any damages that may be caused from frozen toilet water, please drain away the remaining water according to the following methods. When leaving for a long time without using this toilet, please make sure to drain all the water from the toilet.

  • Page 16: Specification Sheet

    SPECIFICATION SHEET Item Content Electric Load AC 120V / 500W / 60HZ Electric Cord 1.5 m insulated power cord Cleaning System Spray Cleaning (1 jet) Water pressure 0.1-0.6 MPa / 14.5-87.0 psi Bidet Cleaning (4 jets) Water pressure 0.1-0.6 MPa / 14.5-87.0 psi Water Temp From ambient temperature to 40 C Heater Capacity...

  • Page 17: Maintenance & Consumer Responsibilities

    MAINTENANCE & CONSUMER RESPONSIBILITIES ■ The DISTRIBUTOR does prohibits the use of harsh abrasive cleansers on any of its products. Harsh cleansers will damage the inner workings of the toilets. ■ For daily maintenance, use a wet cloth and a soft liquid cleaner. ■...

  • Page 18: Installation Picture

    INSTALLATION PICTURE p. 18...
  • Page 19 Save this manual for future reference Conservez ce manuel pour usage ultérieur Conserve este manual para futura referencia HEAD OFFICE / SIÈGE SOCIAL / OFICINA PRINCIPAL 2800 Etienne Lenoir, Laval Quebec H7R 0A3 Canada Customer service / Service à la clientèle / Service al cliente Tel.: 1-866-839-2888 Fax: 1-866-922-9990 customerservice@ovedecors.com...
