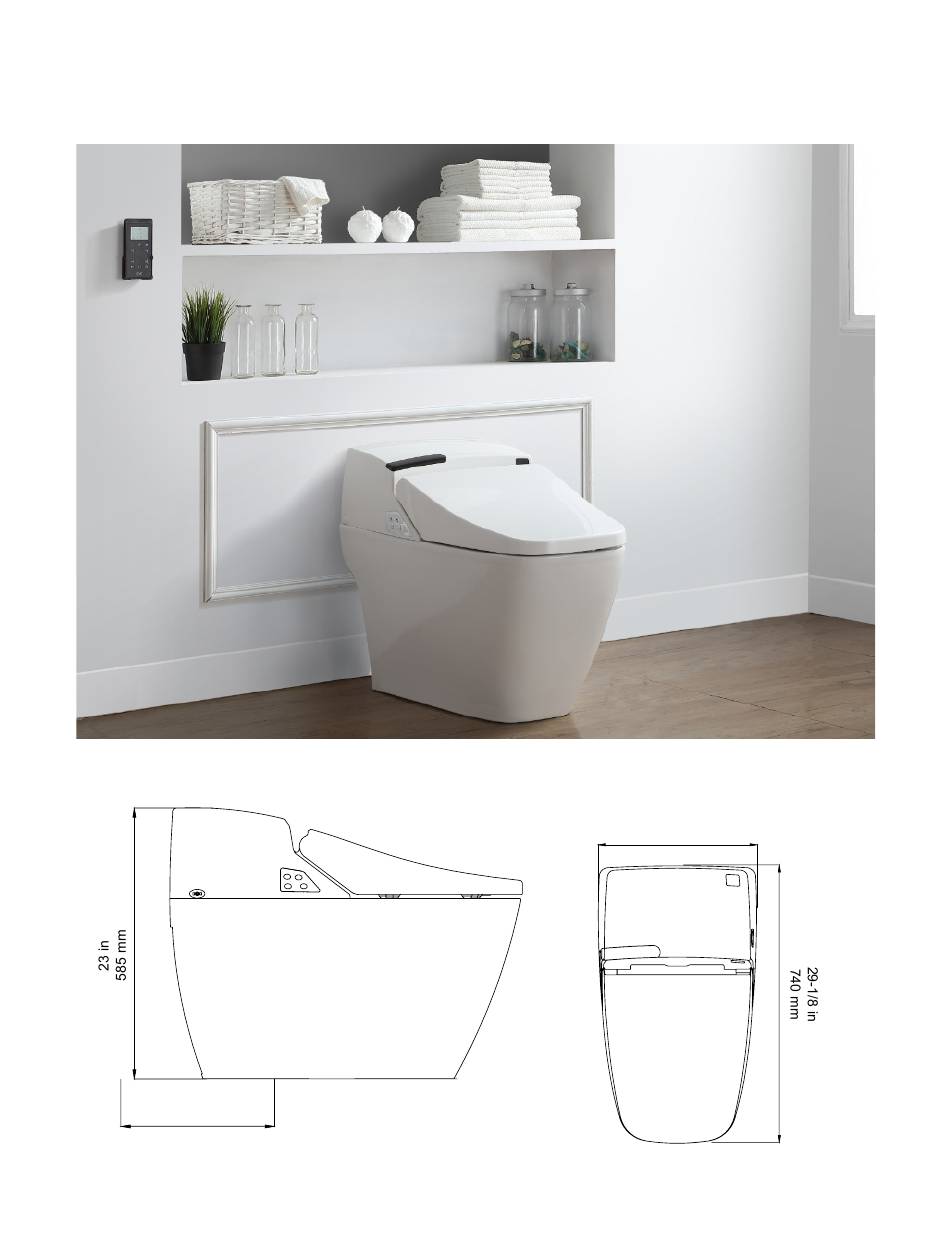

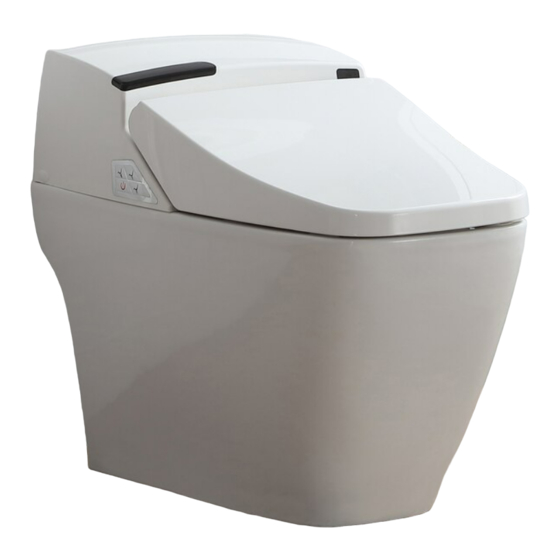

OVE SMART TOILET
Model BERNARD (IT-515)
INSTRUCTION MANUAL
WATCH OUR YOUTUBE INSTALLATION VIDEO
https://youtu.be/Fitsmm5qjcM
16-9/16 in
420 mm
12 in
305 mm
Thank you for choosing OVE SMART TOILET. Please read and understand this entire manual before
attempting to assemble, operate or install this product.
p. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OVE BERNARD IT-515
Summary of Contents for OVE BERNARD IT-515
- Page 1 INSTRUCTION MANUAL WATCH OUR YOUTUBE INSTALLATION VIDEO https://youtu.be/Fitsmm5qjcM 16-9/16 in 420 mm 12 in 305 mm Thank you for choosing OVE SMART TOILET. Please read and understand this entire manual before attempting to assemble, operate or install this product. p. 1...
-
Page 2: Table Of Contents
CONTENT SAFETY NOTICE ..................... p.3 WARNINGS ...................... p.4 PART LIST ......................p.5 INSTALLATION INSTRUCTIONS ..............p.6-8 FIRST TIME USE ....................p.9 CONTROLS DESCRIPTION ..............p.10-11 FEATURES ....................p.12 INTELLIGENT FEATURES ................p.13 CLEANING THE FILTER ................p.14 LONG TERM STORAGE ................p.15 NOZZLE MAINTENANCE ................ -
Page 3: Safety Notice
SAFETY NOTICE ATTENTION! BEFORE INSTALLING THE PRODUCT, YOU MUST READ AND UNDERSTAND CAREFULLY ALL BELOW WARNINGS. 1. It is forbidden to disassemble toilet by yourself. 2. Please do not set this product in a wet place, because it is an electronic product. If set in the bathroom, please insure that there is proper air flow. -
Page 4: Warnings
WARNINGS Do not leave the To prevent against power toilet exposed to the sun. surge damages, make May cause yellowing or sure the ground is working color fading. in the power socket. Direct sunlight affects the good functioning of the remote. -
Page 5: Part List
PART LIST Item Light Indicator Panel Toilet Water Inlet Water Filter 99TOI0144-OR Water Supply Hose 99TOI0143-OR Water Tube 99TOI0146-OR Side Control Panel Seal ring 99TOI0148-OR Seat 99TOI0149-OR Seat Opening Sensors Remote Receiver Remote 99TOI0152-OR p. 5... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS SUPPLIED Ensure that your water inlet pipe and your floor discharge drain are installed according to the drawing. These are minimum measurements, Install the floor flange according to the manufacturer’s the toilet can be installed if your actual measurements are longer than recommendations. - Page 7 INSTALLATION INSTRUCTIONS With care, remove the whole tank and the seat from the ceramic base. Gently set it aside on a soft surface. Place the seal ring under the toilet. Position the toilet onto the floor flange, making sure the fixing bolts are aligned with the toilet’s holes.
- Page 8 INSTALLATION INSTRUCTIONS Connect the water inlet hose to your existing shut off valve on the wall. Then connect the other end of the hose to the toilet’s water inlet located Apply silicone around the base of the toilet. at the back, underneath the filter. Wait for 24h for it to dry.
-
Page 9: First Time Use
FIRST TIME USE Open the water supply shut off valve. Plug the toilet in the power socket. The toilet will turn ON automatically. The toilet’s lights will start blinking from left to right circularly. The toilet will give out one short beeping sound when the lights blinking has complete 1 cycle. The blinking light indicates that the bidet water tank is filling with water, the toilet seat and the cleaning water are warming up. -
Page 10: Controls Description
CONTROLS DESCRIPTION SIDE CONTROL PANEL POWER: Pressing this key will stop any ongoing function. Pressing for 3 seconds will turn the power ON / OFF. SPRAY/MOVE: Pressing this key will initiate the Static Spray Cleaning function. Press it again to change to the Back-&-Forth Spray Cleaning function. *The SPRAY refers the 1 water jet function of the nozzle. - Page 11 CONTROLS DESCRIPTION POWER: Pressing this key will stop any ongoing function. Pressing for 3 seconds will turn the power ON/OFF. ECO MODE: Pressing the key will turn ON/OFF the ECO MODE function. FLUSH: Pressing this key will flush the toilet. Press this key for 5 sec., the AUTOMATIC FLUSHING FUNCTION will be turned OFF.
-
Page 12: Features
FEATURES SPRAY CLEANING (1 WATER JET) This function will only work if the user is sitting on the toilet. Press the SPRAY/MOVE key for spray cleaning. Water will spray and clean the user. Press the key again and the nozzle will move back & forth to insure the cleanest result. You can use this key stoke to get the best cleaning effect. - Page 13 SMART FEATURES ECO MODE ECO MODE will cut down the electricity usage of your smart toilet during times of none-usage. The bidet water tank and the seat will start heating only once the user is sitting on the toilet, whereas in normal mode, the bidet water and seat are kept to your preferences for your instant enjoyment.
-
Page 14: Cleaning The Filter
CLEANING THE FILTER Close your shut off valve, turn clockwise. Reach the filter behind the toilet ceramic Do not take out the filter before closing the base. shut off valve. If the filter is unreachable due to limited space between the toilet and the wall, uninstall the whole seat from the ceramic base. -
Page 15: Long Term Storage
LONG TERM STORAGE In order to prevent from any damages that may be caused from frozen toilet water, please drain away the remaining water according to the following methods. When leaving for a long time without using this toilet, please make sure to drain all the water from the toilet. -
Page 16: Specification Sheet
SPECIFICATION SHEET Item Content Electric Load AC 120V / 500W / 60HZ Electric Cord 1.5 m insulated power cord Cleaning System Spray Cleaning (1 jet) Water pressure 0.1-0.6 MPa / 14.5-87.0 psi Bidet Cleaning (4 jets) Water pressure 0.1-0.6 MPa / 14.5-87.0 psi Water Temp From ambient temperature to 40 C Heater Capacity... -
Page 17: Maintenance & Consumer Responsibilities
MAINTENANCE & CONSUMER RESPONSIBILITIES ■ The DISTRIBUTOR does prohibits the use of harsh abrasive cleansers on any of its products. Harsh cleansers will damage the inner workings of the toilets. ■ For daily maintenance, use a wet cloth and a soft liquid cleaner. ■... -
Page 18: Installation Picture
INSTALLATION PICTURE p. 18... - Page 19 Save this manual for future reference Conservez ce manuel pour usage ultérieur Conserve este manual para futura referencia HEAD OFFICE / SIÈGE SOCIAL / OFICINA PRINCIPAL 2800 Etienne Lenoir, Laval Quebec H7R 0A3 Canada Customer service / Service à la clientèle / Service al cliente Tel.: 1-866-839-2888 Fax: 1-866-922-9990 customerservice@ovedecors.com...
