IRENNE

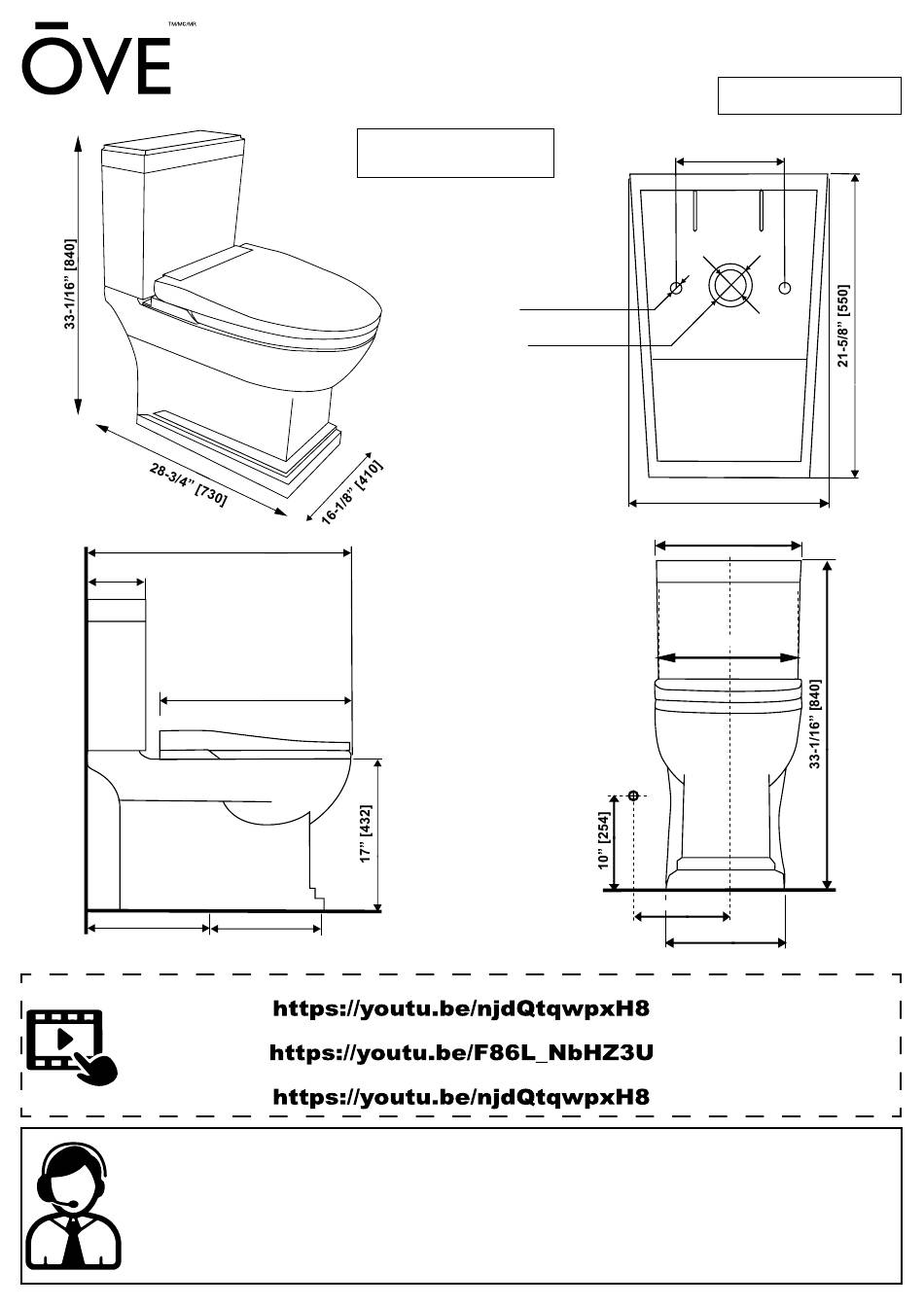

INSTALLATION MANUAL | MANUEL D'INSTALLATION | MANUAL DE INSTALACIÓN
Flush | Chasse | Descarga
1.28 gal | 4.8 L
Measures: inch [millimeter]
5-15/16" [150]
Mesures: pouce [millimètre]
Medidas: pulgadas [milímetros]
2-ø5/8" [2-ø16]
ø2" [ø52]
ø3-9/16" [ø90]
12-13/16" [325]
16-1/8" [410]
28-3/4" [730]
7" [178]
15-3/16" [385]
21-1/4" [540]
6-5/16" [161]
11" [280]
11-13/16" [300]
14-9/16" [370]
An installation video guide can be found on our Youtube channel:
Un guide d'installation video est disponible sur notre chaîne Youtube:
Una guía de instalación de vídeo está disponible en nuestro canal de Youtube.
Questions, problems, need help?
Call our customer service department at
1-866-839-2888, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d'aide?
Contactez notre service à la clientèle au
1-866-839-2888, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
1-866-839-2888, 9 am. – 5 pm., HDE, Lunes a Viernes.
PAGE 1
www.ovedecors.com | customerservice@ovedecors.com
