Pfannenberg PRO 10 Quick Manual

Quick Guide PRO 10/ PRO L 10/ PRO X 10
-40°C
116 dB
IP66/67
+55°C
S10/ S11
PRO 10
23150######
PRO L 10
23151######

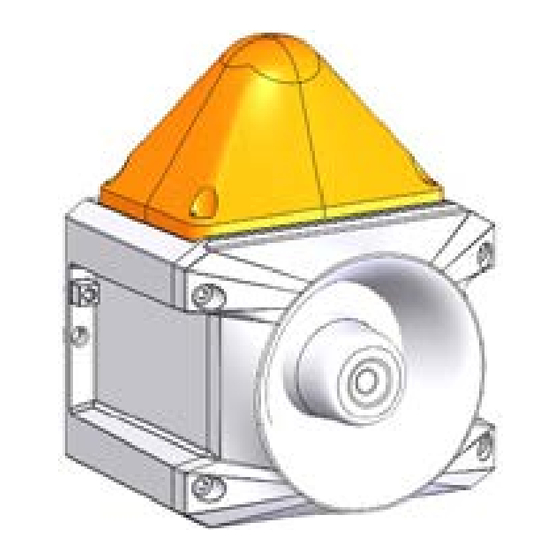

PRO X 10
23152######
www.pfannenberg.com/disposal
Pfannenberg GmbH
Werner-Witt-Straße 1 · D- 21035 Hamburg
Tel.: +49/ (0)40/ 734 12-0
Fax: +49/ (0)40/ 734 12-101
service@pfannenberg.com
http://www.pfannenberg.com
04/2024
Spannungsführende Geräte und
freiliegende Anschlussleitungen können
Stromschläge erzeugen und schwere
Unfälle verursachen.
DE
Arbeiten an elektrischen Anschlüssen dürfen
nur elektrotechnisch geschulte und autorisierte
Fachkräfte durchführen.
Live equipment and exposed connecting
cables can generate electric shocks and
cause serious accidents.
EN
Work on electrical connections may only be
carried out by electrotechnical trained and
authorised specialists.
Les appareils sous tension et les câbles de
raccordement exposés peuvent provoquer
des chocs électriques et entraîner des
accidents graves.
FR
Seuls des spécialistes formés en
électrotechnique et autorisés peuvent effectuer
des travaux sur les raccordements électriques.
Le apparecchiature sotto tensione e i cavi di
collegamento esposti possono generare
scosse elettriche e causare gravi incidenti.
IT
Gli interventi sui collegamenti elettrici devono
essere eseguiti esclusivamente da personale
elettrotecnico specializzato e autorizzato.
Equipamentos energizados e cabos de
conexão expostos podem gerar choques
elétricos e causar acidentes graves.
PT
O trabalho em conexões elétricas só pode ser
realizado por especialistas eletrotécnicos
treinados e autorizados.
Находящееся под напряжением
оборудование и оголенные
соединительные кабели могут вызвать
поражение электрическим током и стать
причиной серьезных аварий.
RU
Работы с электрическими соединениями
должны выполняться только
специалистами, прошедшими
электротехническое обучение и имеющими
соответствующий допуск.
Connection / Settings
PRO 10
S10
Volume
Without external control With external control (C3)
S10
1 2 3 4 5 1
*
OFF OFF OFF Max. OFF OFF
ON OFF OFF - 4 dB ON OFF
OFF ON OFF -10 dB OFF ON
ON ON OFF -16 dB ON
-16 dB
OFF OFF ON
-22 dB
ON OFF ON
-26 dB
OFF ON ON
-30 dB
ON ON ON
PRO L 10
Single-color LED Multi-Color LED
S1
..
S1
Operating mode
1 2 3 4
OFF OFF OFF
*
Flashlight 1 Hz
OFF OFF ON
Flashlight 0,75 Hz
OFF ON OFF
Continuous
OFF ON ON
Blinking light 1 Hz
ON OFF OFF
Flashlight 2 Hz
ON OFF ON
Blinking light 2 Hz
ON ON OFF
Flashlight 0,1 Hz
ON ON ON
Flashlight 0,5 Hz
*
Factory Setting
1
PRO L 10/ PRO X 10
Polarity Switching
Protection Polarity C1-C3
S11
Tone Selection/
Timeout (♪)
S10
C3
S11
2 3 4 5
1 2 3 4 5 6 7 8
*
OFF OFF Max.
OFF OFF
OFF OFF - 4 dB
ON OFF
OFF OFF -10 dB See page 2
OFF ON
ON OFF OFF -16 dB
ON ON
OFF OFF OFF ON -16 dB
-22 dB
ON OFF OFF ON
-26 dB
OFF ON OFF ON
-30 dB
ON ON OFF ON
PRO X 10
S1
Colour
4 5 6
1 Hz 0,75 Hz
OFF OFF
Red *
*
OFF ON
Blue
ON OFF
Green
ON ON
Yellow
*
Ongoing
60 s
15 min
45 min
S1
0,5 Hz 0,1 Hz
086050006
