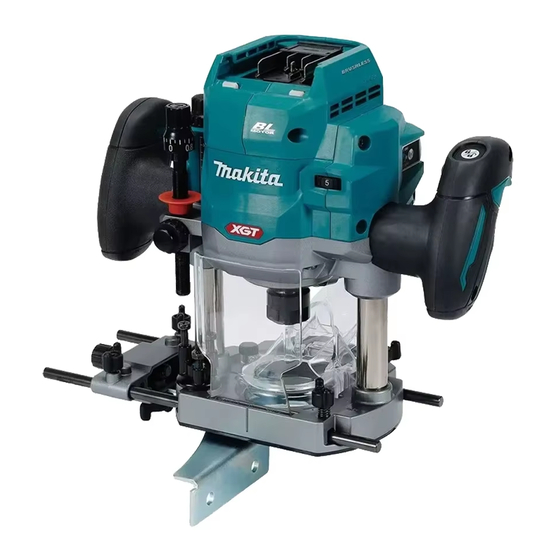

Makita RP001GZ Instruction Manual

Cordless router
Hide thumbs Also See for RP001GZ:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Cordless Router
RP001G
Read before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP001GZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Makita RP001GZ

Summary of Contents for Makita RP001GZ

  • Page 1 INSTRUCTION MANUAL Cordless Router RP001G Read before use.

  • Page 2: Specifications

    SPECIFICATIONS Model: RP001G 12 mm or 1/2″ Collet chuck capacity Plunge capacity 0 - 60 mm No load speed 8,000 - 25,000 min Overall height with BL4040 294 mm Rated voltage D.C. 36 V - 40 V max Net weight 4.0 - 5.2 kg •...

  • Page 3: Declarations Of Conformity

    adapter plugs with earthed (grounded) power Vibration tools. Unmodified plugs and matching outlets will reduce risk of electric shock. The vibration total value (tri-axial vector sum) deter- Avoid body contact with earthed or grounded mined according to EN62841-2-17: surfaces, such as pipes, radiators, ranges and Work mode: cutting grooves in MDF refrigerators.
  • Page 4 ignore tool safety principles. A careless action Keep handles and grasping surfaces dry, can cause severe injury within a fraction of a clean and free from oil and grease. Slippery second. handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected Always wear protective goggles to protect situations.
  • Page 5 DO NOT let comfort or familiarity 12. Use the batteries only with the products with product (gained from repeated use) replace specified by Makita. Installing the batteries to strict adherence to safety rules for the subject non-compliant products may result in a fire, exces- product.
  • Page 6 It will 16. Always close the lid of the slot when also void the Makita warranty for the Makita tool and operating. charger. 17. Do not remove the wireless unit from the slot while the power is being supplied to the tool.

  • Page 7: Functional Description

    Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps CAUTION: Always be sure that the tool is light up for a few seconds. switched off and the battery cartridge is removed before adjusting or checking function on the tool.
  • Page 8 Charge the battery(ies) or replace it/them with recharged battery(ies). Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Switch action Fig.4 To turn on the tool, press the lock/unlock button. The ►...

  • Page 9: Electronic Function

    If the tool consistently fails to stop the router bit after the switch is turned off, have the tool ser- viced at a Makita service center. Fig.7 ► 1. Collet cone 2. Collet nut 3. Collet sleeve ASSEMBLY 4.

  • Page 10: Operation

    Installing or removing the chip OPERATION deflector Adjusting the cutting depth CAUTION: Before operation, always make sure that the chip deflector is installed properly. To adjust the cutting depth, release the lock lever, then lower the body. After the adjustment, turn the lock lever To install the chip deflector, insert the chip deflector into firmly to secure the body.
  • Page 11 To adjust the height of the stopper screws, use the Press down the stopper pole while pressing the wrench or driver. feed button until it contacts the stopper screw. Fig.12 Fig.15 ► 1. Stopper pole 2. Stopper screw 3. Feed button Loosen the fixing nut, then pull up the stopper pole while pressing the feed button.

  • Page 12: General Operation

    To perform fine adjustment of the cutting depth, Release the lock lever. turn the dial on the stopper pole so that it indicates "0". Fig.21 ► 1. Lock lever Fig.18 ► 1. Dial By pushing down the tool until the stopper pole meets the stopper screw, you can obtain the depth of cut which Turn the head of the stopper pole to obtain the you adjusted by above procedure.
  • Page 13 Lower the tool body and move the tool forward Using the straight guide over the workpiece surface, keeping the base flush and advancing smoothly until the cutting is complete. The straight guide is effectively used for straight cut when chamfering or grooving. Remove the clamping screw and the washer from the guide holder.
  • Page 14 Move the tool with the straight guide flush with the Mount rod 8 to the slots in the guide holder and tighten the clamping screws. side of the workpiece. Fig.31 Wider straight guide of desired dimensions may be made by using the convenient holes in the guide to bolt on extra pieces of wood.
  • Page 15 Using the fine adjusting straight Adjusting guide shoe width Guide shoe is adjustable in the range from 280 mm to guide 350 mm. Optional accessory Loosen the screws and move the guide shoe width to adjust. The fine adjusting straight guide can adjust the distance more accurately than the straight guide.
  • Page 16 Place the templet guide on the base, and then Using the trimmer guide tighten the screws. Optional accessory The trimmer guide allows for trimming the curved side like veneers for furniture by moving the guide roller along the side of the workpiece. Fig.39 ►...
  • Page 17 Dust nozzle WIRELESS ACTIVATION FUNCTION Installing the dust nozzle enables to connect a Makita vacuum cleaner to the tool. Install the dust nozzle on the tool base using the What you can do with the wireless thumb screw so that protrusion on the dust nozzle fit to the notch in the tool base.
  • Page 18 Open the lid on the tool as shown in the figure. Tool registration for the vacuum cleaner NOTE: A Makita vacuum cleaner supporting the wireless activation function is required for the tool registration. NOTE: Finish installing the wireless unit to the tool before starting the tool registration.
  • Page 19 If the vacuum cleaner and the tool are linked success- Set the stand-by switch on the vacuum cleaner to fully, the wireless activation lamps will light up in green "AUTO". for 2 seconds and start blinking in blue. NOTE: The wireless activation lamps finish blinking in green after 20 seconds elapsed.
  • Page 20 Description of the wireless activation lamp status Fig.55 ► 1. Wireless activation lamp The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the meaning of the lamp status. Status Wireless activation lamp Description Color Duration...
  • Page 21 Press the wireless activation button on the vac- uum cleaner for 6 seconds. The wireless activation lamp blinks in green and then become red. After that, press the wireless activation button on the tool in the same way. Fig.57 ► 1. Wireless activation button 2. Wireless activation lamp If the cancellation is performed successfully, the wire- less activation lamps will light up in red for 2 seconds...
  • Page 22 Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs.

  • Page 23: Maintenance

    Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Fig.58 23 ENGLISH...
  • Page 24 “U”Grooving bit Board-jointing bit Fig.63 Fig.59 Corner rounding bit “V”Grooving bit Fig.64 Fig.60 Drill point flush trimming bit Chamfering bit Fig.65 Fig.61 Drill point double flush trimming bit Cove beading bit Fig.66 Fig.62 24 ENGLISH...

  • Page 25: Optional Accessories

    OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
  • Page 26 NOTE: Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. ENGLISH...
  • Page 28 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A70-220 20240131...
