Operation
6.19 Using the Manual Coupler
3
2

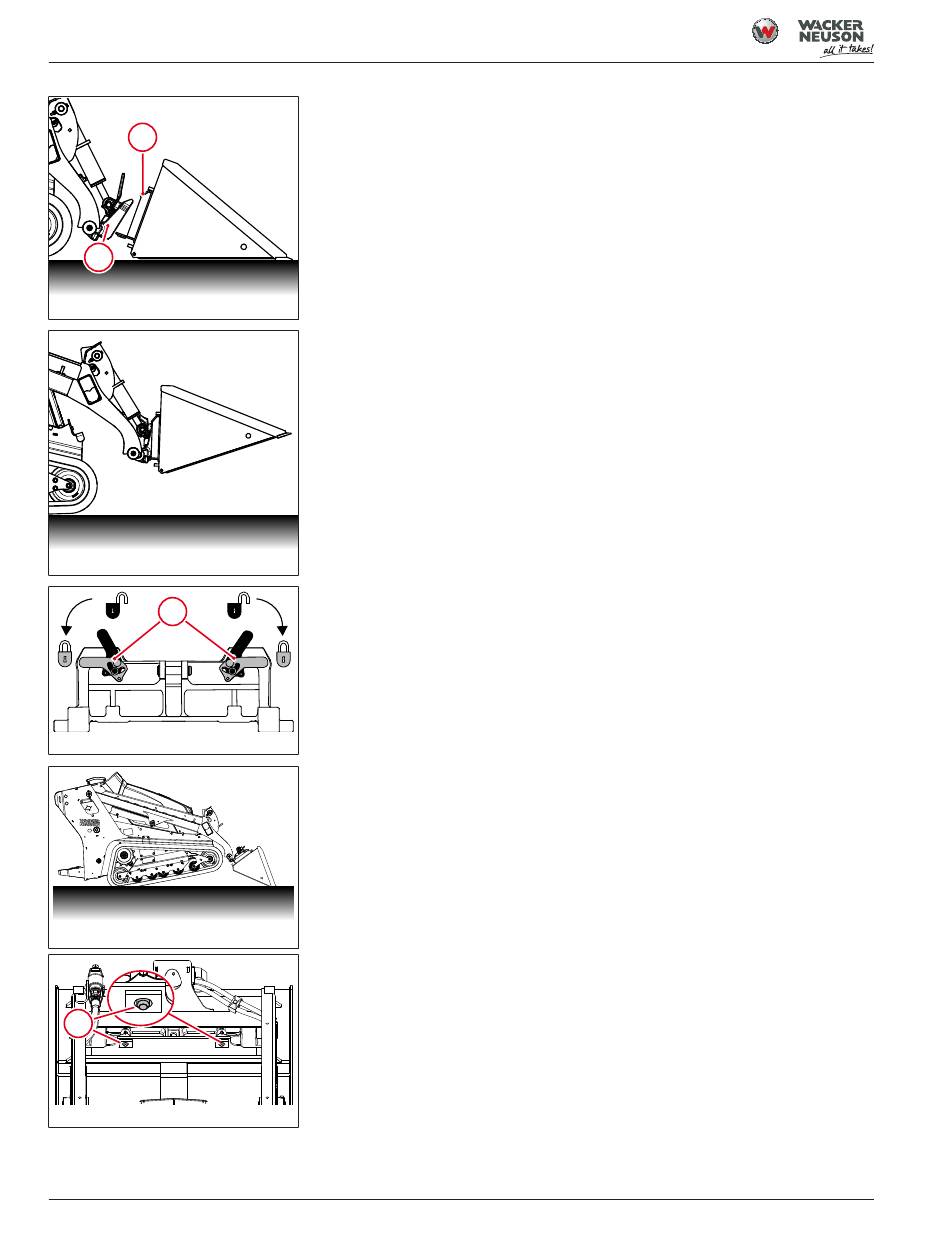

Fig. 39: Coupler and mount
Fig. 40: Tilting the coupler back
4
Fig. 41: Lock levers down
Fig. 42: Testing the attachment
5
Fig. 43: Coupler Pins
56
5. Move the machine forward until the coupler (2) is under the attach-
ment's upper mount (3).
6. Raise the lift arm until the coupler begins to lift the attachment.
7. Tilt the coupler back until the attachment mount is against the coupler
frame.
8. Lower the lift arm completely with the attachment slightly rolled back.
9. Stop the engine.
10. Set the lock levers (4) down to the locked position.
11. Check the coupler to ensure the attachment is secure.
Testing the attachment system
For buckets, lower the lift arm fully and tilt the bucket down until the front of
the machine lifts off of the ground.
With any attachment, ensure the lower coupler pins (5) protrude through the
attachment's lower mounting plate.
Removing an attachment
1. Lower the lift arm completely. Then, tilt the attachment back slightly so
that it is not touching the ground.
2. Stop the engine.
