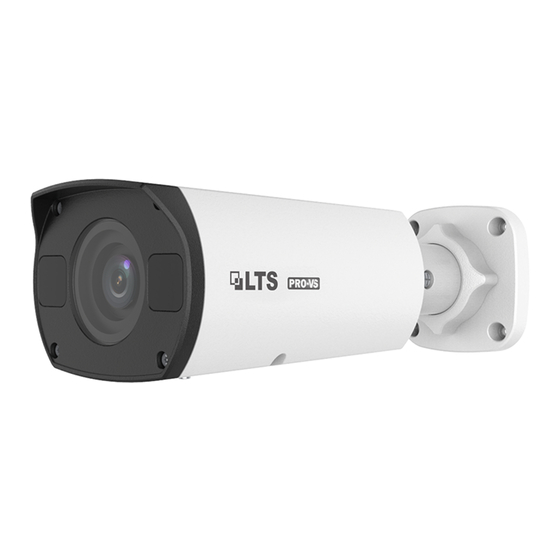

LTS VSIP9643W-SZ Quick Manual

Network bullet cameras
Hide thumbs Also See for VSIP9643W-SZ:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Bullet Cameras
Quick Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSIP9643W-SZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LTS VSIP9643W-SZ

Summary of Contents for LTS VSIP9643W-SZ

  • Page 1 Network Bullet Cameras Quick Guide...

  • Page 2: Safety And Compliance Information

    Safety and Compliance Information Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation. Installation This device is a class A product and may cause radio interference. ...
  • Page 3 friction, scratch and contamination, etc. In order to keep the cover clean, do not remove the protective film on the cover during mounting. After mounting is finished, remove the film before the device is powered on. Contact professionals for maintenance information. Do not ...

  • Page 4: Regulatory Compliance

    Regulatory Compliance FCC statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5 Battery Directive-2013/56/EC Battery in the product complies with the European Battery Directive 2013/56/EC.For proper recycling,return the battery to your supplier or to a designated collection point.

  • Page 6: Default Ip, Username And Password

    Default IP, Username and Password Default IP address: 192.168.1.13  Default username: admin  The default password is used for your first login. To ensure account security, please change the password after your first login. You are recommended to set a strong password (no less than eight characters).

  • Page 7: Cable Connection

    Cable Connection All cables are tagged to indicate their functions separately. The tail cable available may vary with the product model. The following examples show cables that are for 12 VDC. Description Description Video output Audio input/Audio output/GND (BNC interface) Alarm input(IN,GND) Power interface / Alarm output(N,P)

  • Page 8: Mount Your Camera

    For specifications, see the latest product datasheets. Mount Your Camera (Optional) Insert the Micro SD Card For cameras that support Micro SD, you need to insert the Micro SD card after opening the bottom cover of camera. Do not hot plug the Micro SD card after it is inserted. Otherwise the camera or the SD card might be damaged.

  • Page 9: Install Camera

    Install Camera The figures are for your reference only. 1. Locate the positions of the holes. Paste the installation positioning sticker on the wall and align the cross center to the hole on the wall. Lead the cables across the hole on the wall.
  • Page 10 3. Mount the plastic anchors of self-tapping screws. Knock the plastic anchors into the guide holes and ensure that they are tightened up. 4. Loosen the hex fillister-head screw using a 4# hex L-key (that should be purchased separately) to avoid damaging the universal joint.
  • Page 11 5. Mount your camera onto the wall and connect all cables. Lead tapping screws through the guide holes in the base and fix them to the wall by using a screwdriver. 6. Adjust the monitoring direction. Hex fillister-head screw Loosen two hex fillister-head screws using a 4# hex L-key (that should be purchased separately) to avoid damaging the universal joint.

  • Page 12: Waterproof Components For An Rj45 Plug

    Waterproof Components for an RJ45 Plug Attach the seal ring to the Seal ring Ethernet interface. Mount the waterproof components Insert in order order. Then insert the cable into the Ethernet interface and screw the waterproof bolt in. You can crimp the inner wires of the cable with the RJ45 plug first and then cover the waterproof components.
  • Page 13 Install the ActiveX at your first login. When the  installation of the ActiveX is completed, open your IE to log in. For your first login with Windows 7, if the system  does not prompt you to install ActiveX, follow these steps to turn off UAC: click the Start button, and then click Control Panel.
