ABSCO SHEDS 3060UTK-PTX Assembly Instructions Manual

Utility shed
Hide thumbs

Advertisement

Quick Links

Download this manual
ASSEMBLY APP AVAILABLE ON
We highly recommend downloading the Absco Sheds
Assembly App to assist with your build.
STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY
CUSTOMER SERVICE • WARRANTY INFORMATION • COUNCIL FORMS
When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated section is 1" high and inset 3" on all sides
from the overall slab base dimensions
AU: 1800 029 701
+1 (866) 788 3046
+1 (866) 788 3046
N Z: 0800 466 444
Absco Industries
Assembly Instruction Manual
ABSCO UTILITY SHED
MODEL: 3060UTK-PTX
10' W x 20' D x 7' H
admin@absco.com.au
admin@absco.com.au
www.abscosheds.com.au
www.abscogardensheds.com
Model: 3060UTK-PTX
+
Scan to
download
WALLS SIT
ON THIS LEVEL
RAISED FLOOR
INSIDE SHED
4"
3"
1"
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
12/12/23
Australian Made

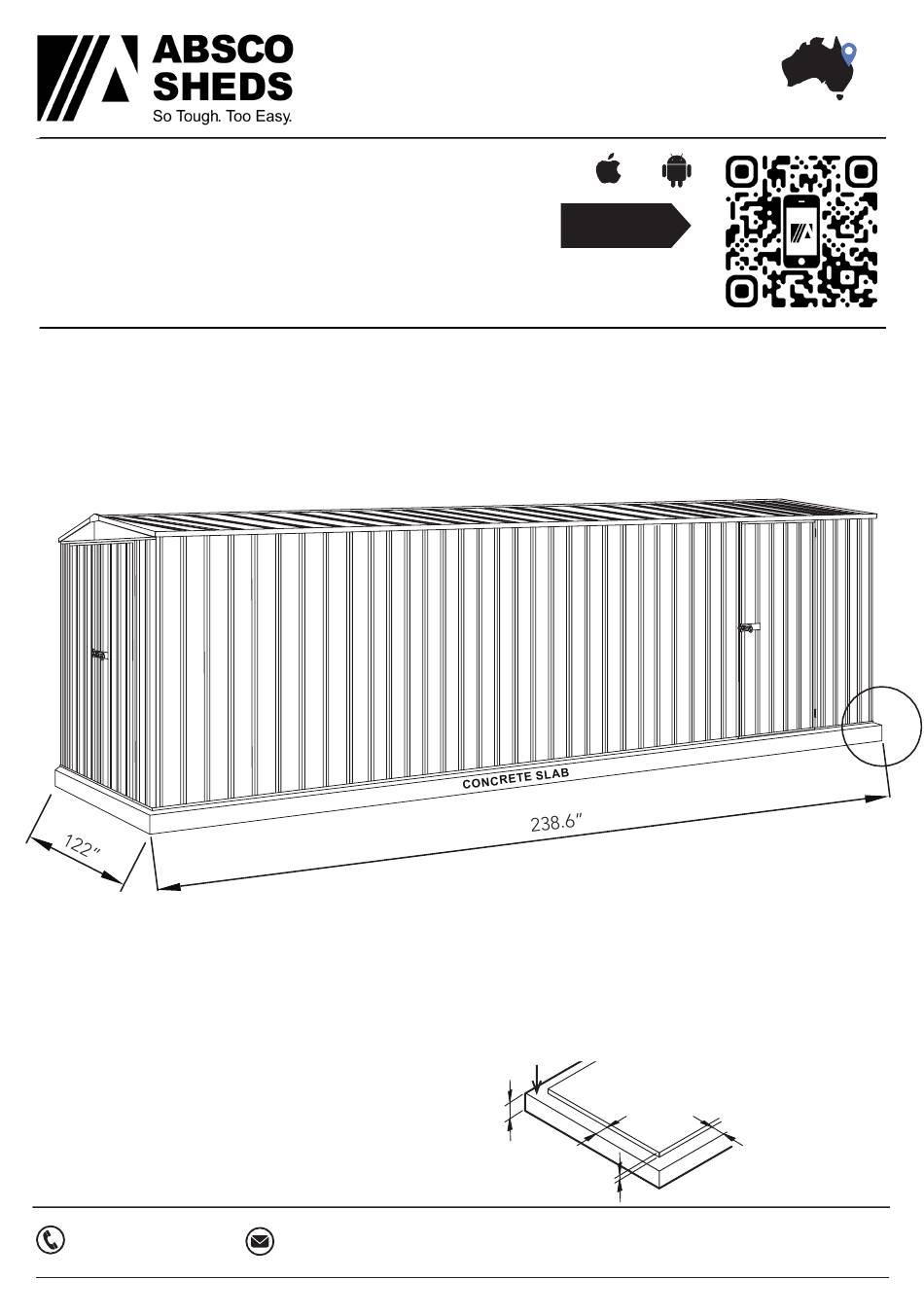

Overall slab base
dimensions for this
model are as shown
above.
3"
Illustration not to
scale.
1.3
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3060UTK-PTX and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS 3060UTK-PTX

Summary of Contents for ABSCO SHEDS 3060UTK-PTX

  • Page 1 MODEL: 3060UTK-PTX 10’ W x 20’ D x 7’ H Australian Made ASSEMBLY APP AVAILABLE ON We highly recommend downloading the Absco Sheds Scan to download Assembly App to assist with your build. STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY CUSTOMER SERVICE •...
