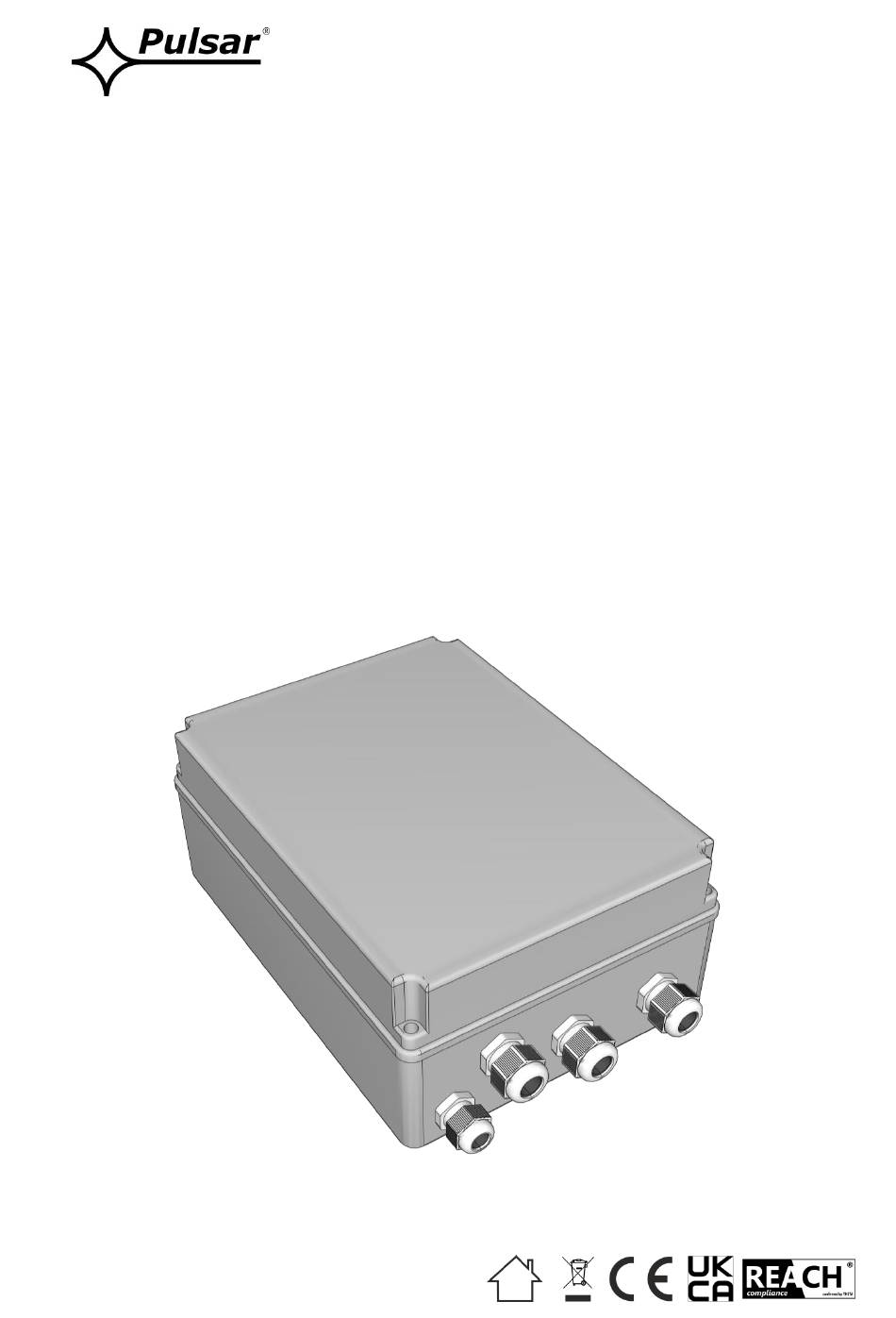

- Page 1 USER MANUAL v1.0 Edition: 1 from 01.12.2022 Supersedes edition: SWSH-120 Power supply systems for PoE switches, 52VDC/120W, ABS enclosure IP56...
-
Page 2: Table Of Contents
1. Technical description. 1.1. General description. SWSH-120 is designed for uninterrupted power supply of PoE switches with 52 V DC. It was designed based on switching power supply module with high energy efficiency, placed in in ABS (IP56) enclosure. Device is equipped with removable universal mounting plate, which allows to mount PoE switches with dimensions up to 190x140x50 (WxHxD) [mm]. -
Page 3: Specifications
SWSH-120 Fig. 2. View of PSU. 1.4. Equipment parameters: - specifications (Tab. 2) - operation safety (Tab. 3) - operating parameters (Tab. 4) -
Page 4: Installation
SWSH-120 Table 2. Specifications. ~ 200 – 240 V; 1 A; 50/60 Hz Power supply Inrush current 50 A Efficiency PoE supply 52 V DC; 120 W 48 V – 53 V DC Voltage adjustment range Ripple voltage 150 mV p-p max. -
Page 5: Installation Procedure
SWSH-120 2.2 Installation procedure. CAUTION! Before installation, cut off voltage in 230 V power-supply circuit. To switch power off, use an external switch, in which distance between contacts of all poles in disconnection state is not less than 3mm. -
Page 6: Operating Status Indication
Waste electrical and electronic equipment must not be disposed of with normal household waste. According to the European Union WEEE Directive, waste electrical and electronic equipment should be disposed of separately from normal household waste. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-45 e-mail: sales@pulsar.pl...
