- Page 1 USER MANUAL Edition: 1 from 24.09.2020 Supersedes the edition: SWB-300RACK Buffer power supply system for PoE switches, RACK-3U, 54VDC/4x17Ah/300W...
-
Page 2: Table Of Contents

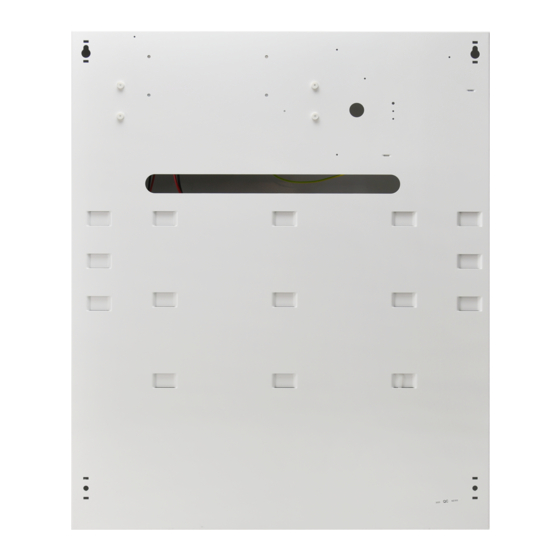

1. Technical description. 1.1. General description. Buffer power supply system for PoE switches, SWB-300RACK is designed for uninterrupted power supply of PoE switches with 54 V DC. It was designed based on high energy efficiency switching power supply module placed in metal enclosure (color RAL 9003). -
Page 3: Description Of Psu Components And Connectors
SWB series 1.3. Description of PSU components and connectors. Table 1. View of PSU (see Fig. 3). Element no. Description L-N power supply connector 230 V, Connector of a protective conductor RACK mounting brackets Brackets for mounting straps Cable bushing TAMPER;... -
Page 4: Specifications
SWB series 1. 4. Specifications: - electrical parameters (tab. 3) - mechanical parameters (tab. 4) - operation safety (tab. 5) Installation space - operating parameters (tab. 6) Table 2. Specifications. ~ 200 – 240 V; 1,5 A; 50/60 Hz... -
Page 5: Installation
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 E-mail: biuro@pulsar.pl,...
