Pulsar SF108-B Manual

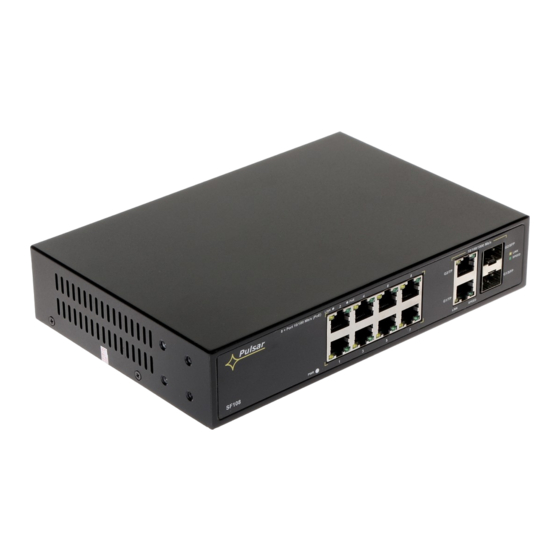

10-port switch with buffer power supply for 8 ip cameras
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Uninterruptible power supply of 8 IP cameras (52 V DC)
Switch 10 ports
8 PoE ports 10/100 Mb/s, (1÷8 ports) (data and power
supply)
2 ports 10/100/1000 Mb/s (G1/TP, G2/TP ports) (UpLink)
2 ports 10/100/1000 Mb/s SFP (G1/SFP, G2/SFP ports)
30 W for each PoE port, supports devices complaint with
the IEEE802.3af/at (PoE+) standard
Approximate backup time: 5h 30min
CONTENTS
SF108-B
SF108-B 10-port switch with buffer power supply
for 8 IP cameras
Edition: 5 from 05.11.2019
Supercedes the edition: 4 from 14.02.2019
Features
:

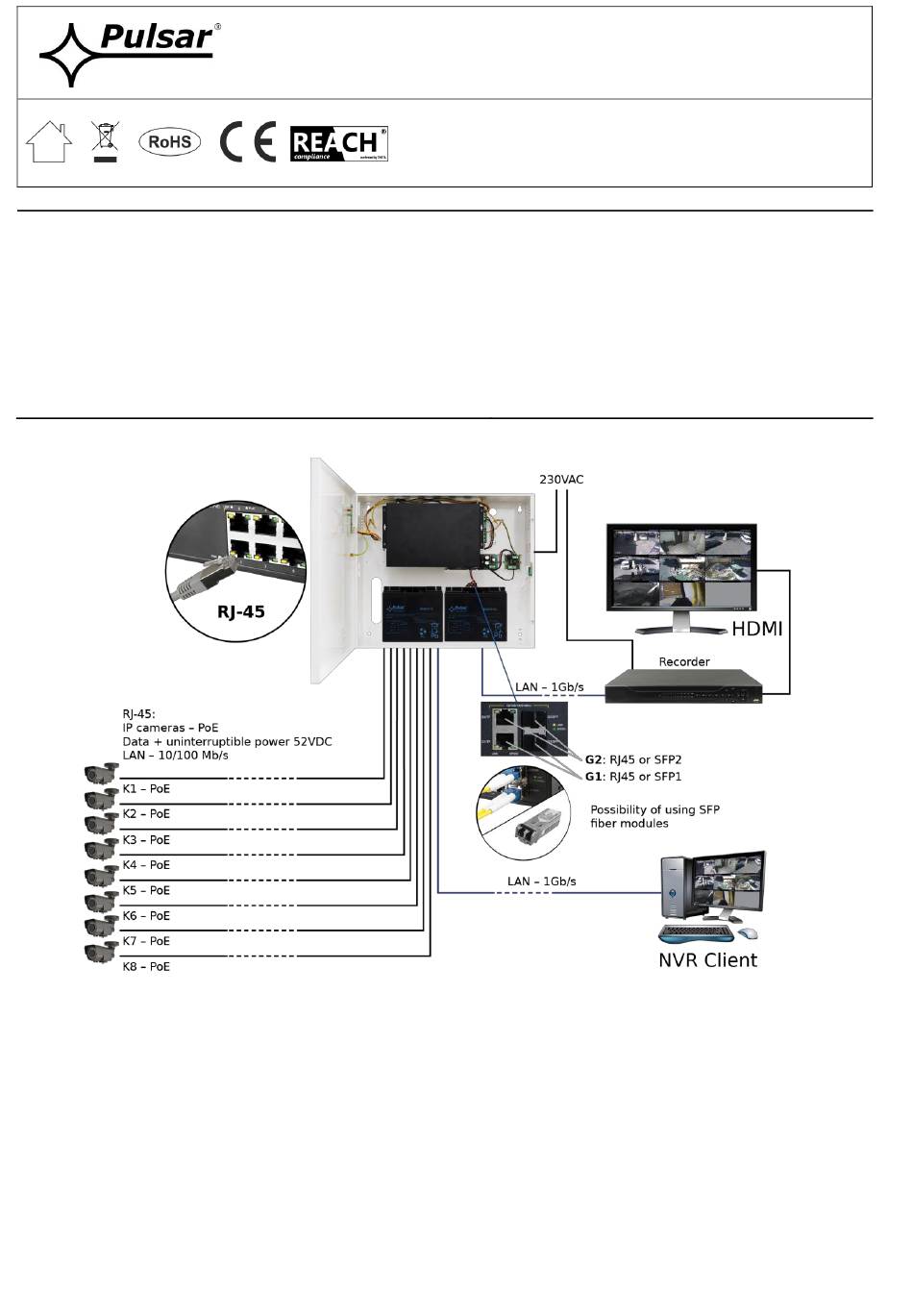

Example of use.
1
v1.3
LED indication
Metal enclosure - color white RAL 9003
with space for two 17 Ah/12 V battery
Supports auto-learning and auto-aging of
MAC addresses (1K size)
warranty - 2 year from the production date
PL
EN**

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF108-B and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar SF108-B

Summary of Contents for Pulsar SF108-B

  • Page 1: Table Of Contents

    SF108-B v1.3 SF108-B 10-port switch with buffer power supply for 8 IP cameras Edition: 5 from 05.11.2019 Supercedes the edition: 4 from 14.02.2019 EN** Features   Uninterruptible power supply of 8 IP cameras (52 V DC) LED indication ...

  • Page 2: Technical Description

    (front panel). The SF108-B is fitted with two LEDs on the front panel (red LED – indicates 230 V power supply of the PSU, green LED indicates the presence of DC voltage).

  • Page 3: Description Of Components And Connectors

    1.3 Description of components and connectors. Fig. 2. The enclosure view. Table 1. ( See Fig . 2) Component No. Description (Fig. 2) Switch PoE SF108 Switch mode buffer power supply unit PSB-1552455 DC/DC52230 Step up DC/DC converter Output filter Tamper –...

  • Page 4: Technical Parameters

    Table 2. (See Fig.3) Component No Description (Fig. 3) 8 x PoE ports (1÷8) 2 x UPLINK ports (G1/TP, G2/TP), (RJ45 socket) 2 x UPLINK ports (G1/SFP, G2/SFP) (SFP socket) 52 V DC power supply socket 1.4 Technical parameters - parameters of the switch (tab.3) - electrical parameters (tab.4) - mechanical parameters (tab.5) - operation safety (tab.6)

  • Page 5: Installation

    Table 5. Mechanical parameters W=420, H=364, D+D =117+14 [+/- 2mm] Dimensions =425, H =369 [+/- 2 mm] The dimensions of the battery 370 x 165 x 80 mm (WxHxD) max compartment Gross/Net weight 5,0 / 5,5 kg Enclosure Steel plate, DC01 1,0 mm color white RAL 9003 Closing Cheese head screw x 2 (at the front), (lock assembly possible) Power supply of the cameras: RJ45 socket...
  • Page 6 Mount the PSU in a selected location and connect the wires. 2. Connect the power cables (230 V) to L-N clips of the PSU. The shock protection circuit shall be performed with a particular care, i.e. the yellow and green wire coat of the power cable shall stick to one side of the terminal - marked with ‘...

  • Page 7: Indication Of The Device Operation

    3. Indication of the device operation. 3.1 LED indication of operating status. The PSU is equipped with two diodes on the front panel: RED LED:  on – the PSU is supplied with 230 V  off – no 230 V supply GREEN LED: ...

  • Page 8: Operation And Use

    Installation example of the SF108-B battery (Battery not included) 4. Operation and use. 4.1 Overload or short circuit of the PSU output (SCP on). In case of overload, the output voltage is automatically shut off, and so is the LED indicator. The restoration of the voltage takes place immediately after the failure (overload) is over.
