- Page 1 USER MANUAL Edition: 1 from 24.09.2020 Supersedes the edition: SWS-60 Power supply system for PoE switches, 52VDC/60W...
-
Page 2: Table Of Contents

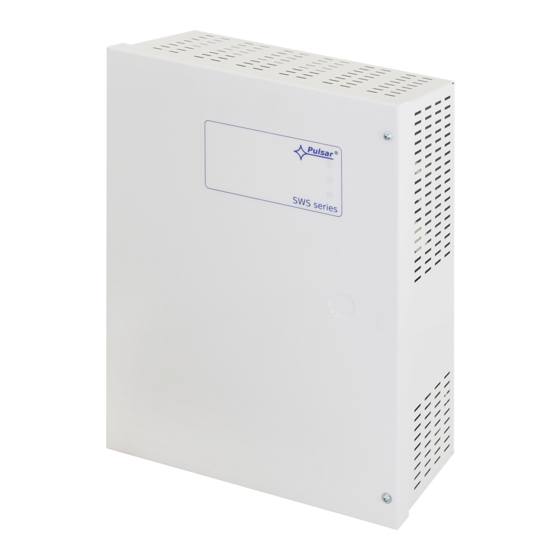

1. Technical description. 1.1. General description. SWS-60 is designed for uninterrupted power supply of PoE switches with 52 V DC. It was designed based on high energy efficiency switching power supply module placed in metal enclosure (color RAL 9003). Enclosure is equipped with a tamper switch signaling opening the door (front panel). -
Page 3: Specifications
SWS series Fig.3. View of PSU. Mounting plate 1.4. Specifications: - electrical parameters (tab. 3) - mechanical parameters (tab. 4) - operation safety (tab. 5) - operating parameters (tab. 6) -
Page 4: Installation
SWS series Table 2. Specifications. ~ 200 – 240 V; 0,7 A; 50/60 Hz Power supply Inrush current 40 A Efficiency PoE supply 52 V DC; 60 W 48 V – 53 V DC Voltage adjustment range Ripple voltage 100 mV p-p max. -
Page 5: Installation Procedure
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law. Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50 E-mail: biuro@pulsar.pl,...
