KGEAR GF162I User Manual

GF162 I - GF162T I
16x2" Line array column speaker - Passive - Passive with Transformer
Thank you for choosing KGEAR!
To ensure proper operation, please carefully read this
owner's manual and safety instruction before using the
product. After reading this manual, be sure to keep it for
future reference. If you have any questions about your
new device please contact K-array customer service at
info@kgear.it or contact the local distributor in your
country.

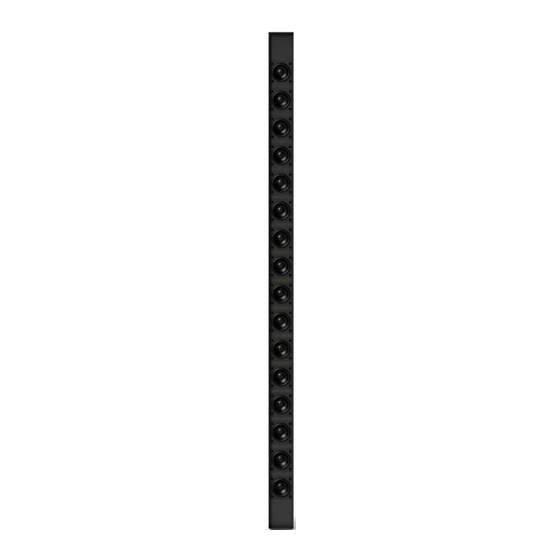

GF162 I, GF162T I are the largest and minimalist line
array elements of the GF family in a practical and
compact column format and resistant frame. The
GF162 I and GF162T comprise 16x2" ferrite magnet
woofers closely-spaced into a recycled ABS enclosure,
featuring PAT (Pure Array Technology).
These columns speakers are the perfect solution
for speech reproduction with high definition and
intelligibility, thanks to their directivity and a narrow
vertical dispersion, as well as music reproduction
when coupled with a KGEAR subwoofer.
GF162T I has the feature of an internal transformer
and it is compatible high voltage lines at 70V or 100V
and has different power taps: 4/8/16/32 W @ 70V or
8/16/32/64W @ 70V.
Unpacking
Each KGEAR device is inspected before leaving the
factory. Upon arrival, carefully inspect the shipping
carton, then examine and test your new device. If
you find any damage, immediately notify the shipping
company. Check that the following parts are supplied
with the product:
• 1 x GF162 I - (GF162T) line array column speaker
• 1x Phoenix connector x GF162(Euroblock 1,5/
4-ST-3,81) Dedicated jumper cable to selectable
impedance and connections
• 1x Phoenix connector xGF162T I (Euroblock 1,5/
5-ST-3,81)
• 2x Wall mount L-bracket + screws and covers.
GF162 I Rear Panel
GF162 I passive speaker is equipped with 1x Phoenix
connector compatible 4 pin - Euroblock 1,5/ 4-ST-3,81
x2
60mm 66mm
2,4in 2,6in
USER GUIDE
208mm
1
8,2in
2
152mm
3
6,0in
4
