Schmalz SCTMi IOL Operating Instructions Manual

Mini compact terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

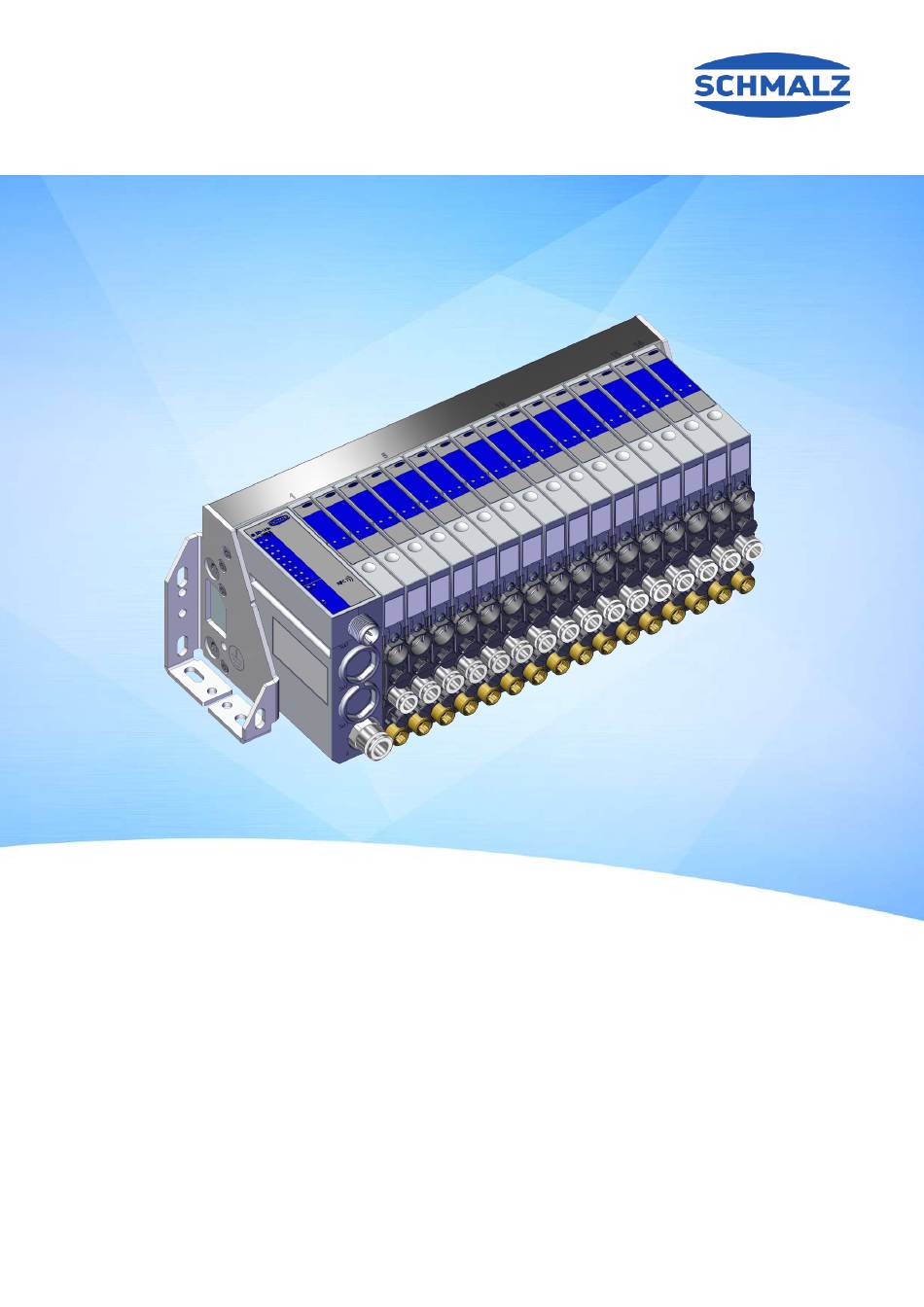

Operating instructions
Mini Compact Terminal SCTMi IOL
WWW.SCHMALZ.COM
EN-US · 30.30.01.03722 · 01 · 04/24
Translation of the original operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCTMi IOL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schmalz SCTMi IOL

Summary of Contents for Schmalz SCTMi IOL

  • Page 1 Operating instructions Mini Compact Terminal SCTMi IOL WWW.SCHMALZ.COM EN-US · 30.30.01.03722 · 01 · 04/24 Translation of the original operating instructions...
  • Page 2 Published by © J. Schmalz GmbH, 04/24 This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Repro- duction of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law. Any modifications to or abridgments of the document are prohibited without explicit writ- ten agreement from J. Schmalz GmbH.

  • Page 3: Table Of Contents

    Contents Contents 1 Important Information........................... 5 Note on Using this Document...................... 5 The technical documentation is part of the product ................  5 Type Plate.............................  5 Trademark ............................ 5 Symbols.............................. 6 2 Fundamental Safety Instructions ......................7 Intended Use ............................ 7 Non-Intended Use..........................
  • Page 4 Contents Reusing the Packaging ........................ 44 7 Installation ............................45 Installation Instructions ........................ 45 Mounting ............................ 45 Pneumatic Connection ........................ 45 Electrical Connection .........................  47 Instructions for Start of Operations.................... 49 8 Operation............................50 Safety Instructions for Operation .....................  50 Checking for Correct Installation and Function................

  • Page 5: Important Information

    ð Failure to follow the instructions in these Operating instructions may result in injuries! ð Schmalz is not liable for damage or malfunctions that result from failure to heed these instructions. If you still have questions after reading the technical documentation, contact Schmalz Service at: www.schmalz.com/services...

  • Page 6: Symbols

    1 Important Information 1.5   Symbols This symbol indicates useful and important information. ü This symbol represents a prerequisite that must be met before an action is performed. 4 This symbol represents an action to be performed. ð This symbol represents the result of an action. Actions that consist of more than one step are numbered: 1.

  • Page 7: Fundamental Safety Instructions

    2   Fundamental Safety Instructions 2.1   Intended Use The mini compact terminal (SCTMi IOL) is designed to generate a vacuum for gripping and transporting objects when used in conjunction with suction cups. The electrical control signals are transmitted through corresponding IO-Link communication lines.

  • Page 8: Warnings In This Document

    2 Fundamental Safety Instructions 2.4   Warnings in This Document Warnings warn against hazards that may occur when handling the product. The signal word indicates the level of danger. Signal word Meaning Indicates a medium-risk hazard that could result in death or serious injury if WARNING not avoided.

  • Page 9: Modifications To The Product

    4 Do not look into vacuum openings such as suction lines and hoses. 2.6   Modifications to the Product Schmalz assumes no liability for consequences of modifications over which it has no control: 1. The product must be operated only in its original condition as delivered.

  • Page 10: Product Description

    3 Product Description 3   Product Description 3.1   Product Name The breakdown of the item designation (e.g. SCTMi-IOL-E16-ABC00234C) is as follows: Property Variants Type SCTMi (mini compact terminal) Bus module IOL = IO-Link EIP = EtherNetIP ECT = EtherCat PNT = ProfiNet Number of ejectors (E) E2 = 2 ejectors, Number of valves (V) V4 = 4 valves,...

  • Page 11: Components Of The Mini Compact Terminal

    3 Product Description The counting method for the ejectors starts with ejector 1 next to the bus module (shown from left to right in the figure). Correspondingly, the LED indicators apply to the limit SP2 on the bus module. The product has an IO-Link class B interface, referred to as “IO-Link” for short. The compressed air supply can be connected centrally via the bus module for all the ejectors.

  • Page 12: Bus Module Description

    3 Product Description 3.4   Bus Module Description 3.4.1   Description The bus module ensures communication with the controller. 3.4.2   Bus Module Displays Bus module Item Meaning Status Description “IO-Link” LED No communication Flashing IOL communication okay green “Sensor volt- No sensor supply voltage age” LED Green Voltage okay Flashing...
  • Page 13 3 Product Description IO-Link devices have parameters which are readable or writable via the IO-Link protocol. Parameters can therefore be changed during operation via the higher level controller. Since the sensor and actuator pa- rameters are device-specific, parameter information is available for each device in the form of an IODD (IO Device Description).
  • Page 14 In addition to pure read access, the app allows you to ac- tively write the parameters of the device via NFC. The “Schmalz ControlRoom” app is available in the Google Play Store or Ap- ple App Store.

  • Page 15: Description Of The Ejector

    3 Product Description 3.5   Description of the Ejector The compact ejectors of the terminal are supplied with electrical voltage by internal transmission. The electrical connection is used for communication with the control unit of the higher-level machine. The electrical connection and compressed air supply are provided centrally for all the ejectors via the bus mod- ule.
  • Page 16 3 Product Description In the ejector variant IMP, the ejector remains in “Suction” mode if the power supply fails during auto- matic operation. This prevents objects that have been picked up from falling off the suction cup in the event of a power supply failure. This also applies when the ejector is in “venturi nozzle inactive” status with the air saving function activated.
  • Page 17 3 Product Description 3.5.1   LED Indicators on the Ejector The LEDs (1) and (2) indicate the state of the valves for each ejector. In the variant with IMP control, the LED (2) is not active. If the valve is activated, the corresponding LED lights up orange.

  • Page 18: Technical Data

    4 Technical Data 4   Technical Data 4.1   Operation and Storage Conditions Air or neutral gas, filtered to 5 µm, oiled or not oiled Operating medium Class 3-3-3 compressed air quality acc. to ISO 8573-1 3 to 6 bar (optimally 4 to 5 bar) Operating pressure (flow pressure) 6.8 bar Max.

  • Page 19: Performance Data

    4 Technical Data 4.3   Performance Data Type Nozzle 03 Nozzle 05 Nozzle 07 Nozzle 10 Nozzle 12 Nozzle size [mm] Degree of evacuation [mbar] Max. suction rate [l/min] Air consumption for suction [l/min] Air consumption for blow off at 5 bar [l/min] Blow-off flow rate at 5 bar [l/min] Sound pressure level, unobstructed...

  • Page 20: Dimensions

    236.5 271.5 255.5 4.5   Mass The following values are based on terminals that are fully equipped with ejectors (no dummy plate). Variant Mass SCTMi IOL-B 2 0.6 kg SCTMi IOL-B 4 1.01 kg SCTMi IOL-B 6 1.42 kg SCTMi IOL-B 8 1.83 kg...

  • Page 21: Functions Of The Compact Terminal And Ejectors

    5 Functions of the Compact Terminal and Ejectors 5   Functions of the Compact Terminal and Ejectors 5.1   Overview of Functions The SCTMi primarily consists of the IO-Link bus module and 2, 4, 6, 8, 12 or 16 ejectors. A function there- fore refers to either the IO-Link bus module or an ejector. Device status of the overall terminal Many parameters and values are measured with SCTMi monitoring and diagnostic functions.

  • Page 22: User-Specific Localization

    5 Functions of the Compact Terminal and Ejectors Note about replacing the device: All the modifiable parameter data (e.g. switching point settings) is saved in the bus module for each ejec- tor slot. When an ejector is replaced, the previous data from each ejector slot is applied for the new ejec- tor.

  • Page 23: Configuration

    5 Functions of the Compact Terminal and Ejectors 5.4   Configuration NOTE Incorrect configuration Device damage due to incorrect configuration 4 Ensure the device is configured correctly. The following information about the device configuration is available: • The parameter “Read valve type for ejectors 1 to 16” 0x0235 provides infor- mation about the valve type of the respective ejector (0=NC, 1=NO, 3=IMP and 255=Not connected).

  • Page 24: System Commands

    5 Functions of the Compact Terminal and Ejectors 5.5   System Commands System commands are predefined processes for triggering specific functions and are described below. They are controlled by writing parameter “System command” 0x0002 with a predefined value. Offset parame- 2 (0x0002) System command –...

  • Page 25: Access Rights: Pin Code For Nfc Write Protection

    5 Functions of the Compact Terminal and Ejectors 5.5.3   Calibrating the Vacuum Sensor Since the production conditions for the integrated vacuum sensors can vary, we recommend calibrating the sensors once they are installed. To calibrate all the vacuum sensors at the same time, all the vacuum circuits must be open to the atmos- phere.

  • Page 26: Extended Device Status

    5 Functions of the Compact Terminal and Ejectors 5.7   Extended Device Status The category of the pending event code and the current event code (IO-Link event) itself are shown via the ISDU parameter 138 “Extended Device Status”. For more information, see the chapter “IO-Link Events”. There is also a detailed display in the IODD. 5.8   NFC Status This parameter is used to determine the current status of the NFC data transfer.
  • Page 27 5 Functions of the Compact Terminal and Ejectors 5.10   Ejector Functions • Switching points for control and component checks • Air saving functions • Blow-off functions • Setting for the permitted evacuation time t1 • Setting for the permitted leakage • Permanent and erasable counters for the suction cycles and switching fre- quency of the valves •...
  • Page 28 5 Functions of the Compact Terminal and Ejectors rP1 > SP2 > rP2 SP2 > rP2 >= 10 Value range Default value mbar Unit EEPROM System vacuum evaluation: Once the system vacuum reaches the value for SP2, the following responses are triggered: •...
  • Page 29 5 Functions of the Compact Terminal and Ejectors    No Control (Continuous Suction), SP1 in Comparator Mode The ejector produces continuous suction with maximum power. The switch point evaluation for SP1 is operated in comparator mode (window mode) (parameter value 0x01). In comparator mode, the switching point is active when the measurement value is between the upper window point SP1 and the lower window point rP1.
  • Page 30 5 Functions of the Compact Terminal and Ejectors 0x00 = externally controlled blow-off Value range 0x01 = internally controlled blow-off – time-dependent 0x02 = externally controlled blow-off – time-dependent Default value — Unit EEPROM Each ejector offers three blow-off modes for selection:    Externally Controlled Blow-Off The ejector switches to blow-off mode for as long as the signal for “Blow-off”...
  • Page 31 5 Functions of the Compact Terminal and Ejectors EEPROM 5.10.5   Setting the Permissible Leakage The permissible leakage rate is set in millibars per second [mbar/s] in the “Permissible leakage rate for ejectors 1 to 16” parameter 0x006C. The leakage is measured after the air saving function has interrupted suction once switching point SP1 is reached.
  • Page 32 5 Functions of the Compact Terminal and Ejectors Offset parame- 143 (0x008F) 144 (0x0090) Description Erasable vacuum-on counter for ejector Erasable valve operating counter for ejector Indexes 1 to 16 correspond to ejectors 1 to 16 Index Data type uint32 64 byte Length Access...

  • Page 33: Diagnostics And Monitoring Functions Of The Compact Terminal

    5 Functions of the Compact Terminal and Ejectors If the valve screw is turned counterclockwise by more than two turns, the blow-off flow rate remains un- changed; after a further two turns, a slight increase in the torque is noticeable. NOTE! This is a stop, which is destroyed if the screw is now turned any further.
  • Page 34 5 Functions of the Compact Terminal and Ejectors Offset parame- 64 (0x0040) Vacuum for ejectors 1 – 16 Description Ejectors 1 to 16 Index uint16 Data type 32 byte Length Read only Access 0 to 999 Value range Default value mbar Unit EEPROM...
  • Page 35 5 Functions of the Compact Terminal and Ejectors 6 byte Length Access Read only Default value Unit 0.1 V EEPROM In addition, the maximum and minimum values for the U and U operating voltages that were measured since the last activation are logged. The maximum and minimum values can be reset during operation using the appropriate system com- mand.
  • Page 36 5 Functions of the Compact Terminal and Ejectors Vacuum [mbar] Start suction cycle Time [s] The measured evacuation time t0 can be read out using the “Evacuation time t0 for ejectors” parameter 0x0094. The evacuation time t0 is defined as the time (in ms) from the start of a suction cycle, which is started by the “Suction ON”...
  • Page 37 5 Functions of the Compact Terminal and Ejectors    Measuring the Air Consumption The actual air consumption in a suction cycle is calculated taking the system pressure and nozzle size into account. The air consumption from the suction ON signal to the next suction ON signal is determined in the process.
  • Page 38 5 Functions of the Compact Terminal and Ejectors This basic display provides immediate information about the status and all its input and output parame- ters. Parameter 0x0024 Status Description Green (0) Device is operating without any errors (Device is operating prop- erly) Device Status Yellow (1)
  • Page 39 5 Functions of the Compact Terminal and Ejectors 5.11.3   Condition Monitoring [CM] Condition monitoring events that occur during the suction cycle cause the system status indicator light to immediately switch from green to yellow. The specific event that caused this switch can be seen in the Condition Monitoring parameter.
  • Page 40 5 Functions of the Compact Terminal and Ejectors    Monitoring the System Vacuum and Defining Limit Values Each ejector has an integrated sensor for measuring the vacuum. The current vacuum value can be retrieved via IO-Link. The limit values are set via IO-Link. Limit values SP1 and rP1 are used by the control function to control the vacuum.
  • Page 41 5 Functions of the Compact Terminal and Ejectors    Monitoring the Valve Switching Frequency Vacuum [mbar] Suction ON Time [s] When the air saving function is activated and there is a high leakage level in the gripping system, the ejector switches between the Suction and Suction Off states very frequently. The number of valve switch- ing procedures thus increases rapidly within a short time.
  • Page 42 5 Functions of the Compact Terminal and Ejectors The evaluation of the leakage level differentiates between two statuses: Leakage L < permitted value -L- Vacuum If the leakage L is less than the set value “Permissible leakage rate”, • the vacuum continues dropping until the reset point rP1 is reached.
  • Page 43 5 Functions of the Compact Terminal and Ejectors    Evaluate System Pressure The internal analysis functions on the ejectors sometimes require the system pressure with which the ejec- tors are operated. To make the results more precise, the actual pressure level can be communicated to the compact terminal via the process data.

  • Page 44: Transportation And Storage

    1. Compare the entire delivery with the supplied delivery notes to make sure nothing is missing. 2. Damage caused by defective packaging or occurring in transit must be reported immediately to the carrier and J. Schmalz GmbH. 6.2   Removing the Packaging The device is delivered packaged in a cardboard box.

  • Page 45: Installation

    7 Installation 7   Installation 7.1   Installation Instructions CAUTION Improper installation or maintenance Personal injury or damage to property 4 Prior to installation and before maintenance work, the product must be disconnected from the power supply and secured against unauthorized restart. For safe installation, the following instructions must be observed: 1.
  • Page 46 With such terminals, Schmalz recommends the use of the auxiliary supply to provide additional com- pressed air. The auxiliary supply (3) can be on both ends of the terminal; Schmalz recommends connecting the supply on the upper connection on the right.

  • Page 47: Electrical Connection

    7 Installation 1. Remove the size 4 screw in the auxiliary supply (3). 2. Install the mounting element with the 1/8" in- ternal thread (e.g. plug connection) for the compressed air hose. 3. Connect the compressed air hose. 7.4   Electrical Connection WARNING Electric shock Risk of injury...
  • Page 48 Sensor ground Black IO-Link Gray Actuator ground When using a Schmalz connection cable (see “Accessories”)    Static Electricity NOTE Static Electricity Failure to comply may result in damage to property 4 If ESD-sensitive parts come into contact with the product, you must ensure that the product is grounded.

  • Page 49: Instructions For Start Of Operations

    The IO-Link master must be connected in the configuration of the automation system in the same way as other fieldbus components. To integrate the device into a higher-level controller, a device description file (IODD = IO Device Descrip- tion) is available. The IODD is available at www.schmalz.com. EN-US · 30.30.01.03722 · 01 · 04/24 49 / 70...

  • Page 50: Operation

    8 Operation 8   Operation 8.1   Safety Instructions for Operation WARNING Suspended load Risk of serious injury 4 Do not walk, stand or work under suspended loads. WARNING Change of output signals when product is switched on or plug is connected Risk of injury to persons and damage to property due to uncontrolled movements of the higher-level machine/system! 4 The electrical connection must be performed only by specialists who can evaluate the effects of signal changes on the overall system.

  • Page 51: Checking For Correct Installation And Function

    8 Operation CAUTION When the system is started in automatic operation, components move without advanced warning. Risk of injury! 4 Ensure that the danger zone of the machine or system is free of persons during auto- matic operation. 8.2   Checking for Correct Installation and Function Before starting the handling process, check for proper installation and function.

  • Page 52: Troubleshooting

    9 Troubleshooting 9   Troubleshooting 9.1   Troubleshooting Fault Possible cause Solution 4 Check electrical connection and pin No IO-Link communica- Incorrect electrical connection. tion assignment. Master not correctly configured. 4 Check configuration of the master. The port must be set to IO-Link. 4 Check for the appropriate IODD. IODD connection does not work.
  • Page 53 9 Troubleshooting Control unit error code: Error code Fault Possible cause Solution Bit 0 Internal EEPROM Operating voltage was dis- 1. Reset to factory settings. error connected too quickly after a 2. Use engineering tool to import a parameter change, saving valid dataset.

  • Page 54: Maintenance

    4 The compact terminal must only be operated with a silencer and press-in screens. Maintenance work or repairs that go beyond the activities described here may not be carried out by the operator of the product without consulting Schmalz. 10.2   Cleaning the Device 1.

  • Page 55: Replacing The Silencer

    10 Maintenance 10.3   Replacing the Silencer The open silencers installed on both sides may become dirty due to the heavy infiltration of dust, oil, and so on, which may reduce the suction capacity. We do not recommend cleaning the silencers because of capillary action in the porous material.
  • Page 56 10 Maintenance 4. Install the new silencer (2) in the correct posi- tion in the recess on the terminal. 5. Fasten the mounting bracket to the terminal in the correct position using all the screws. Coat the screws with a light-duty thread lock- ing compound and tighten with a torque of 1 Nm.

  • Page 57: Replacing Ejectors

    10 Maintenance 10.4   Replacing Ejectors The figures in this document may differ from the delivered product. Either only ejectors (E) or only valves (V) are installed in a mini compact terminal. Replacing an NO or NC ejector with an IMP ejector (and vice versa) is not possible. IMP ejec- tors cannot be operated together with NO or NC ejectors within one terminal.
  • Page 58 10 Maintenance 3. Carefully pull the ejector (2) out of the bracket in the direction of the removed screw. 4. If the printed-circuit board adapter (3) is still on the terminal side, carefully remove it. O-Ring 5. Before mounting the ejector or dummy plate, check the position and condition of the O- rings.
  • Page 59 10 Maintenance 6. Carefully press in the new ejector (2) and printed-circuit board adapter (3) correctly at the free position by hand until they stop flush Check that the three O-rings are positioned correctly and tighten the hex socket head screw (1) with a maximum tightening torque O-Ring of 2 Nm...

  • Page 60: Warranty

    11 Warranty 11   Warranty This system is guaranteed in accordance with our general terms of trade and delivery. The same applies to spare parts, provided that these are original parts supplied by us. We are not liable for any damage resulting from the use of non-original spare parts or accessories. The exclusive use of original spare parts is a prerequisite for the proper functioning of the system and for the validity of the warranty.

  • Page 61: Spare And Wearing Parts, Accessories

    12 Spare and Wearing Parts, Accessories 12   Spare and Wearing Parts, Accessories 12.1   Spare and Wearing Parts Maintenance work may only be carried out by qualified personnel. WARNING Risk of injury due to incorrect maintenance or troubleshooting 4 Check the proper functioning of the product, especially the safety features, after every maintenance or troubleshooting operation.

  • Page 62: Accessories

    12 Spare and Wearing Parts, Accessories Part no. Description Type 10.02.02.06966 Fastening screw for bus module Spare part 12.2   Accessories Part no. Description Note 21.04.05.00158 Connection cable M12, 5-pin to M12, 5-pin connector, 1 m, A-coded 21.04.05.00211 Connection cable M12, 5-pin, straight cable outlet, with PUR cable, 2 m, A- coded 21.04.05.00266 Connection cable...

  • Page 63: Decommissioning And Disposal

    13 Decommissioning and Disposal 13   Decommissioning and Disposal 13.1   Disposing of the Product 1. Dispose of the product properly after replacement or decommissioning. 2. Observe the country-specific guidelines and legal obligations for waste prevention and disposal. 13.2   Materials Used Component Material Housing PA6-GF, PC-ABS, PA12 Inner components Aluminum alloy, anodized aluminum alloy, brass, galvanized steel, stainless- steel, PU, POM...

  • Page 64: Declarations Of Conformity

    14 Declarations of Conformity 14   Declarations of Conformity 14.1   EU Declaration of Conformity The manufacturer Schmalz confirms that the product described in these instructions fulfills the following applicable EU directives: 2014/30/EU Electromagnetic Compatibility 2011/65/EU Directive on the restriction of the use of certain hazardous substances in...

  • Page 65: Data Dictionary

    15 Data Dictionary 15   Data Dictionary See also 2 SCTMi_Data_Dictionary_20240405.pdf [} 66] EN-US · 30.30.01.03722 · 01 · 04/24 65 / 70...
  • Page 66 CONFIDENTIAL IO-Link Data Dictionary SCTMi 21.10.01.00245 12.04.2024 J. Schmalz GmbH Johannes-Schmalz-Str. 1, D 72293 Glatten Tel.: +49(0)7443/2403-0 www.schmalz.com info@schmalz.de IO-Link Implementation Vendor ID 234 (0xEA) Device ID 100272 (0x0187B0) SIO-Mode IO-Link Revision IO-Link Bitrate 38.4 kBit/sec (COM2) Minimum Cycle Time...
  • Page 67 Size Access Default Value Remark Range  Identification  Device Management Vendor name 0…32 bytes 0x0010 J. Schmalz GmbH Manufacturer designation Vendor text 0…32 bytes 0x0011 Innovative Vacuum Solutions Vendor text Product name 0…32 bytes 0x0012 Product name 0…32 bytes...
  • Page 68 CONFIDENTIAL  Configuration 0 = NC, 1 = NO, 1…16 Read Valvetype for ejektors #1 - #16 0x0235 16x1 bytes 0,1,3,255 3 = IMP, 255 = not connected Subindex corresponds to ejector number 0 = NC, 1 = NO, Write Valvetype for ejektors #1 - #16 (only valid 0,1,3, 254, 1…16 0x0236...
  • Page 69 CONFIDENTIAL  Timing Total cycle time of last cycle for ejectors #1 - Unit: 1ms 1…16 0x00A6 16x4 bytes Subindex corresponds to ejector number Unit: 1ms Evacuation time t0 of last suction-cycle for 1…16 0x0094 16x2 bytes Time from suction start to reaching SP2 ejectors #1 - #16 Subindex corresponds to ejector number Unit: 1ms...
  • Page 70 At Your Service Worldwide Vacuum automation Handling systems WWW.SCHMALZ.COM/AUTOMATION WWW.SCHMALZ.COM/EN-US/VACUUM-LIFTERS- AND-CRANE-SYSTEMS J. Schmalz GmbH Johannes-Schmalz-Str. 1 72293 Glatten, Germany T: +49 (0) 7443 2403-0 schmalz@schmalz.de WWW.SCHMALZ.COM...
