where inspiration flows
This instruction booklet covers these models:
CAM-100/SB, CAM-100/CC, CAM-200/SB, CAM-200/CC
(All finish options)
Wedmore Road, Cheddar, Somerset, England BS27 3EB
tel 01934 744466.
aftersales @ vado.com
www.vado.com
Version 1, 1-1-24
Vado
fax 01934 744345
CAMEO
Installation Guide

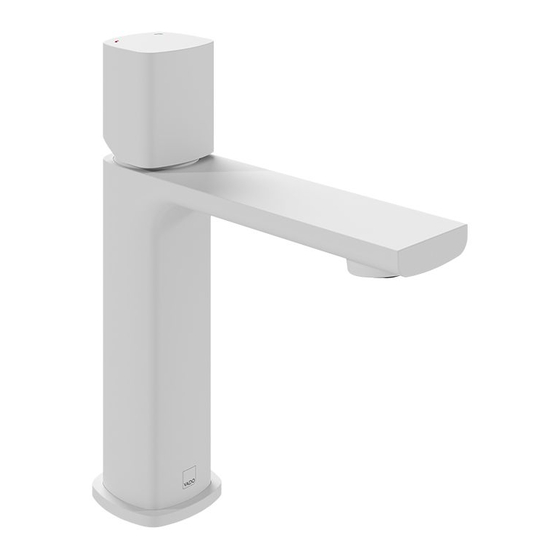

Mono basin mixer with and without clicker waste
CAM-100/SB
CAM-100/CC
CAM-200/SB
CAM-200/CC
Cleaning Instructions
If these instructions are not followed, your guarantee may
be invalidated.
- Clean only with water and a soft damp cloth
- Do not use any aggressive/corrosive cleaning products
- Do not use abrasive cloths
Due care needs to be taken to ensure the appearance is retained.
For further cleaning instructions, please consult this product's user guide.
Keep for future reference
CAM-100/SB
CAM-200/SB
Advertisement
Related Manuals for VADO CAMEO CAM-100/SB
Summary of Contents for VADO CAMEO CAM-100/SB
- Page 1 - Do not use abrasive cloths tel 01934 744466. fax 01934 744345 Due care needs to be taken to ensure the appearance is retained. aftersales @ vado.com For further cleaning instructions, please consult this product's user guide. www.vado.com Keep for future reference...
- Page 2 Please read these instructions carefully before starting installation and keep for future reference. Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and will invalidate the guarantee.
- Page 3 39mm 160mm 121mm 121mm 39mm 39mm 50mm 50mm...
- Page 4 CAM-100/CC & CAM-200/CC only Ø35mm 60mm...
- Page 5 Please note: For illustration purpose Only applies to the CAM-100/CC the CAM-200 is shown throughout this and CAM-200/CC. Plug installation. Please follow the same Disassemble the push waste. procedure for the CAM-100. Unscrew the plug from the waste flange. Before installing your new mixer, flush Remove the bolt from the waste flange Hex key through the pipe work to ensure removal...
