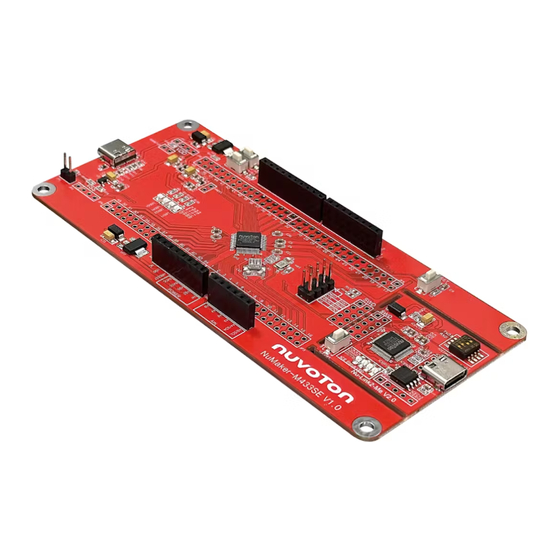

NuMaker-M433SE
®
®
ARM
Cortex
-M
32-bit Microcontroller
NuMaker-M433SE
User Manual
®
NuMicro
M433 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system
design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Feb.
6, 2024
Page 1 of 39
Rev 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuMicro M433 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nuvoton NuMicro M433 Series

Summary of Contents for Nuvoton NuMicro M433 Series

  • Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions.

  • Page 2: Table Of Contents

    2.5.13 Nu-Link2-Me ..................23 Quick Start ..................24 Toolchains Supporting ................24 Nuvoton Nu-Link Driver Installation ............. 24 BSP Firmware Download ................. 26 Hardware Setup ................... 26 Find the Example Project ................. 28 Execute the Project under Toolchains ............28 Keil MDK .......................
  • Page 3 NuMaker-M433SE Nu-Link2-Me ..................34 M433 platform ..................35 Extension Connector ................36 Advance Connector ................37 REVISION HISTORY ................38 Feb. 6, 2024 Page 3 of 39 Rev 1.00...
  • Page 4 NuMaker-M433SE List of Figures Figure 1-1 NuMaker-M433SE Board ....................6 Figure 2-1 Front View of NuMaker-M433SE ..................8 Figure 2-2 Rear View of NuMaker-M433SE ..................9 Figure 2-3 Arduino UNO Compatible Extension Connectors ............10 Figure 2-4 M433SE8AE Extension Connectors ................12 Figure 2-5 External Power Supply Sources on Nu-Link2-Me ............
  • Page 5 NuMaker-M433SE List of Tables Table 2-1 Arduino UNO Extension Connectors and M433SE8AE Mapping GPIO List ....11 Table 2-2 Extended Connector JP3 Interface with M433SE8AE GPIO ........13 Table 2-3 Extended Connector JP4 Interface with M433SE8AE GPIO ........14 Table 2-4 Extended Connector JP5 Interface with M433SE8AE GPIO ........15 Table 2-5 Extended Connector JP6 Interface with M433SE8AE GPIO ........

  • Page 6: Overview

    NuMaker-M433SE OVERVIEW This user manual is aimed to give users a fast introduction to the use of NuMaker-M433SE board. The NuMaker-M433SE consists of two parts, a M433 platform and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M433SE allows users to quickly develop and easily program and debug application.
  • Page 7 NuMaker-M433SE ⚫ On-board Nu-Link2-Me debugger and programmer: ◆ Debug through SWD interface ◆ On-line/off-line programming ◆ Virtual COM port function Feb. 6, 2024 Page 7 of 39 Rev 1.00...

  • Page 8: Numaker-M433Se Overview

    NuMaker-M433SE NUMAKER-M433SE OVERVIEW Front View Arduino UNO Compatible Extension Connector Input Button Nu-Link2-Me M433 Platform Reset Button External V Connector Ammeter VCOM Switch External V Connector USB FS Connector ICE USB Connector ICE Chip: M48SSIDAE Power LED ICE Status LED Off-line Program Button External V Connector...

  • Page 9: Rear View

    NuMaker-M433SE Rear View Figure 2-2 shows the main components and connectors from the rear side of NuMaker-M433SE. The following lists components and connectors from the rear view: ⚫ Nu-Link2-Me ◆ MCUVCC Power Switch (ICEJPR1) ◆ ICEVCC Power Switch (ICEJPR2) ICEVCC Power Switch MCUVCC Power Switch Figure 2-2 Rear View of NuMaker-M433SE Feb.

  • Page 10: Arduino Uno Compatible Extension Connectors

    NuMaker-M433SE Arduino UNO Compatible Extension Connectors Figure 2-3 shows the Arduino UNO compatible extension connectors. UART1_RXD EPWM0_CH3 PB.2 UART1_TXD EPWM0_CH2 PB.3 BPWM0_CH2 PA.9 BPWM0_CH3 PA.8 BPWM0_CH0 PA.11 BPWM0_CH1 PA.10 EPWM0_CH3 PE.4 EPWM0_CH2 PE.5 QSPI0_MISO1 EPWM0_CH0 PA.5 QSPI0_MOSI1 EPWM0_CH1 PA.4 QSPI0_SS EPWM0_CH2 PA.3 QSPI0_MOSI0 EPWM0_CH5...

  • Page 11: Table 2-1 Arduino Uno Extension Connectors And M433Se8Ae Mapping Gpio List

    NuMaker-M433SE NuMaker-M433SE NuMaker-M433SE Header Header Compatible to Compatible to GPIO Pin of M433 GPIO Pin of M433 Arduino UNO Arduino UNO NU3.1 PB.2 NU2.6 PB.1 NU3.2 PB.3 NU2.5 PB.0 NU3.3 PA.9 NU2.4 PB.9 NU3.4 PA.8 NU2.3 PB.8 NU3.5 PA.11 NU2.2 PB.7 NU3.6 PA.10...

  • Page 12: Pin Assignment For Extension Connectors

    NuMaker-M433SE Pin Assignment for Extension Connectors The NuMaker-M433SE provides the M433SE8AE target chip onboard and full pins extension connectors (JP3, JP4, JP5 and JP6). The Figure 2-4 shows the M433SE8AE extension connectors. Pin17 ~ Pin32 Pin1 ~ Pin16 Pin33 ~ Pin48 Pin49 ~ Pin64 Figure 2-4 M433SE8AE Extension Connectors Feb.

  • Page 13: Table 2-2 Extended Connector Jp3 Interface With M433Se8Ae Gpio

    NuMaker-M433SE M433SE8AE M433SE8AE Header Header Pin No. Function Pin No Function JP3.1 PB.6 JP3.2 PB.6 JP3.3 PB.5 JP3.4 PB.5 JP3.5 PB.4 JP3.6 PB.4 JP3.7 PB.3 JP3.8 PB.3 JP3.9 PB.2 JP3.10 PB.2 JP3.11 PB.1 JP3.12 PB.1 JP3.13 PB.0 JP3.14 PB.0 JP3.15 PA.11 JP3.16 PA.11...

  • Page 14: Table 2-3 Extended Connector Jp4 Interface With M433Se8Ae Gpio

    NuMaker-M433SE M433SE8AE M433SE8AE Header Header Pin No. Function Pin No Function JP4.1 XT1_OUT JP4.2 XT1_OUT JP4.3 PC.7 JP4.4 PC.7 JP4.5 PC.6 JP4.6 PC.6 JP4.7 PA.7 JP4.8 PA.7 JP4.9 PA.6 JP4.10 PA.6 JP4.11 JP4.12 JP4.13 3VCC JP4.14 3VCC JP4.15 LDO_CAP1 JP4.16 LDO_CAP1 JP4.17 PA.5...

  • Page 15: Table 2-4 Extended Connector Jp5 Interface With M433Se8Ae Gpio

    NuMaker-M433SE M433SE8AE M433SE8AE Header Header Pin No. Function Pin No Function JP5.1 ICEDAT JP5.2 ICEDAT JP5.3 ICECLK JP5.4 ICECLK JP5.5 PC.5 JP5.6 PC.5 JP5.7 PC.4 JP5.8 PC.4 JP5.9 PC.3 JP5.10 PC.3 JP5.11 PC.2 JP5.12 PC.2 JP5.13 PC.1 JP5.14 PC.1 JP5.15 PC.0 JP5.16 PC.0...

  • Page 16: Table 2-5 Extended Connector Jp6 Interface With M433Se8Ae Gpio

    NuMaker-M433SE M433SE8AE M433SE8AE Header Header Pin No. Pin Name Pin No Pin Name JP6.1 JP6.2 JP6.3 LDO_CAP2 JP6.4 LDO_CAP2 JP6.5 3Vcc JP6.6 3Vcc JP6.7 PC.14 JP6.8 PC.14 JP6.9 PB.15 JP6.10 PB.15 JP6.11 PB.14 JP6.12 PB.14 JP6.13 PB.13 JP6.14 PB.13 JP6.15 PB.12 JP6.16 PB.12...

  • Page 17: System Configuration

    NuMaker-M433SE System Configuration 2.5.1 VIN Power Source Table 2-6 presents the Vin power source. Net Name in Connector Comment Schematic Board external power source, with voltage range from 7 V to 12 V. The voltage regulator UP2 converts the NU1 NU1 pin8 NU1_VIN pin8 input voltage to 5 V and supplies it to NuMaker-...

  • Page 18: Power Sources

    NuMaker-M433SE 2.5.4 1.8V Power Sources Table 2-9 presents the 1.8 V power source. Voltage Regular 5V Source Comment ICEUP2 converts USB_HS_VBUS to 1.8V and supplies ICEUP2 USB_HS_VBUS 1.8V to M433 platform or ICE chip. Table 2-9 1.8V Power Sources 2.5.5 Power Connectors Table 2-10 presents the power connectors.

  • Page 19: Power Supply Models

    NuMaker-M433SE 2.5.8 Power Supply Models External Power Supply through Nu-Link2-Me to Target Chip The external power supply source on Nu-Link2-Me is shown in Figure 2-5. ICE USB Connector (ICEJ5) Nu-Link2-Me Figure 2-5 External Power Supply Sources on Nu-Link2-Me To use ICEJ5 as external power supply source with Nu-Link2-Me, please follow the below steps: 1.

  • Page 20: Figure 2-6 External Power Supply Sources On M433 Platform

    NuMaker-M433SE External Power Supply through M433 platform to Target Chip The external power supply sources on M433 platform are shown in Figure 2-6. External V Connector (JP1) USB Power Connector (J11) External V Connector (JP2) NU1 pin8 (Vin) Figure 2-6 External Power Supply Sources on M433 platform To use Vin or J11 as external power supply source, please follow the below steps: 1.

  • Page 21: Figure 2-7 Separate The Nu-Link2-Me From Numaker-M433Se

    NuMaker-M433SE External V Connector (JP1) USB Power Connector (J11) External V Connector (JP1) " Separate Nu-Link2-Me NU1 pin8 (Vin) Figure 2-7 Separate the Nu-Link2-Me from NuMaker-M433SE Table 2-14 presents all power models when supplies external power through M433 platform. The M433 platform external power sources are highlighted in yellow.

  • Page 22: External Reference Voltage Connector

    NuMaker-M433SE 2.5.9 External Reference Voltage Connector Table 2-16 presents the external reference voltage connector. Connector Comment Connector for user to easily connect to the external reference voltage pin VREF1 of the target chip. User needs to remove the L5 ferrite bead. Table 2-15 External Reference Voltage Connector 2.5.10 Ammeter Connector Table 2-16 presents the ammeter connector.

  • Page 23: 2.5.12 Push-Buttons

    NuMaker-M433SE 2.5.12 Push-Buttons Table 2-18 presents the push-buttons. Component Comment ICESW1 Off-line program button to start off-line programming the target chip. Reset button to reset the target chip. GPIO input button for PD.2. GPIO input button for PD.3. Table 2-18 Push-Buttons 2.5.13 LEDs Table 2-19 presents the LEDs.

  • Page 24: Quick Start

    KEIL MDK Nuvoton edition M0/M23 ⚫ IAR EWARM ⚫ NuEclipse (GCC)(Windows) ⚫ NuEclipse (GCC)(Linux) Nuvoton Nu-Link Driver Installation Download and install the latest Nuvoton Nu-Link Driver. ⚫ Download and install Nu-Link_Keil_Driver when using Keil MDK. ⚫ Download and install Nu-Link_IAR_Driver when using IAR EWARM.

  • Page 25: Figure 3-2 Nu-Link Usb Driver Installation

    NuMaker-M433SE Figure 3-2 Nu-Link USB Driver Installation Feb. 6, 2024 Page 25 of 39 Rev 1.00...

  • Page 26: Bsp Firmware Download

    2. Connect the ICE USB connector shown in Figure 3-4 to the PC USB port through USB cable. Figure 3-4 ICE USB Connector 3. Find the “Nuvoton Virtual COM Port” on the Device Manger as Figure 3-5. Feb. 6, 2024 Page 26 of 39 Rev 1.00...

  • Page 27: Figure 3-5 Device Manger

    NuMaker-M433SE Figure 3-5 Device Manger 4. Open a serial port terminal, PuTTY for example, to print out debug message. Set the speed to 115200. Figure 3-6 presents the PuTTY session setting. Figure 3-6 PuTTY Session Setting Feb. 6, 2024 Page 27 of 39 Rev 1.00...

  • Page 28: Find The Example Project

    NuMaker-M433SE Find the Example Project Use the “Template” project as an example. The project can be found under the BSP folder as shown in Figure 3-7.  M433_Series_BSP_CMSIS_V3.XX.XXX  SampleCode  Template   Keil  Figure 3-7 Template Project Folder Path Execute the Project under Toolchains Open and execute the project under the toolchain.

  • Page 29: Figure 3-9 Project File Migrate To Version 5 Format

    Figure 3-9 Project File Migrate to Version 5 Format 2. Make sure the debugger is “Nuvoton Nu-Link Debugger” as shown in Figure 3-10 and Figure 3-11. Note: If the dropdown menu in Figure 3-10 does not contain “Nuvoton Nu-Link Debugger” item, please rework section 3.2.

  • Page 30: Figure 3-11 Programming Setting In Options Window

    NuMaker-M433SE Figure 3-11 Programming Setting in Options Window 3. Rebuild all target files. After successfully compile the project, download code to the flash memory. Click “Start/Stop Debug Section” button can enter debug mode. 1. Rebuild 2. Successfully compile 3. Download 4.

  • Page 31: Figure 3-13 Keil Mdk Debug Mode

    NuMaker-M433SE source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc. 3 1 2 1. Run 2. Stop 3. Reset Figure 3-13 Keil MDK Debug Mode Figure 3-14 Debug Message on Serial Port Terminal Windows Feb. 6, 2024 Page 31 of 39 Rev 1.00...

  • Page 32: Iar Ewarm

    NuMaker-M433SE 3.6.2 IAR EWARM This section provides steps to beginners on how to run a project by using IAR EWARM. 1. Double click the “Template.eww” to open the project. 2. Make sure the toolbar contain “Nu-Link” item as shown in Figure 3-15. Note: If the toolbar does not contain “Nu-Link”...

  • Page 33: Nueclipse

    NuMaker-M433SE 4. Figure 3-17 shows the debug mode under IAR EWARN. Click “Go” and the debug message will be printed out as shown in Figure 3-18. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc.

  • Page 34: Numaker-M433Se Schematics

    NuMaker-M433SE NUMAKER-M433SE SCHEMATICS Nu-Link2-Me Figure 4-1 shows the Nu-Link2-Me circuit. The Nu-Link2-Me is a debugger and programmer that supports on-line programming and debugging through SWD interface. 3.3V USB 2.0 HIGH SPEED DEVICES ICER1 USB_HS_VBUS O f f - page C onnect or 200 1% USB_HS_CAP R0603...

  • Page 35: M433 Platform

    NuMaker-M433SE M433 platform Figure 4-2 shows the M433 platform circuit. P1 - P16 P33 - P48 PB.6 EADC0_CH6 PF.0 ICE_DAT TICEDAT PB.5 I2C0_SCL PF.1 ICE_CLK NU4_SCL TICECLK PB.4 I2C0_SDA PC.5 NU4_SDA PB.3 UART1_TX PC.4 PB.2 UART1_RX PC.3 SPI1_MISO NU5_MISO PB.1 I2C1_SCL PC.2 SPI1_MOSI...

  • Page 36: Extension Connector

    NuMaker-M433SE Extension Connector Figure 4-3 shows extension connectors of NuMaker-M433SE. P1 - P16 P32 - P48 NU4_SCL I2C_SCL PB.6 EADC0_CH6 PF.0 ICE_DAT TICEDAT NU4_SDA I2C_SDA PB.5 I2C0_SCL PF.1 ICE_CLK NU4_SCL TICECLK VREF VREF PB.4 I2C0_SDA PC.5 NU4_SDA MCUVCC_DIODE PB.3 UART1_TX PC.4 TICERST MCU_RESET...

  • Page 37: Advance Connector

    NuMaker-M433SE Advance Connector Figure 4-3 shows advance connectors of NuMaker-M433SE. USB_VBUS PA.12 USB_VBUS USB_VBUS NU1_5VCC PA.13 FSUSB_D- USB_D- PA.14 FSUSB_D+ USB_D+ R129 PA.15 USB_ID USB_ID USB_EN PC.14 USB_ST USB_ST EN/EN# 10uF/10V(0805) PB.15 USB_EN R0603 USB_EN USB_ID 0.1u 1uF/16V C0805 NU1_5VCC NU1_5VCC USB_ST 10KR...

  • Page 38: Revision History

    NuMaker-M433SE REVISION HISTORY Date Revision Description 2024.02.06 1.00 ⚫ Initially issued. Feb. 6, 2024 Page 38 of 39 Rev 1.00...
  • Page 39 NuMaker-M433SE Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
