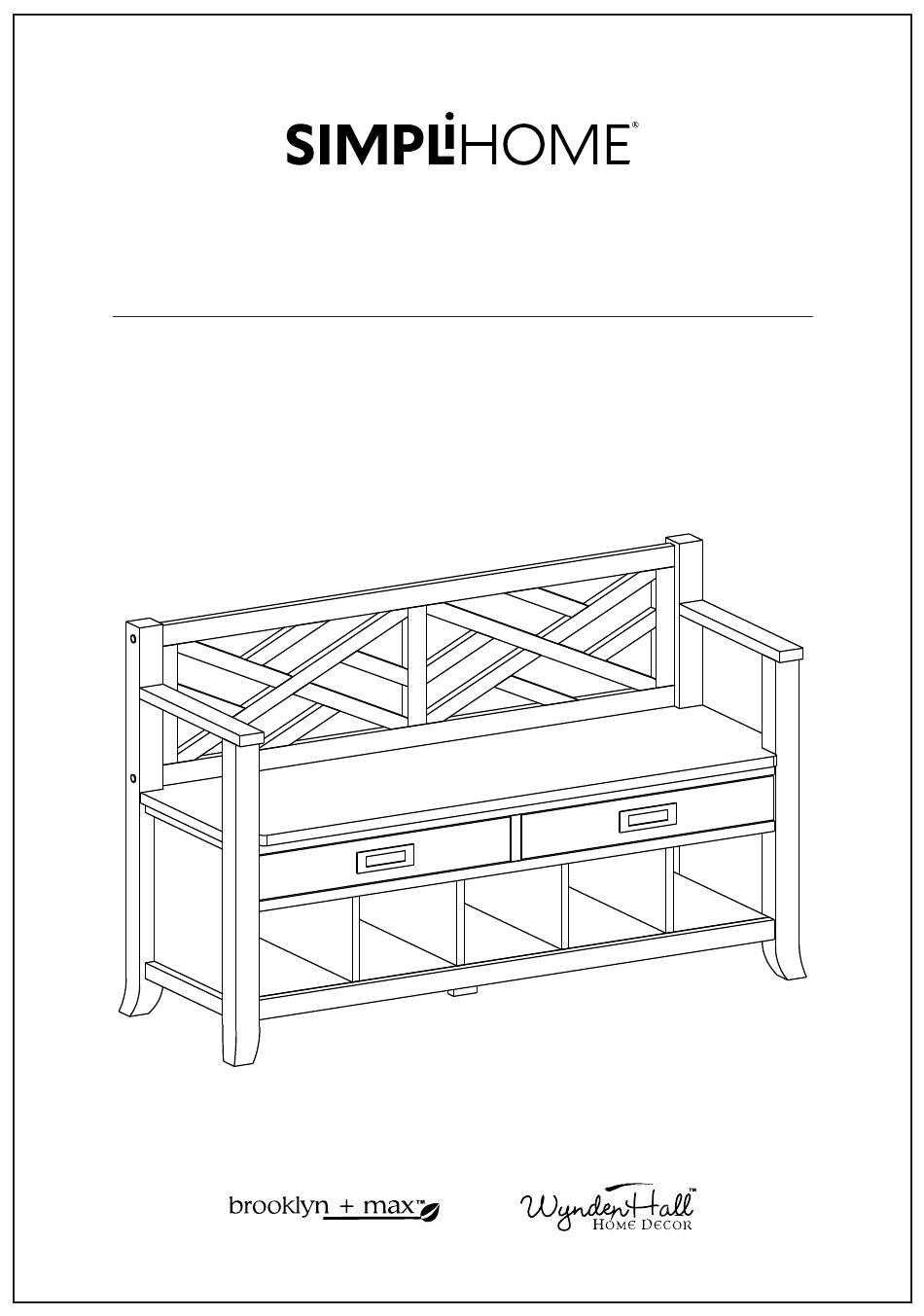

- Page 1 Sea Mills / Lancaster / Dover Entryway Storage Bench Model # INT-AXCSM-BNCH-EB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 7: Pre-Assembly Information
Pre-Assembly Information Model # INT-AXCSM-BNCH-EB Part Description SEAT LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF BOTTOM SUPPORT BACKREST QTY 1 QTY 1 QTY 1 BACK PANEL DIVIDER DIVIDER QTY 1 QTY 1 QTY 4... - Page 8 Pre-Assembly Information Model # INT-AXCSM-BNCH-EB Part Description LEFT DRAWER SIDE BOTTOM SUPPORT LEG DRAWER FRONT QTY 2 QTY 1 QTY 2 RIGHT DRAWER SIDE DRAWER BACK DRAWER BOTTOM QTY 2 QTY 2 QTY 2...
-
Page 9: Hardware Description
Pre-Assembly Information Model # INT-AXCSM-BNCH-EB Hardware Description ALLEN KEY SCREW CAM LOCK PIN M6 x 30 mm CAM LOCK ALLEN KEY QTY 22 QTY 8 SET QTY 1 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW ALLEN KEY BOLT M4 x 15 mm M4 X 30 mm M6 x 50 mm QTY 16... - Page 10 Components - Key Diagram Model # INT-AXCSM-BNCH-EB Components - Key Diagram Model # INT-AXCSM-BNCH-EB...
- Page 11 Assembly Model # INT-AXCSM-BNCH-EB Step 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front J . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides KL , KR . 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side KL , KR . 4.
- Page 12 Assembly Model # INT-AXCSM-BNCH-EB Step 3 1. Align Drawer Back L with Drawer Sides KL , KR . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side KL , KR. 2. Use Allen Key 3 to tighten screws. Do not over-tighten. Repeat Step 1-3 for the second drawer.
- Page 13 MODEL # INT-AXCSM-BNCH-EB Assembly Model # INT-AXCSM-BNCH-EB Step 4 1. Insert 16 Wood Dowels 7 into 4 Dividers H ( 4 Dowels per each Divider ). 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. ½ length of dowels should be exposed.
- Page 14 Assembly Model # INT-AXCSM-BNCH-EB Step 5 1. Insert 2 Dowels 7 into Bottom Shelf C and one Dowel 7 into Bottom Support D . 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. ½ length of dowels should be exposed.
- Page 15 Assembly Model # INT-AXCSM-BNCH-EB Step 6 1. Attach Divider G to Bottom Support D using 2 Allen Key Screws 1 . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. 3. Attach Bottom Support Leg I to Bottom Shelf C using 4 Phillips Screws 9 into pre-drilled guide holes.
- Page 16 Assembly Model # INT-AXCSM-BNCH-EB Step 7 1. Attach Seat B to Left Side AL and Divider G using 5 Allen Key Bolts 1 . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten.
- Page 17 Assembly Model # INT-AXCSM-BNCH-EB Step 8 1. Attach Backrest E to Left Side AL using 2 Allen Key Bolts 6 . 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten.
- Page 18 Assembly Model # INT-AXCSM-BNCH-EB Step 9 1. Repeat Step 5, Step 7 & Step 8 for the Right Side AR .
- Page 19 Assembly Model # INT-AXCSM-BNCH-EB Step 10 1. Attach Back F to back frame using 16 Phillips Screw Round Heads 4 . 2. Use Phillips screwdriver to snugly tighten screws. 3. Insert 4 Wood Bolt Caps 8 into exposed bolt holes on side of bench. Step 11 1.
