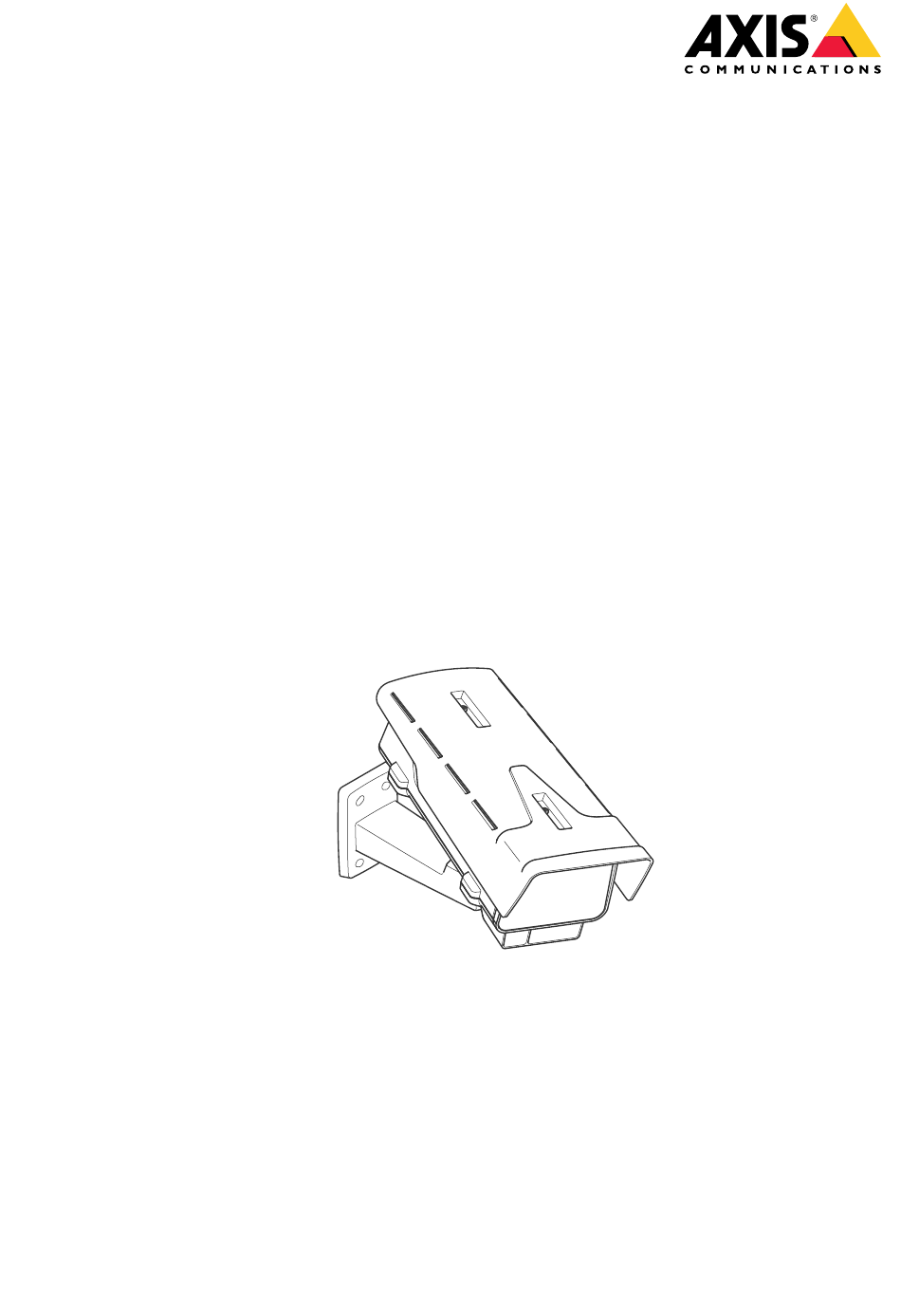

- Page 1 AXIS P13 Box Camera Series AXIS P1385-BE Box Camera AXIS P1387-BE Box Camera AXIS P1388-BE Box Camera AXIS P1385-E Box Camera AXIS P1387-LE Box Camera AXIS P1388-LE Box Camera Repainting instructions...
- Page 2 Risks with repainting There are several risks when disassembling or assembling an Axis product. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
- Page 3 AXIS P13 Box Camera Series Repaint the product Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts that will be repainted thoroughly to remove grease, dust, or oil.
- Page 4 AXIS P13 Box Camera Series Repaint the product Disassembly Disassemble the housing Screw T20 (4x) Bottom chassis Top cover Weathershield Screw T20 (2x) 1. Remove the 4x screws and the bottom chassis. 2. Disconnect the safety wire. 3. Remove the top cover.
- Page 5 AXIS P13 Box Camera Series Repaint the product Disassemble the wall mount bracket Screw T30 Ball Screw T20 (4x) 1. Remove the T30 screw at the bottom of the arm. 2. Separate the ball and the ball joint. 3. Remove the 4x screws from the ball joint.
- Page 6 AXIS P13 Box Camera Series Repaint the product Ventilation membrane Label Inside Screw holes (4x) Front window Masking the bottom chassis Mask the following parts of the bottom chassis: Top side Screw holes (4x) Label Wall mount surface Illuminator front glass...
- Page 7 AXIS P13 Box Camera Series Repaint the product Masking the weathershield Black Mask the black part of the weathershield. Masking the wall mount bracket Mask the following parts: Contact surface camera housing Screw hole (4x) Contact surface ball joint Ball...
- Page 8 3. To get a better coverage and clearer color, apply a second layer of spray paint. 4. When the paint is dry, remove the masking and reassemble the product. Reassembly Reassemble the product. For more information, see the Installation Guide available at axis.com...
- Page 9 Repainting instructions Ver. M1.3 AXIS P13 Box Camera Series Date: March 2024 © Axis Communications AB, 2024 Part no. T10202833...
