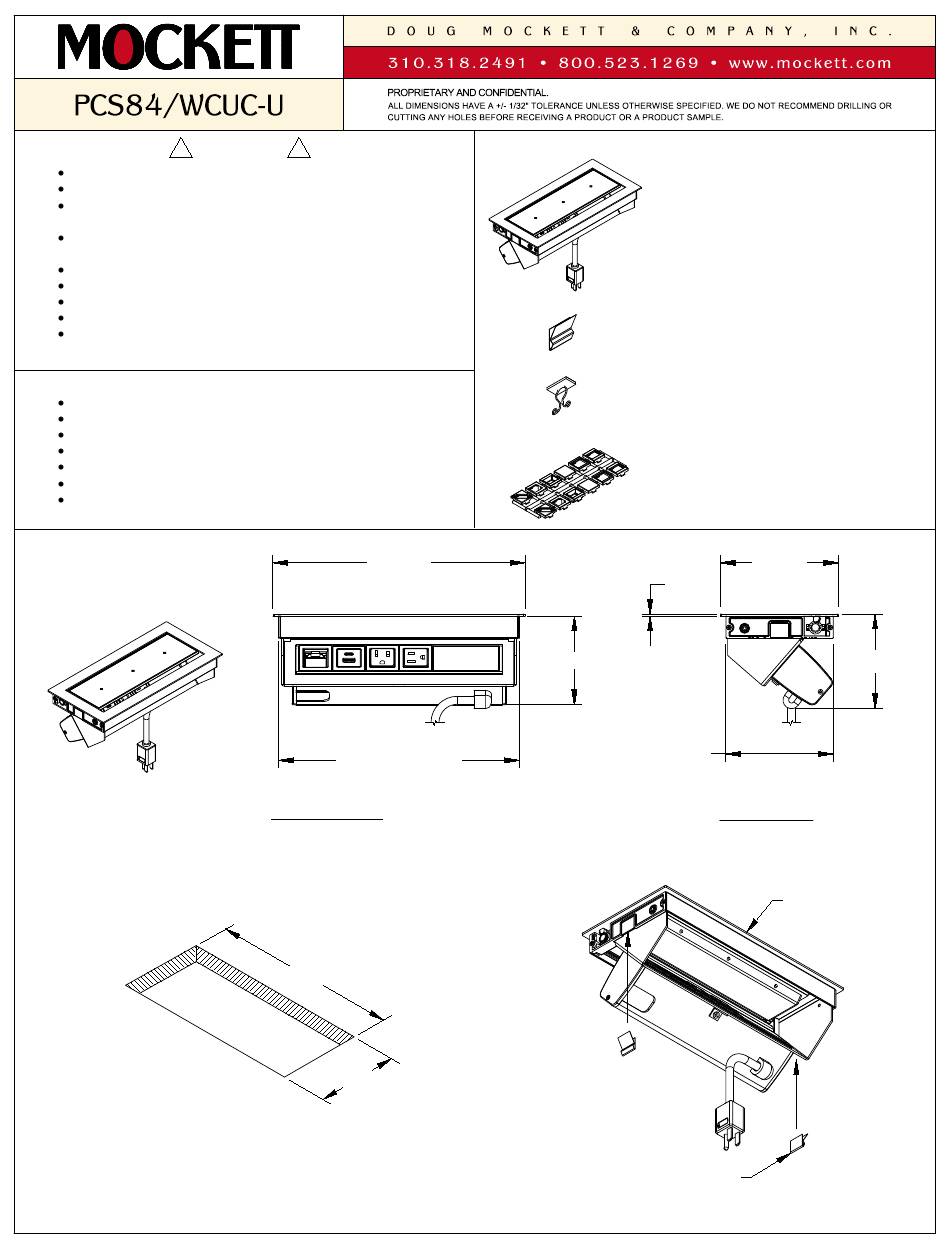

Mockett PCS84/WCUC-U Quick Start Manual

!
For indoor use only.
For use on a normally dry work surface.
If any malfunction occurs, do not attempt to disassemble or
repair.
Avoid placing the unit in a high temperature environment or
near fire.
Avoid liquid spills into outlet.
Do not insert foreign objects into the socket.
Allow enough clearance for part operation.
Do not place metal on the wireless charging area.
Metal objects, bank cards, digital IC cards should not be
placed between the charger and the phone to avoid damage.
SPECIFICATIONS
6ft. cord length.
USB-A and USB-C ports are for charging use only.
Mobile device must have a wireless charging receiver.
Wireless output is 10W MAX. per charging area.
Table thickness is 3/8" MIN. to 1-1/2" MAX.
Plug dimension is 1-11/32" X 1-1/32" X 7/8".
Please use applicable adapter from data tree.
(SEE PCS DATA TREE PAGE FOR MORE INFORMATION.)
1
Make a cutout in the desired location on your work surface.
Allow enough clearance for unit operation. DO NOT place unit
where cable is strained or trapped. Cut the hole at 10-7/8"
X 4-7/8".
2024.03.20
WARNING
!
11-5/16"
10-13/16"
(10-7/8" CUTOUT)
FRONT VIEW
10-7/8"
4-7/8"
TABLE OF CONTENTS
4-5/32"
4-13/16"
(4-7/8" CUTOUT)
2
Attach the mounting clips to the sides of the PCS84/WCUC-U.
1
. . . . . . . . . 1X PCS84/WCUC-U
. . . . . . . . . . . 2X Mounting clips
. . . . . . . . . . . 1X Wire manager
. . . . . . . . . . . . . .1X PCS/DT2
5-5/16"
3/32"
SIDE VIEW
PCS84/WCUC-U
Mounting Clip
4-1/4"
