PCS36A/UC
!
·
Do NOT remove tape!
·
For indoor use only.
·
For use on a normally dry work surface.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
·
Avoid placing the charger in a high temperature environment
or near fire.
SPECIFICATIONS
·
6 ft. cord length.
·
USB-A and USB-C ports are for charging use only.
·
Table thickness is 3/4"MIN. to 1-11/16" MAX.
·
Plug dimension is 1-11/32" X 1-1/32" X 7/8".
·
Please use applicable adapter from data tree.
1
4"

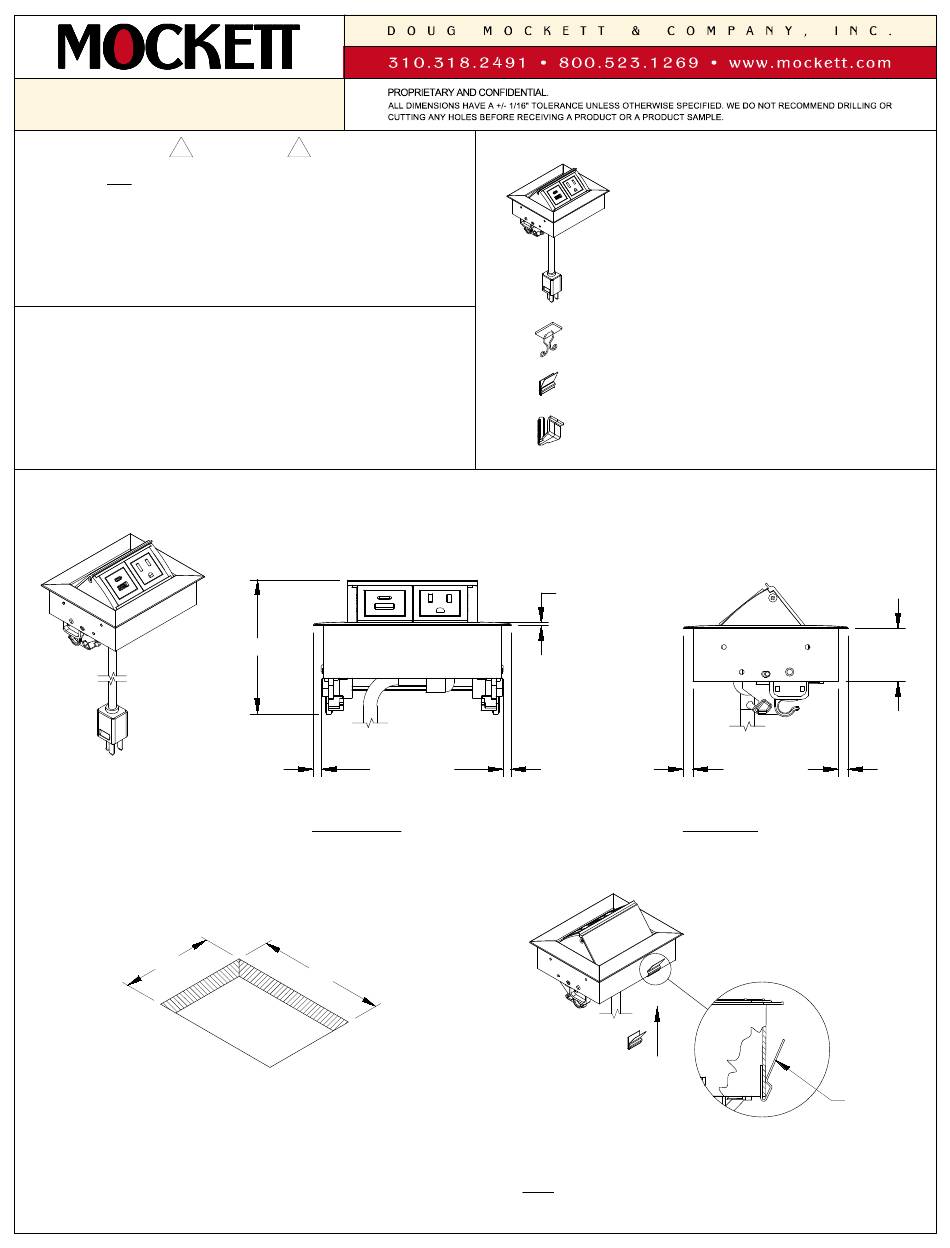

Make a cutout in the desired location on your work surface.
Cut the hole at 5" X 4". Allow enough clearance for unit
operation. DO NOT place unit where cable is strained or
trapped.
2023.09.22
WARNING
!
3-19/32"
4-29/32"
7/32"
(5" CUTOUT)
FRONT VIEW
5"
TABLE OF CONTENTS
3/32"
7/32"
1/4"
2
Place metal clips near the ends of the back of the unit.
(NOTE: Metal clips are for use in hard surface material only as
an optional mounting means.)
1
. . . . . . . . . . . . 1X PCS36A/UC
. . . . . . . . . . . 1X Wire Manager
. . . . . . . . . . . . . 2X Metal Clip
. . . . . . . . . . . . 2X Wing Clamp
3-15/16"
(4" CUTOUT)
SIDE VIEW
1-13/32"
1/4"
Metal clip
