Mockett PCS100B/UC Quick Start Manual

PCS100B/UC
!
·
For indoor use only.
·
For use on a normally dry work surface.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
· Avoid placing the charger in a high temperature environment
or near fire.
SPECIFICATIONS
·
6 ft. cord length.
·
USB-A and USB-C are for charging use only.
· Table thickness is 3/4" MIN. to 1-1/2" MAX.
1
6"
CUTOUT

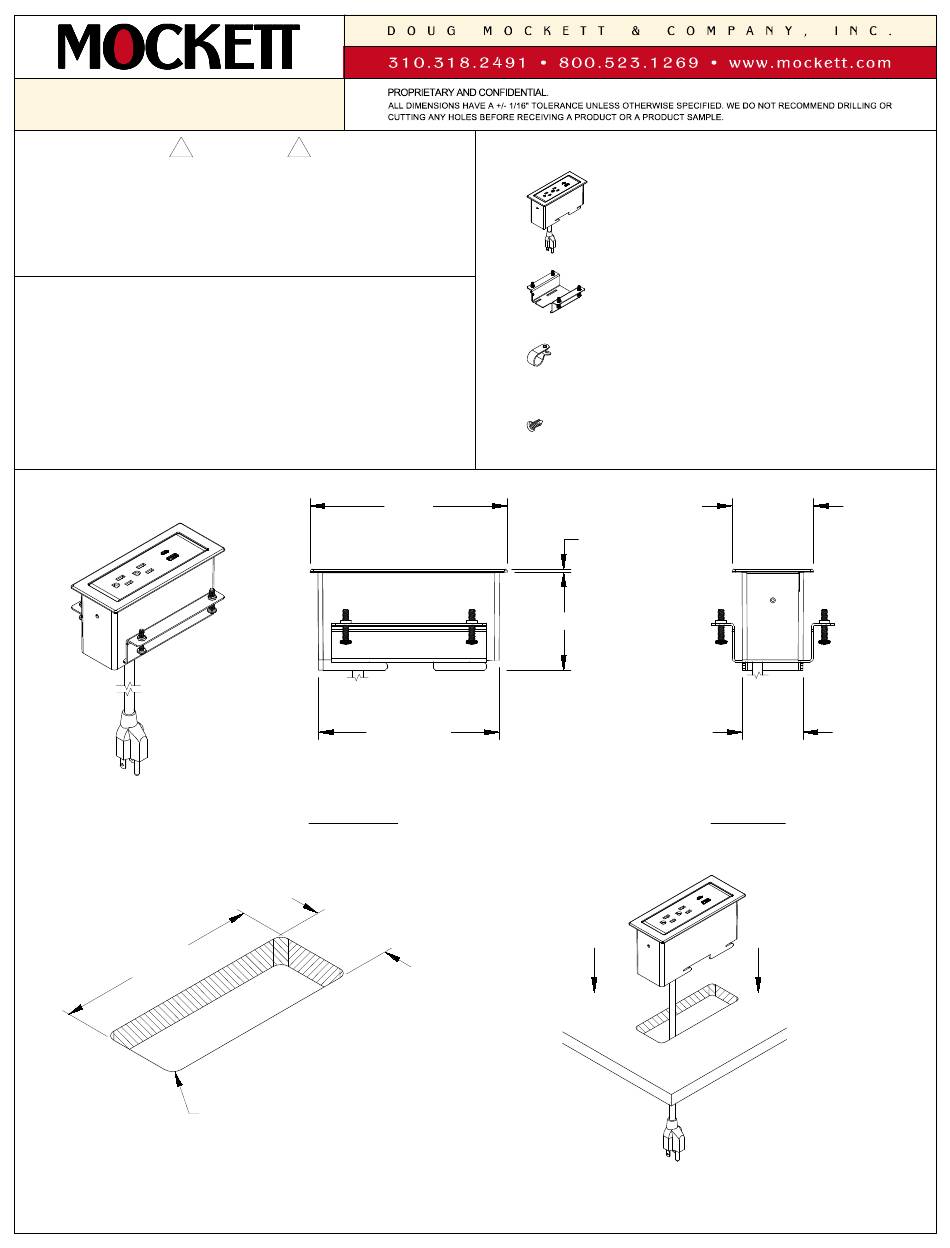

Make a cutout in the desired location on your work surface.
Allow enough clearance for unit operation. DO NOT place unit
where cable is strained or trapped. (Note: Cutout corners
must contain 1/4" radius.)
2023.09.21
WARNING
!
5-27/32"
(6" CUTOUT)
FRONT VIEW
2-1/8"
CUTOUT
4X
1/4" RAD.
6-3/8"
3-5/32"
2
Guide the cord through the cutout. Install the unit into the
cutout and make sure it is fully level on the work surface.
1
TABLE OF CONTENTS
. . . . . . . . . . 1X PCS100B/UC
. . . . . . . . . . . . . . . 1X Clamp
. . . . . . . . . . . . 2X Wire Guide
. . . . . . . . . . . . . . . 2X 1/2"
2-5/8"
3/32"
1-15/16"
(2-1/8" CUTOUT)
SIDE VIEW
No. 10 Pan Head
Wood Screw
