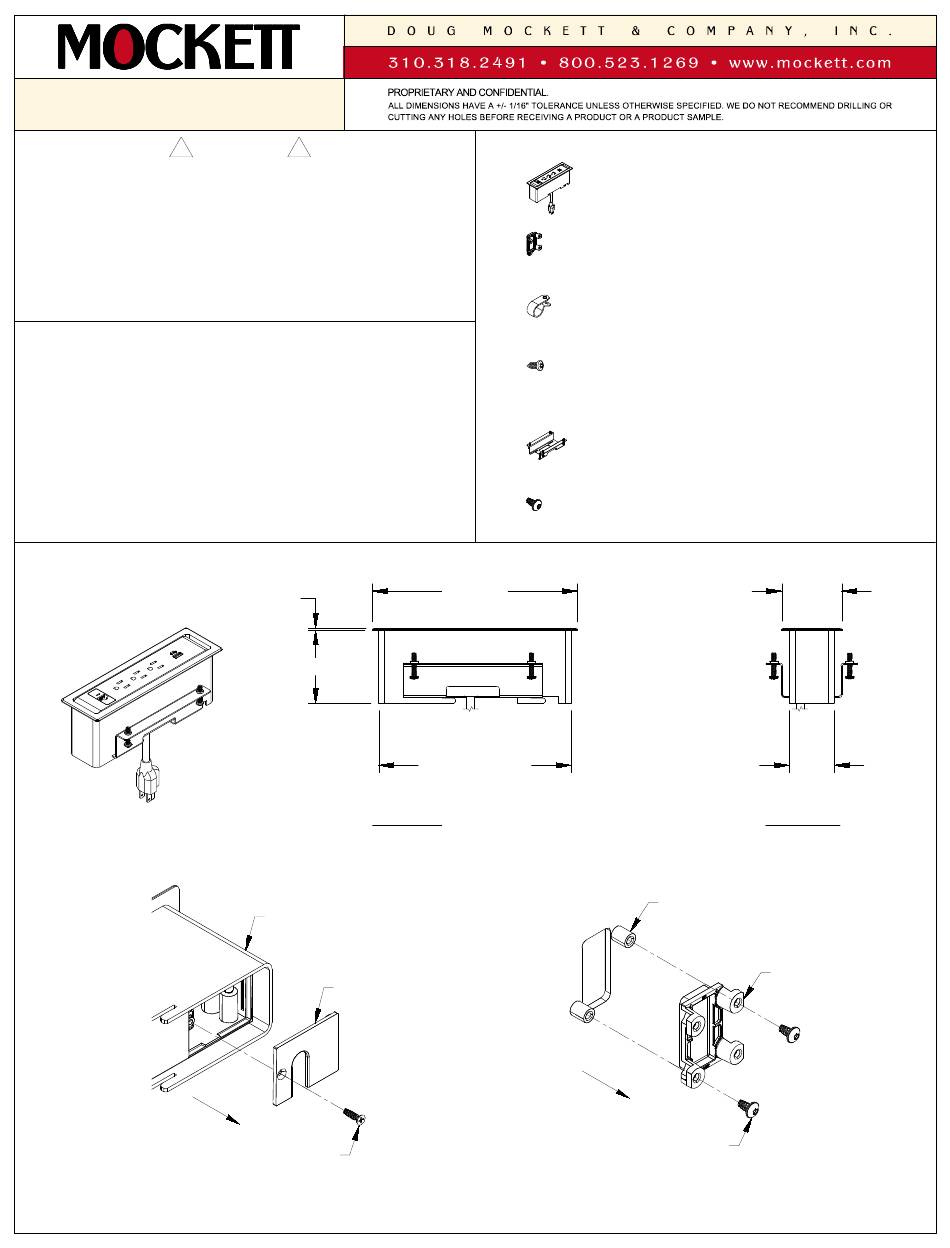

PCS100C/UC
!
·
For indoor use only.
·
For use on a normally dry work surface.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
·
Allow enough clearance for part operation.
·
Avoid liquid spills into outlet.
·
Do not insert foreign objects into the socket.
·
Avoid placing the unit in a high temperature environment or
near fire.
SPECIFICATIONS
·
6 ft. cord length.
·
USB-A and USB-C ports are for charging use only.
·
Table thickness is 3/4" MIN. to 1-1/2" MAX.
1
Remove the PCS100C/UC cover by unscrewing the existing
flat head screw.
2024.03.21
WARNING
!
3/32"
3-5/32"
TOP VIEW
PCS100C/UC
Cover
Existing
Flat Head Screw
8-27/32"
8-5/16"
(8-1/2" CUTOUT)
2
Unscrew the (2) 1/4" No. 15 torx head screws from blank
bezel in the unit.
1
TABLE OF CONTENTS
. . . . . . . . . . . . 1X PCS100C/UC
. . . . . . . . . . . . . . . 10X Bezel
. . . . . . . . . . . . 2X Wire Guide
. . . . . . . . . . . . . . . 2X 1/2"
No. 10 Pan head
. . . . . . . . . . . . . . . 1X Clamp
. . . . . . . . . . . . . . . 4X 1/4"
No. 15 Torx Head Screw
2-5/8"
1-15/16"
(2-1/8" CUTOUT)
SIDE VIEW
Mounting Post
Installed Blank
Bezel
2X
1/4" No. 15
Torx Head Screw
Wood Screw
