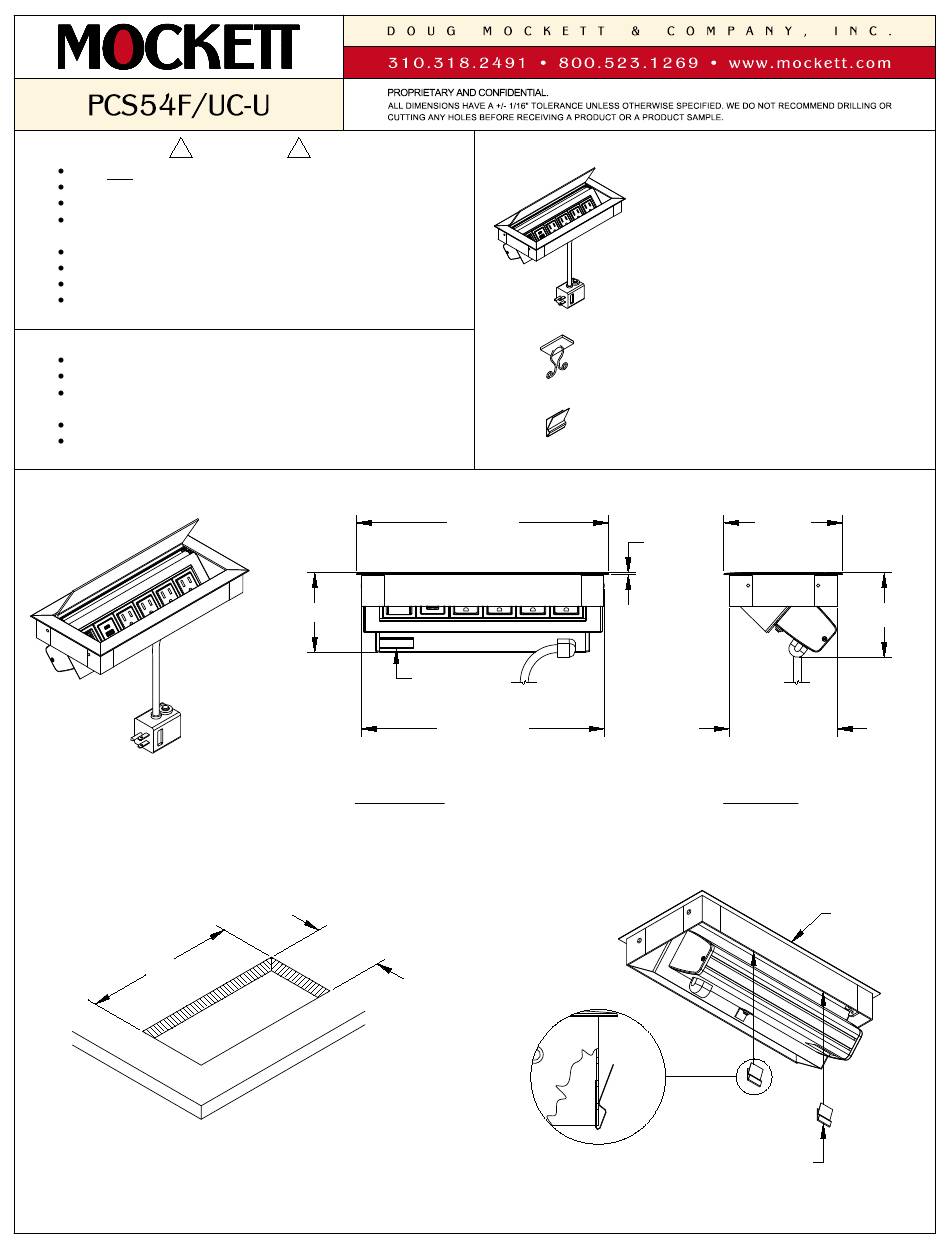

Mockett PCS54F/UC Manual

!
Do NOT remove tape!
For indoor use only.
For use on a normally dry work surface.
If any malfunction occurs, do not attempt to disassemble or
repair.
Allow enough clearance for part operation.
Avoid liquid spills into outlet.
Do not insert foreign objects into the socket.
Avoid placing the unit in a high temperature environment or
near fire.
SPECIFICATIONS
6 ft. cord length.
Table thickness is 3/4" MIN. to 1-3/4" MAX.
Circuit breaker plug dimension is 1-15/32" X 1-21/32" X
2-1/16".
USB-A and USB-C ports are for charging use only.
Please use applicable adapter from data tree.
(SEE PCS DATA TREE PAGE FOR MORE INFORMATION.)
1
11"
Determine the position and location of the PCS54F/UC-U on
the work surface. Allow enough clearance for unit operation.
DO NOT place unit where cable is strained or trapped.
Make an 11" X 5" cutout.
2024.02.15
WARNING
!
3-9/16"
FRONT VIEW
5"
11-5/16"
7/8" X 1-1/2"
OPENING
10-29/32"
(11" CUTOUT)
2
Attach the mounting clips to the back side of the frame on
the PCS54F/UC-U.
1
TABLE OF CONTENTS
. . . . . . . . . . . .1X PCS54F/UC-U
. . . . . . . . . . . .1X Wire Manager
. . . . . . . . . . . . . .2X Metal Clip
5-5/16"
3/32"
4-27/32"
(5" CUTOUT)
SIDE VIEW
Mounting Clip
3-25/32"
PCS54F/UC-U
