EGO Power Plus ST1530E - LINE TRIMMER Manual

SAFETY SYMBOLS

Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May be used in conjunction with other symbols or pictographs.

The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.

	Safety Alert	Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Eye Protection	Always wear ear protection when operating this product.
	Wear Ear Protection	Always wear ear protection when operating this product.
	No Cutting Blade	Do not install metal or plastic cutting blades
	Keep Bystanders Away	Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use.
	Keep Bystanders Away	Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use.
	Noise	Sound pressure level
	Do Not Expose To Rain	Do not use in the rain or leave outdoors while it is raining.
V	Volt	Voltage
mm	Millimeter	Length or size
cm	Centimeter	Length or size
	Direct Current	Type or a characteristic of current
	No Load Speed	Rotational speed, at no load
min-1	Per Minute	Revolutions per minute

IMPORTANT SAFETY INSTRUCTIONS

When using electric trimmers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:
READ ALL INSTRUCTIONS

Do not rely on the tool's insulation against electric shock. To reduce the risk of electrocution, never operate the tool in the vicinity of any wires or cables which may carry electric current.

Wear appropriate personal hearing protection during use. Under some conditions and durations of use, noise from this product may contribute to hearing loss.

TRAINING

• Read the instructions carefully. Be familiar with the controls and the proper use of the machine.
• Never allow people unfamiliar with these instructions or children to use the machine. Local regulations can restrict the age of the operator.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

• Never operate the machine while people, especially children, or pets are nearby.
• Wear eye protection and stout shoes at all times while operating the machine.
• The distance between the machine and bystanders shall be at least 15m.
• Do not use metal blades.

OPERATION

• Use the machine only in daylight or good artificial light.
• Never operate the machine with damaged guards or shields or without guards or shields in place.
• Switch on the motor only when the hands and feet are away from the cutting means.
• Always disconnect the machine from the power supply (i.e. remove the plug from the mains or remove the disabling device).
  • whenever leaving the machine unattended;
  • before clearing a blockage;
  • before checking, cleaning or working on the machine;
  • after striking a foreign object;
  • whenever the machine starts vibrating abnormally.
• Take care against injury to feet and hands from the cutting means.
• Always ensure that the ventilation openings are kept clear of debris.

MAINTENANCE AND STORAGE

• Disconnect the machine from the power supply (i.e. remove the plug from the mains or remove the disabling device) before carrying out maintenance or cleaning work.
• Use only the manufacturer's recommended replacement parts and accessories.
• Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
• When not in use, store the machine out of the reach of children.

OTHER SAFETY WARNINGS

• Avoid Dangerous Environments – Don't use trimmers in damp or wet locations.
• Always turn the line trimmer off or remove the battery pack whenever leaving the trimmer unattended.
• Don't Use In Rain.
• Keep Children Away – All visitors should be kept at a distance from work area.
• Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use Safety Glasses – Always use safety glasses while operating the machine.
• Use the Right Tool – Do not use the tool for any job except that for which it is intended.
• Don't Force the Trimmer – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
• Don't Overreach – Keep proper footing and balance at all times.
• Stay Alert – Watch what you are doing. Use common sense. Do not operate the trimmer when you are tired.
• Do not operate the trimmer while under the influence of alcohol or drugs.
• Keep guards in place and in working order.
• Store Trimmer Indoors – When not in use the trimmer should be stored indoors in a dry and high or locked up place with the battery pack removed – out of reach of children.
• Maintain Trimmer With Care – Keep the cutting attachment clean for best performance and to reduce the risk of injury. Follow instructions for changing accessories. Keep handles dry, clean, and free from oil and grease.
• Check Damaged Parts – Before further use of the trimmer, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service center unless indicated elsewhere in this manual.
• Clear the area to be cut before each use. Remove all objects such as rocks, broken glass, nails, wire, or line that can be thrown or become entangled in the cutting attachment. Make sure that other persons and pets are at least 15m away.
• Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.
• Always hold the trimmer firmly, with both hands on the handles while operating. Wrap your fingers and thumbs around the handles.
• Avoid Accidentally Starting – Don't carry the trimmer with your finger on the trigger.
• Do not operate the trimmer in petrolic or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
• Damage to Trimmer – If you strike a foreign object with the trimmer or it becomes entangled, stop the tool immediately, remove the battery pack from the line trimmer, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken guard or spool.
• If the equipment should start to vibrate abnormally, stop the motor, remove the battery pack from the line trimmer. and check immediately for the cause. Vibration is generally a warning of trouble. A loose head may vibrate, crack, break or come off the trimmer, which may result in serious or fatal injury. Make sure that the cutting attachment is properly fixed in position. If the head loosens after fixing it in position, replace it immediately. Never use a trimmer with a loose cutting attachment.
• Replace a cracked, damaged or worn-out cutting head immediately, even if damage is limited to superficial cracks. Such attachments may shatter at high speed and cause serious or fatal injury.
• Check the cutting attachment at regular short intervals during operation, or immediately if there is a noticeable change in cutting behavior.
• Only use EGO^TM authorised polymer trimmer line accessories and trimmer line that are designed for use with this machine. Although certain unauthorized attachments might be fitted to the EGO^TM line trimmer, their use may be extremely dangerous, and/or damaging to the tools.
• To reduce the risk of serious injury, never use wire or metal-reinforced line or other material in place of the nylon cutting lines. Pieces of wire could break off and be thrown at high speed toward the operator or bystanders.
• To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support. Never hold the cutting attachment above waist height.
• If situations occur that are not covered in this manual, use care and good judgment. Contact the EGO Service Center for assistance.
• Do not charge the battery pack in rain, or in wet locations.
• Use only with EGO's battery packs and chargers.

  BATTERY PACK	CHARGER
  BA1120E, BA1400, BA2240E BA2800, BA3360, BA4200, BA1400T, BA2800T, BA4200T	CH2100E, CH5500E

• The battery pack must be removed from the appliance before it is scrapped.
• The battery shall be disposed of safely.
• Do not dispose of the battery in a fire. The cells may explode. Check with local authorities for possible special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
• When servicing, use only identical EGO^TM replacement parts. Use of any other accessory or attachment may increase the risk of injury.
• Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when the tool is not operating. Take care when performing maintenance or service.
• Do not wash with a hose; avoid getting water in motor and electrical connections.
• Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan this tool to someone else, also loan these instructions to them to prevent misuse of the product and possible injury.
• Always wear substantial footwear and long trousers while operating the machine.
• Always be sure of the footing on slopes and to walk, never run.

SPECIFICATIONS

Voltage		56 V
No-load speed		5000/6000 min-1
Cutting Mechanism		Bump Head
Cutting Line Type		2.4mm nylon twist line
Cutting Width		38 cm
Weight (Without battery pack)		4.21Kg
Measured sound power level LWA		94.3 dB(A) K=1.37 dB(A)
Sound pressure level at operator's ear LPA		82.6 dB(A) K= 3 dB(A)
Guaranteed sound power level LWA (according to 2000/14/EC)		96 dB(A)
Vibration ah	Front-assist Handle	3.97 m/s2 K=1.5 m/s2
	Rear Handle	2.78 m/s2 K=1.5 m/s2

PACKING LIST

DESCRIPTION

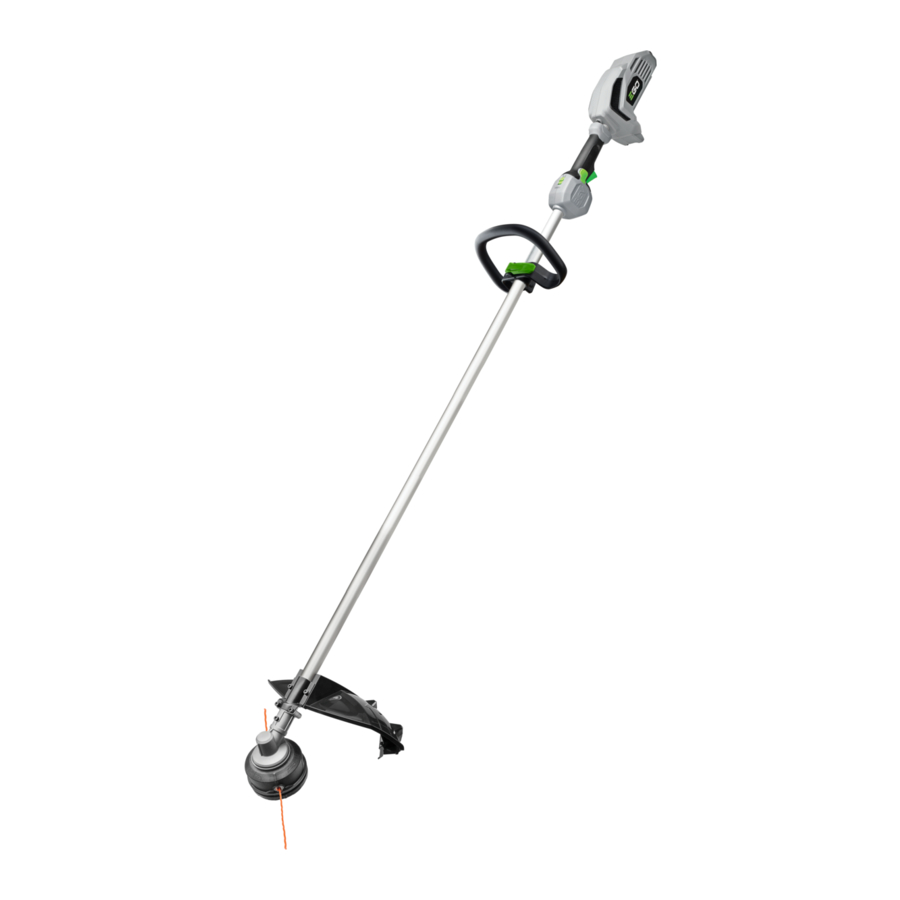

KNOW YOUR LINE TRIMMER

1. Threshold Ring
2. Trigger
3. Rear Handle
4. Air Inlet
5. Lock-Off Button
6. High/low-Speed Switch
7. Shoulder-Strap Mount Hanger
8. Adjustable Front-Assist Handle
9. Shoulder Strap
10. Multi-Function Wrench
11. Hex Wrench
12. Trimmer Head (Bump Head)
13. Cutting Line
14. Release Tab
15. Line-Cutting Blade
16. Guard
17. Ejection Mechanism
18. Electric Contacts
19. Latch
20. Rubber Pad Protection
21. Battery-Release Button

ASSEMBLY

If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

Do not attempt to modify this product or create accessories not recommended for use with this Line trimmer. Any such alteration or modification is misuse and could result in a hazardous condition leading to possibly serious personal injury.

To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts.

MOUNTING THE GUARD

Always wear gloves when mounting or replacing the guard. Take care of the blade on the guard and protect your hand from cutting.

Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user! When the guard is fixed, never attempt to remove or adjust the guard, if a replacement is needed, it should be performed by a qualified service technician!

1. Loosen and remove the two screws from the guard.

2. Align the guard mounting holes with the assembly holes and then lock the guard onto the shaft base with the two screws, together with two spring washers.


NOTICE: Make sure the guard is fixed according to Fig. B & C, any reverse fixing will cause great danger!

MOUNTING AND ADJUSTING THE FRONT-ASSIST HANDLE

1. Loosen the locking pole in the front-assist handle and remove the locking pole and wing nut form the front-assist handle.


   D-1		locking pole
   D-2		Front-Assist Handle
   D-3		Clamping Block
   D-4		Wing Nut

2. Push the front-assist handle onto the shaft.

3. Insert the clamping block into the handle slot.

4. Mount the locking pole, and pre-tighten them with the wing nut. Make sure that the front-assist handle is upwards and points toward the top of the rear handle.

5. Adjust the front-assist handle between the threshold ring and the label to make sure your front arm is straight when operating.

6. Lock the lever of the locking pole.


NOTICE: The front-assist handle should be turned upwards to point toward the top of the rear handle.

Only fix the front-assist handle between the threshold ring and the label on the shaft.

The tool cannot be used without the front-assist handle securely fixed.

MOUNTING THE SHOULDER STRAP

Depress the strap hook to open it and attach it onto the shoulder-strap mount hanger.

OPERATION

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

Always wear safety goggles or safety glasses with side shield, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing attachments or removing material from the unit.
You may use this product for the purposes listed below:
Trimming: use for removing grass and weeds up against walls, fences, trees and borders.
Cutting: use for cutting the grass that is difficult to reach using a normal mower.
NOTICE: The tool is to be used only for its prescribed purpose. Any other use, for example edge trimming, is deemed to be a case of misuse.

ATTACHING/DETACHING THE BATTERY PACK

Fully charge before first use

To Attach
Align the battery ribs with the mounting slots and press the battery pack down until you hear a "click".

To Detach
Depress the battery-release button and pull the battery pack out as Fig. L shown.

HOLDING THE LINE TRIMMER

Dress properly to reduce the risk of injury when operating this tool. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy duty, long trousers, boots and gloves. Do not wear short trousers, sandals or go barefoot.
Before operating, stand in the operating position and check for eye protection, proper clothing, balanced footing, straight arm, which holds the front-assist handle.
NOTICE: The trimmer head is parallel to the ground at a proper cutting distance without the operator bending over.

For safe and better operation, put on the shoulder strap across the shoulder as Fig. N. Adjust the shoulder strap in a comfortable operating position. Hold the line trimmer with both hands: One hand on the rear handle and the other hand on the front-assist handle.
There are two ways to release the strap. Take it away from your shoulder directly (Fig. O) or press the hook of the strap and take it apart from the shoulder-strap mount hanger fixed on the shaft (Fig. P).

The shoulder strap is also a quick release mechanism in a hazardous situation. When an emergency occurs, take it off from your shoulder immediately, no matter what way the strap is in.

STARTING/STOPPING THE LINE TRIMMER

To Start
Press down the lock-off lever then depress the trigger. Different pressure on the trigger results in variable rotating speed of the cutting line. More pressure, higher speed.

To Stop
Release the trigger.
NOTICE: The motor runs only when the lock-off button and trigger are both pressed.

Always remove the battery pack from the line trimmer during work breaks and after finishing work.

Speed Adjustment Function
(Fig. M)
The line trimmer has two speeds. Position"1" is for low speed while Position "2" for high speed. Push or pull the high/low speed switch to choose the suitable speed during operation.

USING THE LINE TRIMMER

To avoid serious personal injury, wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations.
Clear the area to be cut before each use. Remove all objects, such as rocks, broken glass, nails, wire, or line, that can be thrown or become entangled in the cutting attachment. Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders and pets at least 15m away; there still may be risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the motor and cutting attachment immediately.

Before each use, check for damage/worn parts
Check the bump head, guard and front-assist handle and replace the parts that are cracked, warped, bent, or damaged in any away.
The line-cutting blade on the edge of the guard can dull over time. It is recommended that you periodically sharpen with a file or replace it with a new blade.

Always wear gloves when mounting the guard or servicing the blade. Take care of the blade on the guard and protect your hand from cutting.

After each use, clean the trimmer.

Obstructions in the vents will prevent the air from flowing into the motor housing and result in overheating or damaged of the motor.

• Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
• Keep air vents in the motor housing from debris at all times.

Never use water for cleaning your trimmer. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean cloths to remove dirt, dust, oil, grease, etc.

ADJUSTING CUTTING LINE LENGTH

The trimmer head allows the operator to release more cutting line without stopping the motor. As line becomes frayed or worn, additional line can be released by lightly tapping the trimmer head on the ground while operating the trimmer.

NOTICE: Line release will become more difficult as the cutting line becomes shorter.

Do not remove or alter the line cutting blade assembly. Excessive line length will cause the motor to overheat and may result in serious personal injury.

LINE REPLACEMENT

NOTICE: Always use the recommended nylon cutting line with a diameter that does not exceed 2.4 mm. Using line other than that specified may cause the line trimmer to overheat or become damaged.

Never use metal-reinforced line, wire, or rope, etc. These can break off and become dangerous projectiles.

1. Remove the battery pack.
2. Remove the remaining cutting line, if necessary.
3. Cut 4m long cutting line, Insert the line into the mounting hole inside the eyelet (Fig. R). Push and pull the line from the other side until equal amounts of line appear on both sides of the spool.

4. Press, while rotating the lower cover assembly in the arrow direction, to wind the line onto the spool until approximately 14cm of line is showing on each side.

5. Push the lower cover assembly down while pulling on the lines to manually advance the line and to check for proper assembly of the trimmer head.

When the cutting line breaks from the line outlet or the cutting line is not released when the trimmer head is tapped, follow the steps below:

1. Press the release tabs on the upper cover and remove the lower cover assembly by pulling it straight out.

2. Remove the cutting line from the spool.
3. With one hand holding the lower cover assembly, use the other hand to grasp the lower cover assembly and align the tabs on the upper cover with the holes in the lower cover assembly (Fig. V); Use your palm to press the lower cover assembly until the tabs lock with the upper cover.

4. Follow the instructions in "LINE REPLACEMENT" to reload the cutting line.

MAINTENANCE

When servicing, use only identical replacement parts. Inspect and maintain the machine regularly. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. To prevent serious personal injury, take extra precautions and care when performing maintenance, service or for changing the cutting attachment or other attachments.

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing add-on attachments or removing material from the unit.

CLEANING THE UNIT

• Clean the unit using a damp cloth with a mild detergent.
• Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils, such as pine and lemon, and by solvents such as kerosene. Moisture can also cause a shock hazard. Wipe off any moisture with a soft dry cloth.
• Use a small brush or the air discharge of a small vacuum cleaner brush to clean the air vents on the rear housing.

TRANSMISSION GEARS LUBRICATION

The transmission gears in the gear case need be lubricated periodically with gear grease. Check the gear case grease level about every 50 hours of operation by removing the sealing screw on the side of the case.
If no grease can be seen on the flanks of the gear, follow the steps below to fill with gear grease up to 3/4 capacity. Do not completely fill the transmission gears.

1. Hold the line trimmer on its side so that the sealing screw is facing upwards.

2. Use the multi-function wrench provided to loosen and remove the sealing screw.
3. Use a grease syringe (not included) to inject some grease into the screw hole; do not exceed 3/4 capacity.
4. Tighten the sealing screw after injection.

STORING THE UNIT

• Remove the battery pack from the line trimmer when it is not in use.
• Clean the tool thoroughly before storing it.
• Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilisers, petrol, or other chemicals.

TROUBLESHOOTING

egopowerplus.com
