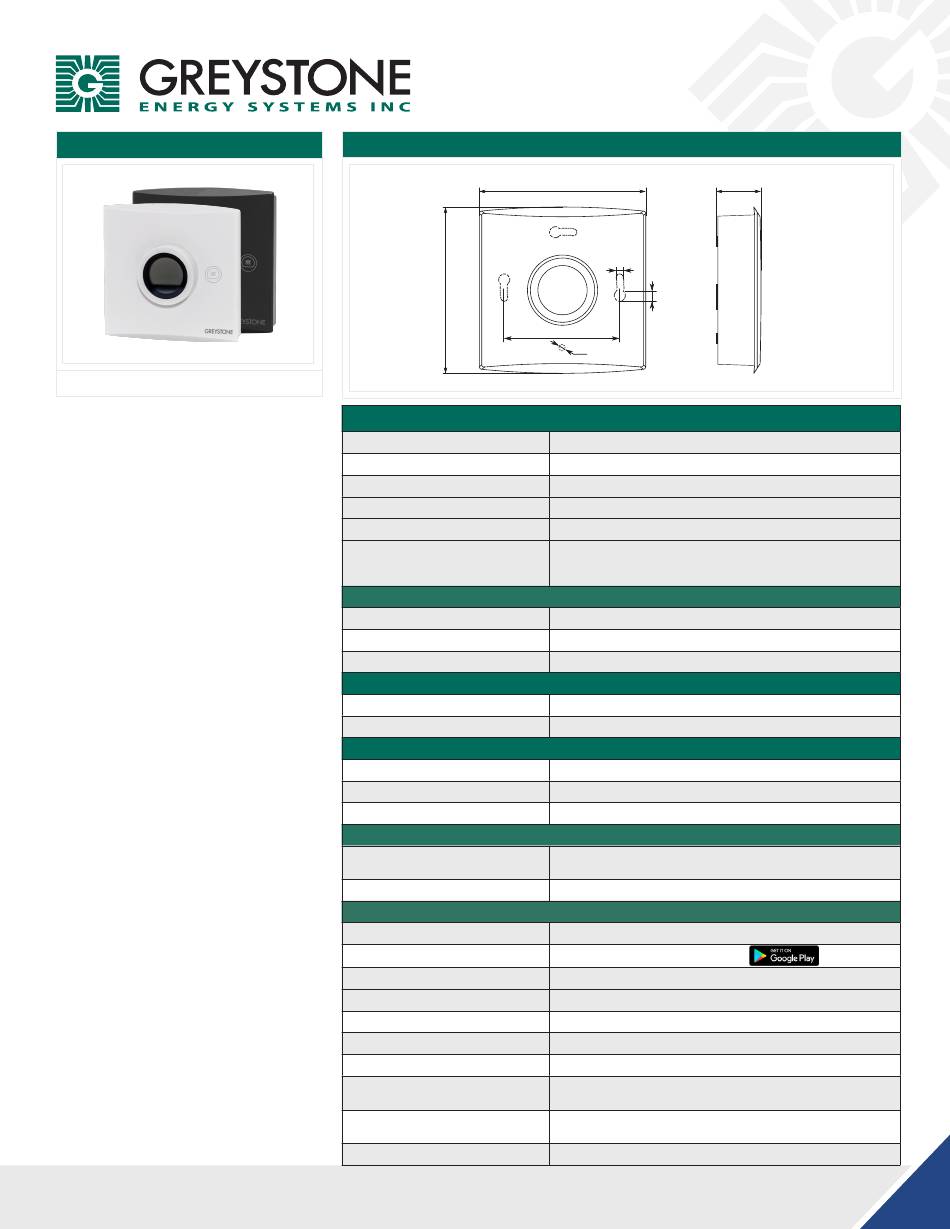

Greystone Energy Systems GWTR24 Series Quick Start Manual

WIRELESS ROOM TRANSMITTER
GWTR24 SERIES
PRODUCT DESCRIPTION
The GWTR24 externally powered wireless
transmitters are for detecting indoor
temperature, humidity and CO2 level. The
transmitters can also be equipped with a
display, advanced setpoint knob, and
occupancy detection. The transmitters require
24 V supply voltage. Transmitters are
compatible with the Greystone MESH wireless
network.
The information is transmitted to the base
unit (GWBU) according to the base unit poll
interval. Data may be additionally transmitted
using change-of value (COV) based
transmission. COV means that the data is sent
to base station after the
value has changed enough. If COV based
transmission is used, the required value
change must be configured with the
Greystone ConfigTool app.
The wireless network needs one base
unit. Commissioning is done by using
the Greystone ConfigTool smart phone
application.
Greystone Energy Systems, Inc. reserves the right to make design
modifications without prior notice.
GREYSTONE HAS AN ISO 9001 REGISTERED QUALITY SYSTEM
DIMENSIONS
97 mm
3.54"
60 mm (2.36")
SPECIFICATIONS
Supply
Network frequency
Maximum transmit power (E.I.R.P)
Bandwidth
Modulation
Network range (maximum
distance between devices)
TEMPERATURE MEASUREMENT
Range
Accuracy
Accuracy (CO2 models)
HUMIDITY MEASUREMENT (RH MODELS)
Range
Accuracy
CO2 MEASUREMENT (CO2 MODELS)
Range
Accuracy
Measurement interval
OCCUPANCY DETECTION (PIR MODELS)
Detection area
Lens
GENERAL
Display (D and AK models)
Commissioning Tool
Appliance class (IEC 60664-1)
Operating Temperature
Operating Humidity
Wiring Terminals
Housing
Mounting
Dimensions
Approval
97 mm 26 mm
3.54" 1.02"
3 mm
0.12"
6 mm
0.24"
3 mm
0.12"
24 Vac/dc (22 to 28 V), <2 VA
2.4 GHz (2400...2483.5 MHz)
4 mW (6 dBm)
2000 kHz
GFSK
Up to 100 m in the line of sight, typically 10...20 m inside
buildings. Note: The maximum distance between devices
depends on the installation environment.
0 to 50 °C (32 to 122 °F)
typically ±0.2 °C, max ±0.4 °C (3σ)
±1 °C
0 to 100 %RH
Typ. ±2 %rH (10...90 %rH), max. ±5 %rH
0 to 2000 ppm
Typ. ±40 ppm ±3 % of value
30 to 180 s
Up to 5 m (16 ft). See more information about the detection
area from the chapter Detection area (PIR models) on page 2.
Fresnel lens, high density polyethylene
Monochrome LCD Display
Greystone ConfigTool App
III
0 to 50 °C (32 to 122 °F)
0 to 85 % RH (non-condensing)
1,5 mm2, spring terminals
PC plastic, IP30
On the wall surface or on the flush mounting box with
60mm (2.36") screw hole spacing
No LCD - 97 x 97 x 26 mm (3.54" x 3.54" x 1.02")
With LCD - 97 x 97 x 33 mm (3.54" x 3.54" x 1.30")
CE, UKCA, FCC, ISED
