BEFORE INSTALLATION

Read these instructions carefully before installing and commissioning the CO transmitter. Failure to follow
these instructions may result in product damage. Do not use in an explosive or hazardous environment,
with combustible or flammable gases, as a safety or emergency stop device or in any other application
where failure of the product could result in personal injury. Take electrostatic discharge precautions
during installation and do not exceed the device ratings.

MOUNTING

The transmitter should be mounted on a flat surface three to five feet from the floor of the area to be
controlled. Do not mount the sensor near doors, opening windows, supply air diffusers, or other known air
disturbances. Avoid areas with vibrations or rapid temperature changes.

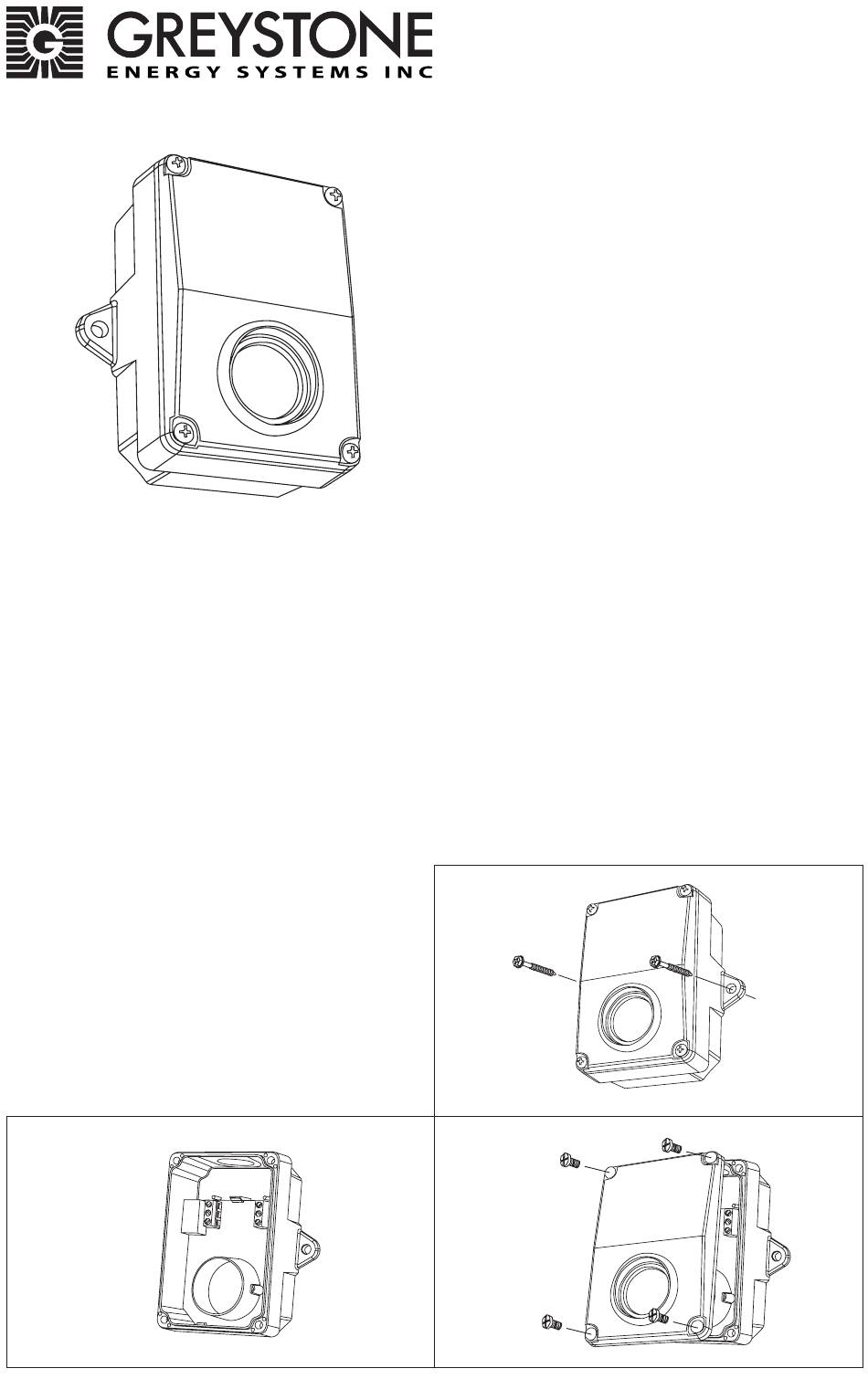

The transmitter has two integrated mounting tabs on either side of the enclosure that facilitate a #10 size
screw (not supplied). See Figure 1.
Remove the cover from the enclosure by loosening
4 Phillips screws in each corner of the enclosure as
seen in Figure 2.
Complete wiring instructions on page 2. Re-install
the cover and tighten the screws with a Phillips
screwdriver. See Figure 3.
Figure 2
IN-GE-CMD5B1000XXX-002
Copyright © Greystone Energy Systems, Inc. All Rights Reserved Phone: +1 506 853 3057 Web: www.greystoneenergy.com
Carbon Monoxide Transmitter
CMD5B1000 Series - Installation Instructions

INTRODUCTION

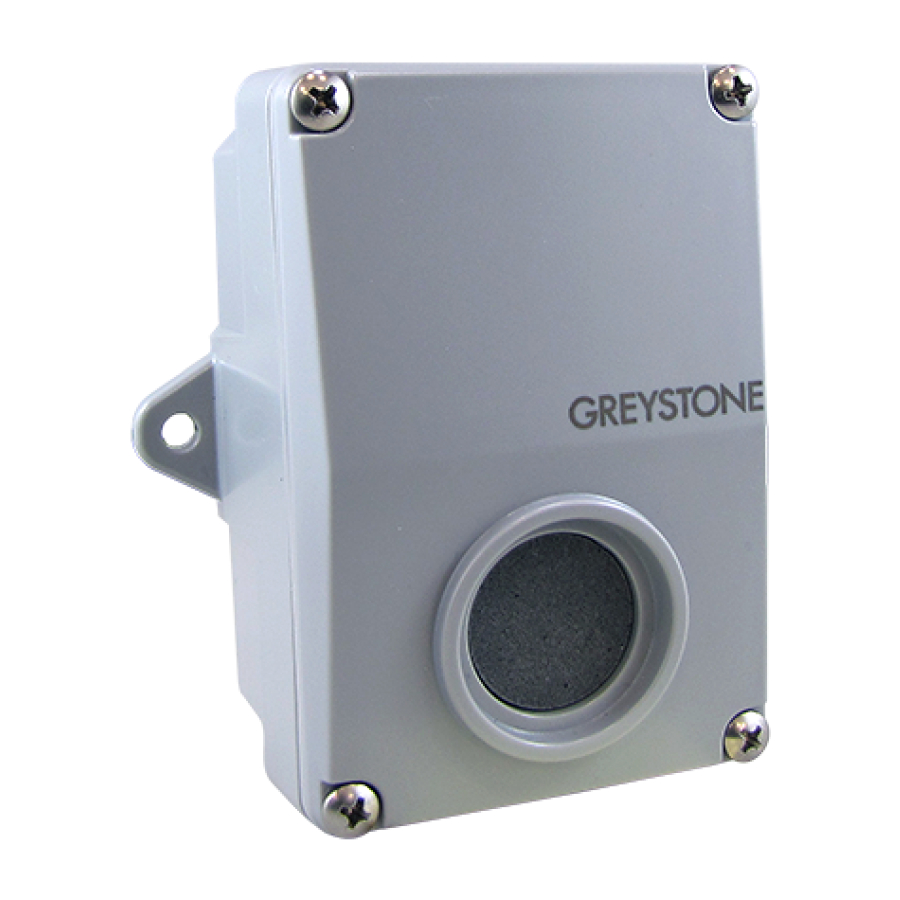

The Carbon Monoxide Transmitter uses an
electrochemical sensor to monitor the CO
level and outputs a proportional 0-10 Vdc
signal. The device may also be configured with
an alarm relay.
Figure 1
Figure 3
Page 1
