eControls ZCDWLR Homeowner's Manual page 2

The ZCDWLR includes three different comfort options - Automatic Uniform Comfort, Downstairs Comfort Focus and Upstairs Comfort
Focus that are designed to maximize your comfort and energy savings.
The ZCDWLR defaults to Automatic Uniform Comfort. Pressing the COMFORT key cycles through the comfort options.
Automatic Uniform Comfort
In Uniform Comfort, the ZCDWLR monitors the upstairs and
downstairs temperatures and automatically directs more heating
or cooling to the zone that needs it every 2 minutes to keep the
temperatures within 2 degrees to provide a balanced, uniformly
comfortable home.
Reduces the wasted energy caused by overcooling your
downstairs zone in the summer to make your upstairs
zone more comfortable or overheating your upstairs zone
in the winter to make your downstairs zone more
comfortable.
Downstairs Comfort Focus
In Downstairs Comfort, the ZCDWLR directs more heating or
cooling to the downstairs zone and less to the upstairs zone, and
is ideal for homes where the upstairs is rarely used.
Reduces the wasted energy used to heat or cool the
unoccupied upstairs zone and saves energy by satisfying
the heating and cooling calls sooner.
Upstairs Comfort Focus
In Upstairs Comfort, the ZCDWLR directs more heating or
cooling to the upstairs zone and less to the downstairs zone, and
is ideal for homes with an upstairs home office or theater room.
Reduces the wasted energy used to heat or cool the
unoccupied downstairs zone and saves energy by enabling
you to adjust your heating and cooling set to temperatures
to more energy saving settings without sacrificing comfort.

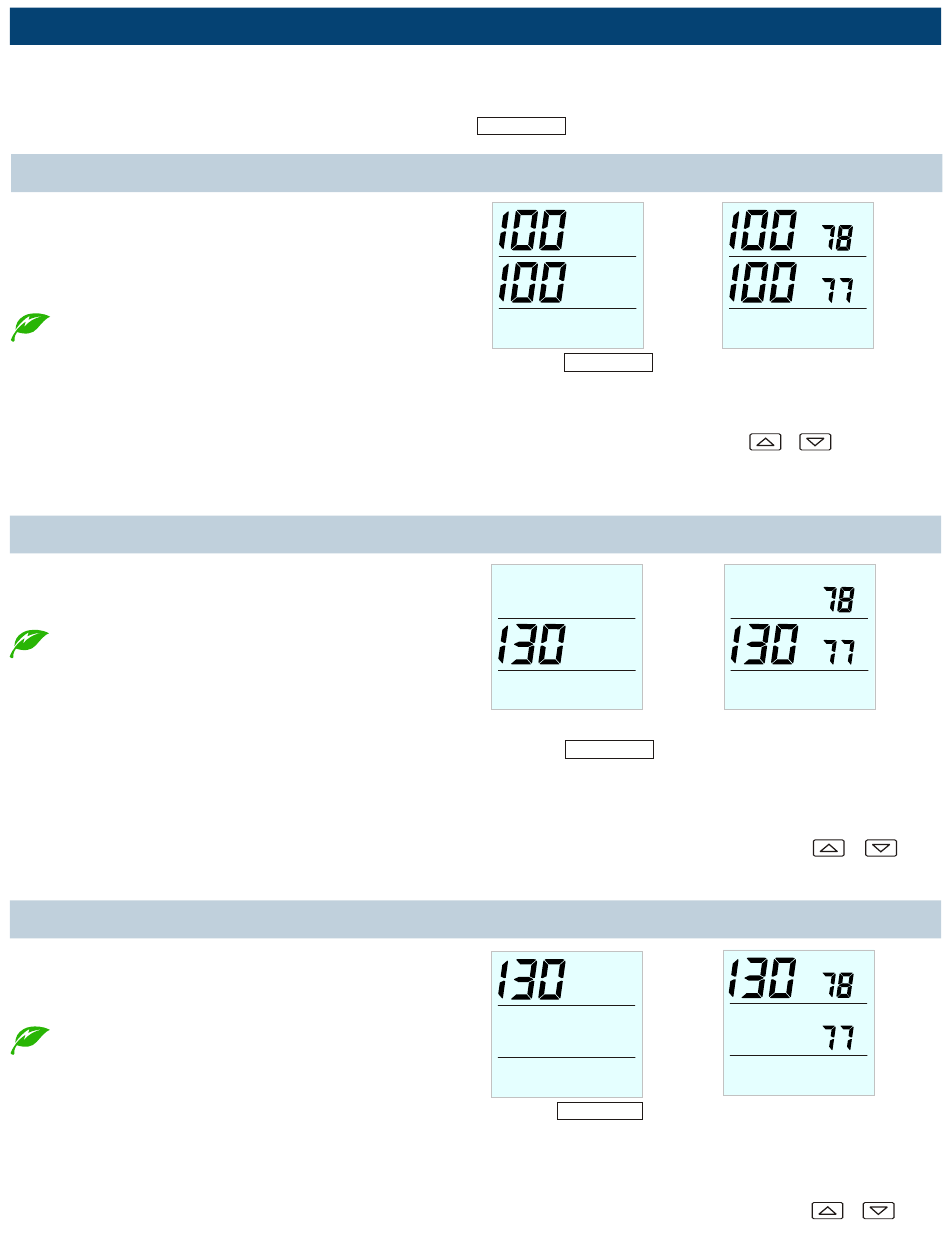

Comfort Control
Auto Comfort
Auto Sleep
Press the COMFORT key
until both ZONE1 airflow and
ZONE2 airflow are displayed.
The selection is saved when
the backlight turns off.
Auto Comfort
Auto Sleep
Press the COMFORT key
until only ZONE1 airflow is
displayed. The selection is
saved when the backlight
turns off.
Auto Comfort
Auto Sleep
Press the COMFORT key
until only ZONE2 airflow is
displayed. The selection is
saved when the backlight
turns off.
Zone2
%
Zone1
%
On Auto
Off Auto Sleep
When Uniform Comfort is
selected, the Zone1 airflow and
Zone2 airflow are displayed,
Auto Comfort indicates On and
the
disabled.
Zone1
%
Auto
Off
Auto Sleep
Off
When Downstairs Comfort is
selected, only Zone1 airflow is
displayed and Auto Comfort
indicates Off. Airflow can be
adjusted at any time by
pressing the
Zone2
%
Auto
Off
Auto Sleep
Off
When Upstairs Comfort is
selected, only Zone2 airflow is
displayed and Auto Comfort
indicates Off. Airflow can be
adjusted at any time by
pressing the
Zone2
F
%
Zone1
F
%
Comfort On
Off
/ keys are
Zone2
F
Zone1
F
%
Comfort Off
Off
or key.
Zone2
F
%
Zone1
F
Comfort Off
Off
or key.
