eControls C365T21WF Installer And User Manual

Comfort
DESCRIPTION

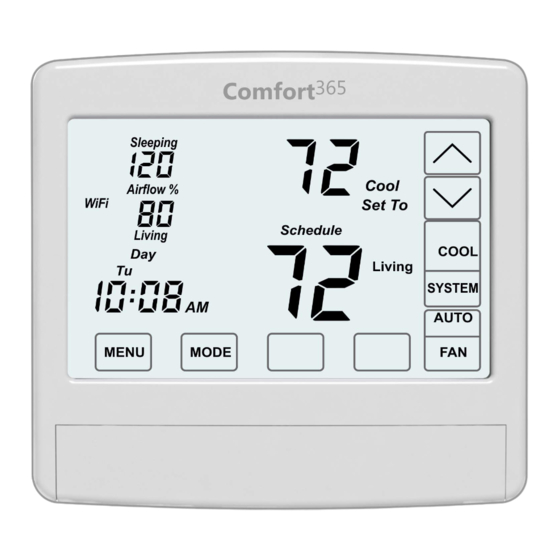

The Comfort365 thermostat controls heating, cooling and
airflow to the sleeping and living spaces. The thermostat is
installed in the living space, a temperature sensor is
installed in the bedroom space and two modulating
dampers are installed to control the airflow to the living and
sleeping space.
The C365 thermostat monitors the temperature at the
sensor and the temperature at the thermostat every 2
minutes during heating and cooling calls. If the
temperatures are different, the Comfort365 automatically
adjusts the modulating dampers 2% so that more airflow is
directed to the space that needs it for a uniformly
comfortable home.
FEATURES
Remote Access
Remotely access the home's HVAC system from anywhere using
a smart phone, tablet or PC.
System Modes
Off, Heat, Cool and Auto
Fan Modes
Auto or Continuous (On)
Thermostat Modes
Hold, Schedule or Vacant mode.
Programs Per Day
Morning, Daytime, Evening and Night.
Program Format
Weekdays and weekend– 5/2.
Temperature Override
Temperature is held for 3 hours when adjusted in Schedule
mode.
Airflow Control
Airflow control can be turned off using Option 17. The
thermostat will operate as a typical thermostat.
Airflow Limits
Maximum airflow limits in heating and cooling can be set
during installation.
365
Wi Fi
Installer and User Manual
Model A80WL2
Damper Actuator
Comfort
Wireless 24VAC
24VAC,2.8VA
24VAC
Made in USA
eControls, Inc.
Sleeping
Airflow %
WiFi
Living
Day
Tu
AM
MENU MODE
Nighttime Operation
At night, the C365 thermostat uses the temperature sensor in
the sleeping space to control heating and cooling calls and
directs more airflow to the sleeping space and less airflow to the
unoccupied living space. Energy savings is 30% at night. If
bedrooms are located downstairs, consider turning off the
Nighttime Airflow Control option off.
Manual Airflow Control
Manual airflow control enables the homeowner to direct more
airflow to the living or sleeping space as they desire. This option
is ideal for homeowners who have an unusual work schedule,
home office or spend more time in one space than the other.
Compatible Equipment
Gas/electric equipment with 2-stage heating and 1-stage
cooling or 1-stage heating and 2-stage cooling and heat
pumps with 2-stage heating and 2-stage cooling.
Wired Sleeping Area Temperature Sensors
One TS510W sensor or two TS520W sensors can be used in the
sleeping space and wire to the thermostat.
Modulating Dampers
Round or rectangular dampers using the A80MT wired actuator
and up to 1 inch static pressure.
Power
Operates on 24VAC from the HVAC equipment using the R and
C wires.
Model C365T21WF
Ver4.07 / Ver1.0.4 or 2.0 Jan 2021
365
Cool
Set To
Schedule
COOL
Living
SYSTEM
AUTO
FAN
Model A80WL2
Damper Actuator
Wireless 24VAC
24VAC,2.8VA 24VAC
Made in USA
eControls, Inc.
Pat. Pending
