eControls T200WLD User& Installer's Manual

Direct Damper Control
The Wireless Thermostat, T200WLD, automatically
controls airflow into a space wirelessly using a
wirelessly controlled, modulating damper installed in the
duct supplying airflow to the space. The thermostat
maintains the temperature using the system mode and
setpoint temperature set by the user, and the space
temperature.
Automatically controls airflow based on selected
system mode - Heat, Cool or Off.
Wireless range is 125' in a home or building.
7-day programmable schedule for daytime and
nighttime airflow control. Automatically lower airflow
on days when a space is not used.
A home Address can be used when two or more
installations are within 300' of one another.
Dampers are powered by 24VAC transformer. 40VA
transformer can power 10 dampers.
Control airflow to home offices, garages, multi-media
rooms or unused bedrooms.
Control airflow to conference rooms, spare offices or
any space that is not used continuously.
Control airflow to spaces and eliminate overheating
and overcooling and provide improved comfort.
Thermostat is battery operated and requires no wiring.
Indicates DAYTIME or NIGHTTIME
operation.
Current inside temperature.
Indicates SCHEDULE or
HOLD Mode
MENU Key. Used to set time of day
and the daytime schedule.
THERMOSTAT MODE Key. Selects
SCHEDULE or HOLD operation.
Inside
Hold Mo
NEXT
MENU MODE
NEXT Key. Used to set
time of day and schedules.
User / Installer Manual
Model T200WLD and R80DWL
Heat
Set To
Inside
HEAT
Hold Mo
AM
NEXT
MENU MODE ENTER

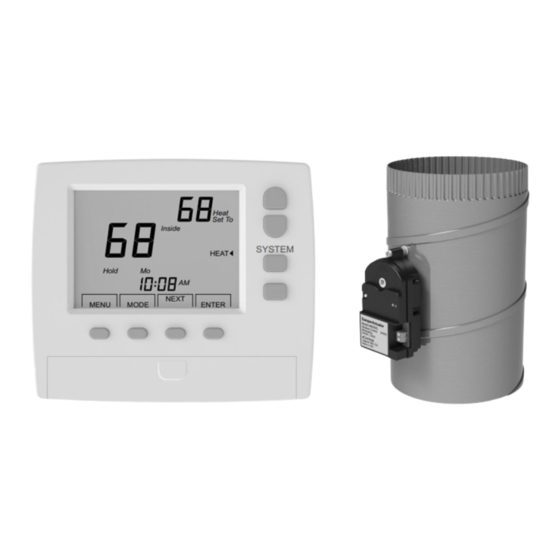

Model T200WLD
Wireless Thermostat
Caution! Direct Damper Controls are not an
alternative to zoning. Installing too many controls on
a single HVAC system could cause airflow and
pressure problems.
Heat
Set To
SYSTEM
HEAT
AM
ENTER
ENTER Key. Used to set time of
day and daytime schedules.
Rev A Mar 2017
SYSTEM
Model R80DWLXX
Wireless Control Damper
Temperature Setting.
UP and DOWN Keys. Used
to set the temperature and
set options.
SYSTEM MODE Key. Used to
select OFF, HEAT or COOL for
automatic airflow control based on the
temperature setting and system mode..
INSTALLER Key. Used to
select options.
Battery compartment, 2 AA batteries.
