The ZTWD thermostat controls the heating and cooling system
and the distribution of heating and cooling to the upstairs and
downstairs zones to provide a uniformly comfortable home.

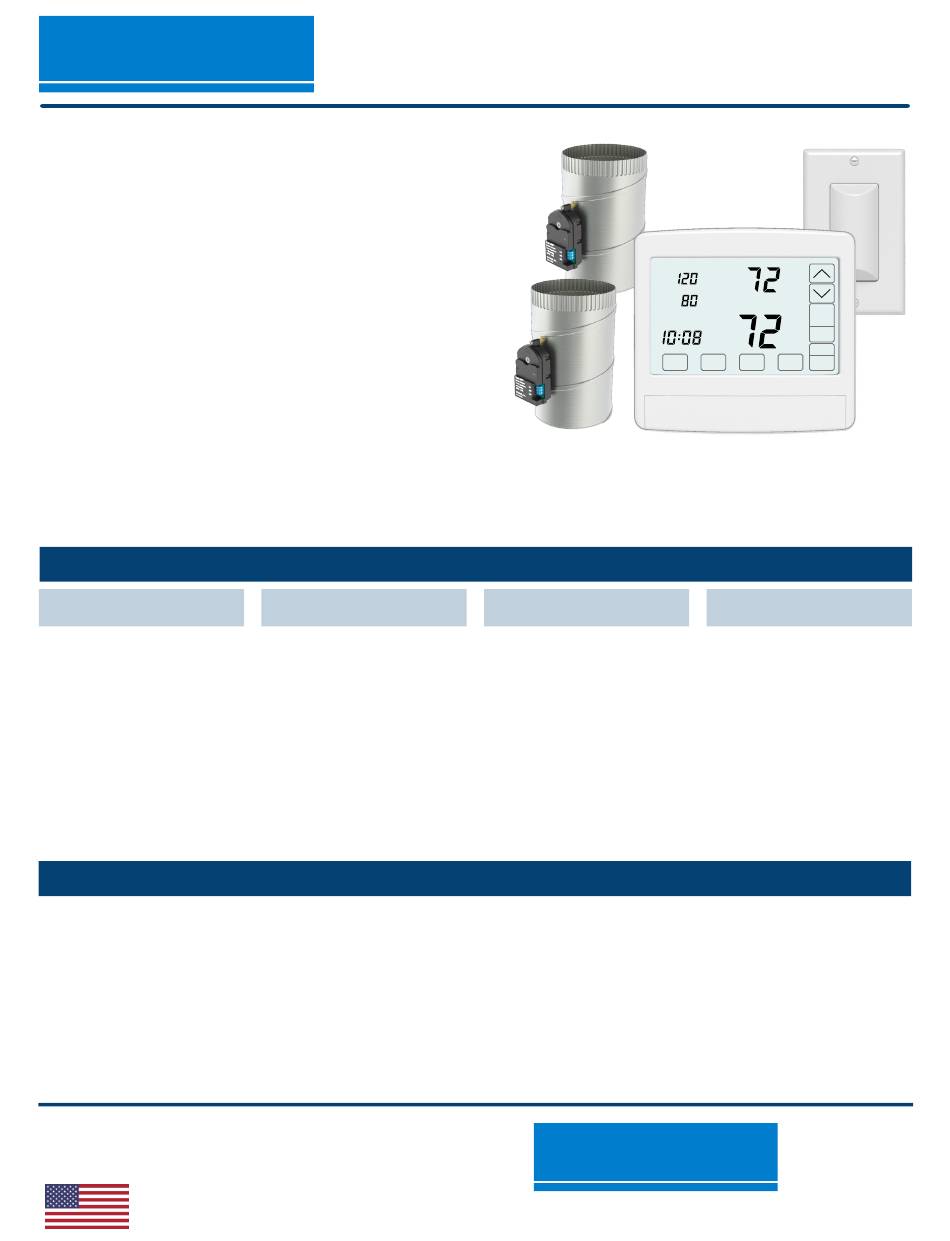

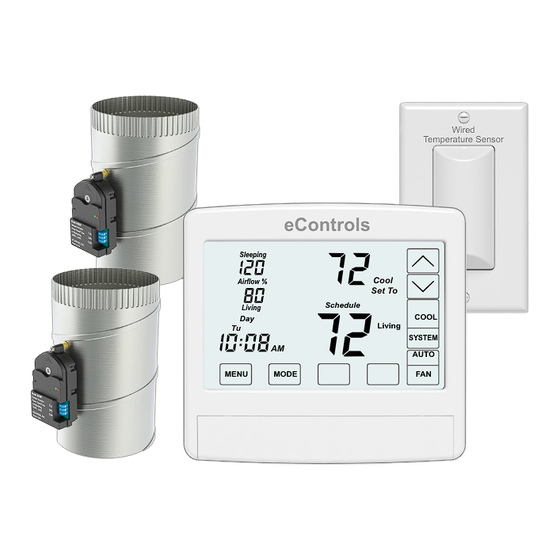

The ZTWD thermostat is installed in the downstairs zone (living
space), a temperature sensor is installed in the upstairs zone
(sleeping space) and two modulating dampers are installed in
the duct work to control the distribution of heating and cooling to
the downstairs and upstairs zones. Some installations may have
two sensors - one in the bedroom hallway and one in the master
bedroom.
During heating and cooling calls, the thermostat checks the
temperature at the sensor and the temperature at the thermostat
every 2 minutes and if there is a 2 degree or more difference,
the thermostat automatically directs more heating or cooling to
the space that needs it for a uniformly comfortable home.
Or, you can manually distribute more heating or cooling to the
upstairs or downstairs as desired.
Uniform Comfort
Thermostat automatically
adjusts the distribution of
heating and cooling to the
upstairs and downstairs to keep
the spaces within 2 degrees of
each other.
Automatic Operation - Factory
Default.
Understanding Your Thermostat .............................Page 2
Heating and Cooling Operation ...............................Page 2
Distribution of Heating and Cooling Airflow ..............Page 3
Setting the Time .......................................................Page 4
Setting the Schedule ................................................Page 4
Patent US 10,520,212 B1
Made in
the USA
Understanding Airflow
Upstairs Comfort
Homeowner directs more
heating or cooling to the
upstairs zone and less to the
unoccupied downstairs. The
upstairs temperature sensor is
used to control heating and
cooling calls.
Manual Operation.
What's Inside
with Integrated Equipment and 2-Zone Control
Downstairs Comfort
Homeowner directs more
heating or cooling to the
downstairs zone and less to the
unoccupied upstairs. The
thermostat is used to control
heating and cooling calls.
Manual Operation.
Display Downstairs or Upstairs Temperature ...........Page 4
Installing Batteries ....................................................Page 4
Cleaning the Touchscreen ........................................Page 4
Troubleshooting ........................................................Page 4
