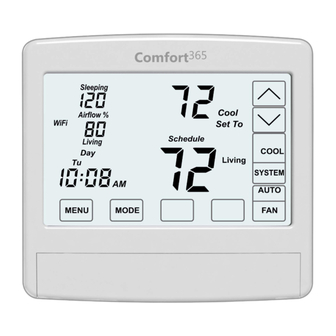

eControls Comfort365 C365C32 Installer Manual

Comfort
Displays the Thermostat Mode
HOLD, SCHEDULE or VACANT
Displays the upstairs airflow
Displays the downstairs airflow
Displays the time, day and schedule
MORNING, DAYTIME, EVENING
or NIGHT
MENU Key Displays
the User options.
MODE Key Selects
Thermostat Mode
HOLD, SCHEDULE or VACANT

Description

The C365 thermostat controls the heating and cooling system
the same as most programmable thermostats. It also controls
the airflow to the upstairs and downstairs using an upstairs and
a downstairs modulating damper. A temperature sensor located
upstairs monitors the upstairs temperature and the temperature
sensor in the C365 monitors the downstairs temperature.
The C365 adjusts the upstairs and downstairs airflow during
heating and cooling calls to maintain uniform upstairs and
downstairs temperatures.
System Modes
Off, Heating only, Cooling only, Automatic Heating or Cooling.
And Emergency Heat (EHeat) when used with heat pumps.
Fan Modes
Continuous or Automatic fan operation.
Thermostat Modes
Hold, Schedule or Vacant mode.
Programs per Day
Morning, Daytime, Evening and Night.
Program Format
Weekdays and weekend– 5/2.
Temperature Override
Up/down keys adjust the setpoint temperature. Temperature
setting is held for 4 hours when adjusted in Schedule mode.
Airflow Control
Airflow control can be turned off using Option 18. Dampers
fully open and airflow is no longer displayed on the thermostat.
Warranty
This thermostat is warranted to be free of defects due to
workmanship or materials under normal use and service for a
period of 5 years from date of installation and not longer than
6 years from manufacturing date code.
365
Comfort
Upstairs
Airflow %
Downstairs
Day
Tu
AM
MENU MODE
365
Heat
Set To
Schedule
HEAT
Inside
SYSTEM
AUTO
FAN
Airflow Override
Up/down keys adjust the upstairs/downstairs airflow. Airflow
setting is held for 4 hours when adjusted in Automatic mode.
Airflow Limits
Maximum upstairs and downstairs, heating and cooling airflow
limits are set during installation.
Nighttime Operation
Option used when bedrooms are located upstairs. C365 uses
the upstairs temperature sensor to control heating and cooling
calls and directs more airflow upstairs.
Compatible Wiring Hub /HVAC Equipment
Compatible with wiring hub WH11 for gas/electric equipment
with 1-stage heating and 1-stage cooling. Or, wiring hub WH32
for gas/electric equipment, conventional or dual fuel heat
pumps with 3-stage heating and 2-stage cooling.
Upstairs Temperature Sensor
One Model TS510W or two Model TS520W upstairs
temperature sensors can be used and are wired to Wiring Hub.
Or, use one or two Model TS5WL wireless temperature
sensors. Wireless sensors require the ER1 radio module
installed in the Wiring Hub.
Modulating Dampers
Round or rectangular dampers using Model A80MJ plug and
play, modulating actuators, plug into to the Wiring Hub.
Power
Operates on 24VAC from the HVAC equipment to the Wiring
Hub R and C terminals.
eControls, Inc. 26072 Merit Circle #110 / Laguna Hills, CA 92653
949-916-0945 Fax 949-458-8502 www.eControlsUSA.com
Installer Manual
Model C365C32
Ver 2.0 Jun 2017
Displays the heating or
cooling temperature
UP/DOWN Keys.
Displays the downstairs
(Inside) or upstairs (Inside2)
temperature.
SYSTEM MODE Key
OFF, HEAT, COOL, AUTO or
EHeat
FAN MODE Key
AUTO or ON
ENTER Key
Used to save options and
return to thermostat operation
NEXT Key
Used to advance through
options
