Description
The Comfort365 thermostat controls heating, cooling and airflow to
the sleeping and living areas. The thermostat is installed in the living
area, a temperature sensor is installed in the bedroom area and two
modulating dampers are installed to control the airflow to the living and
sleeping space.
The C365 thermostat monitors the temperature at the sensor and the
temperature at the thermostat every 2 minutes during heating and
cooling calls. If the temperatures are different, the Comfort365
automatically adjusts the modulating dampers 2% so that more airflow
is directed to the space that needs it for a uniformly comfortable home.
The energy saving nighttime airflow control option uses the
temperature sensor in the sleeping space to control heating and
cooling calls and directs more airflow to the upstairs sleeping space
while decreasing the airflow to unoccupied living space.
The user can manually adjust airflow on occasions when more airflow
is needed in the bedroom space or living space.
SYSTEM MODES Off, Heat, Cool, Auto
FAN MODES Auto or Continuous
THERMOSTAT MODES Hold, Schedule or Vacant mode.
PROGRAMS PER DAY Morning, Daytime, Evening and Night.
PROGRAM FORMAT Weekdays and weekend– 5/2.
TEMPERATURE OVERRIDE Temperature is held for 3 hours
when adjusted in Schedule mode.
AIRFLOW CONTROL Airflow control can be turned off using
Option 17. The thermostat will operate as a typical thermostat.
AIRFLOW LIMITS Maximum airflow limits in heating and
cooling can be set during installation.

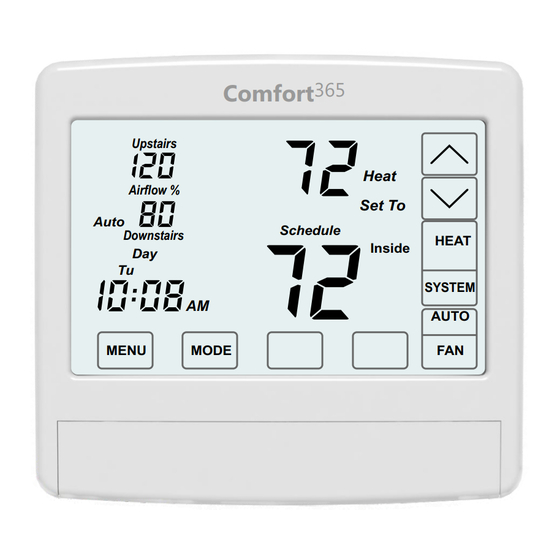

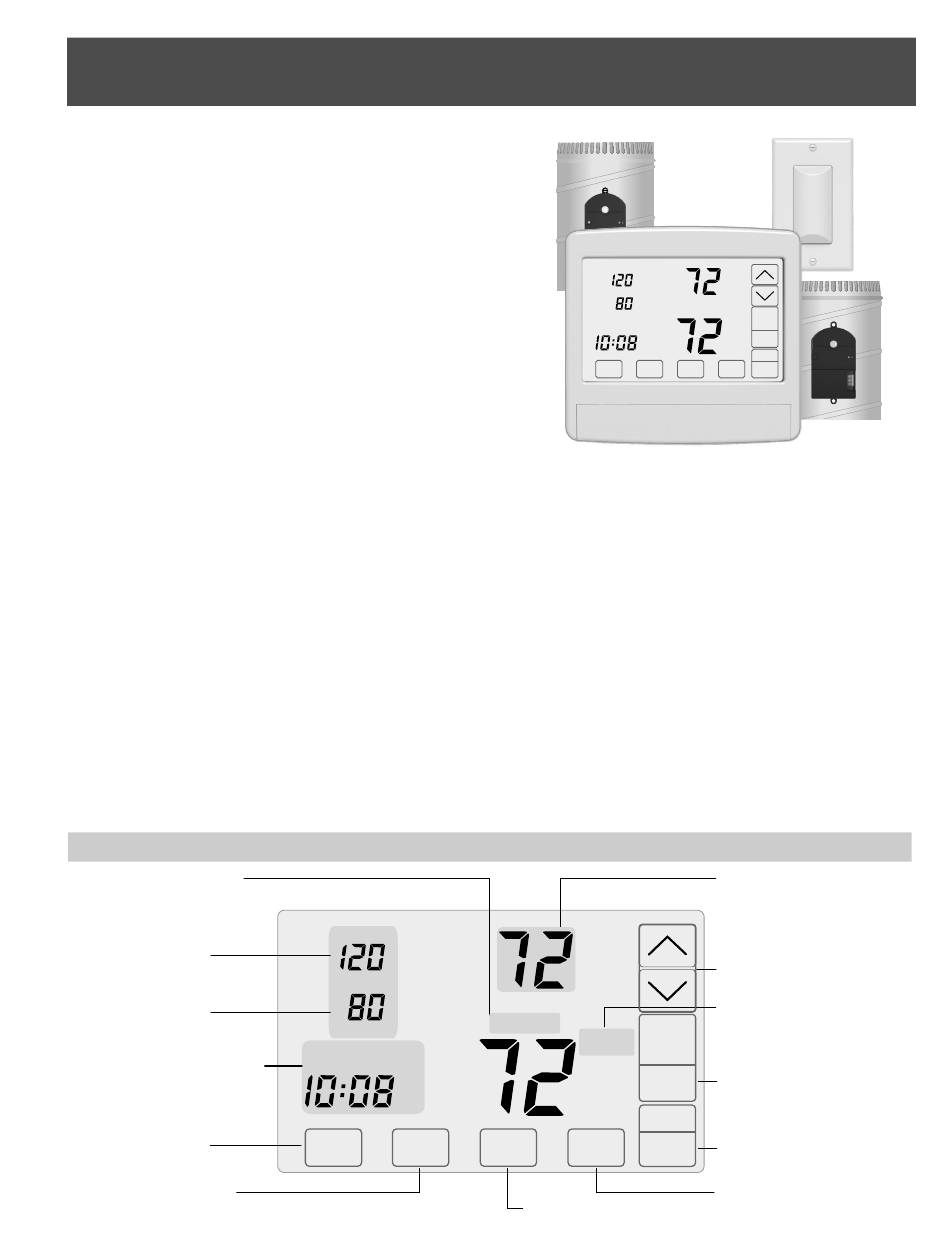

Quick Reference
Displays the Thermostat Mode
HOLD, SCHEDULE or VACANT
Displays airflow to the
Upstairs Sleeping Area
Displays airflow to the
Downstairs Living Area
Displays time, day and schedule
MORNING, DAYTIME, EVENING
or NIGHT
MENU Key
Set Schedule, Nighttime Airflow
Options, Clean Touch Screen
THERMOSTAT MODE Key
Selects SCHEDULE, HOLD or VACANT
365
Sleeping
Airflow %
Living
Day
Tu
AM
MENU MODE
Installer and User Manual
Model A80WL2
Damper Actuator Comfort
Wireless 24VAC
24VAC,2.8VA
24VAC
Made in USA
eControls, Inc.
Sleeping
Airflow %
Living
Day
Tu
AM
MENU MODE
NIGHTTIME OPERATION The C365 thermostat uses the
temperature sensor to control heating and cooling calls and
directs more airflow to the sleeping area. If bedrooms are
located downstairs, consider turning off the Nighttime Airflow
Control option off.
COMPATIBLE EQUIPMENT Gas/electric equipment with 2-
stage heating and 1-stage cooling or 1-stage heating and 2-
stage cooling and heat pumps with 2-stage heating and 2-
stage cooling.
TEMPERATURE SENSOR One TS510W sensor or two
TS520W temperature sensors can be used in the sleeping
area.
MODULATING DAMPERS Round or rectangular dampers
using the A80MT actuator and up to 1 inch static pressure.
POWER Operates on 24VAC from the HVAC equipment using
the R and C wires.
Heat
Set To
Schedule
HEAT
Living
SYSTEM
AUTO
FAN
NEXT Key
Used to advance through options
Model C365T21
Ver4.00 Jan 2018
365
Cool
Set To
Schedule
COOL
Living
SYSTEM
AUTO
FAN
Model A80MT
Damper Actuator
CLS
Modulating or
OPN
Open/Close
COM
24VAC,2.4VA
Made in USA
eControls, Inc.
Pat. Pending
Displays the heating or cooling
setpoint temperature
UP/DOWN Keys.
Displays the Living (downstairs) or
Sleeping (upstairs) temperature.
SYSTEM MODE Key
OFF, HEAT, COOL, AUTO
FAN MODE Key
AUTO or ON
ENTER Key
Used to save options and return to
thermostat operation
