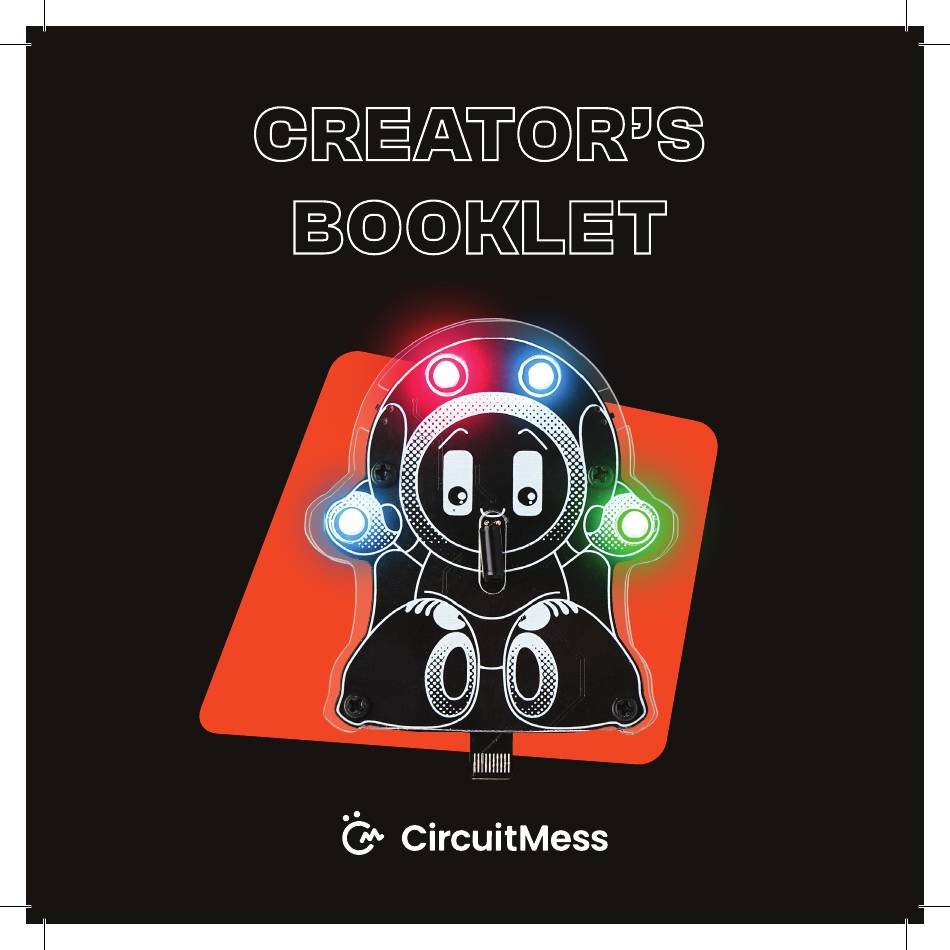

  • Page 1 CREATOR’S BOOKLET...
  • Page 2 Enhance your STEM knowledge with the CircuitMess toy collection! Wacky Robots are a quirky group of mini-robots that will help you master the basics of robotics and electronics. Collect all the Wacky Robots and unlock new games for the BIT!
  • Page 3 Connect your robots to Sparkly, a robot car that follows the source of light. Sparkly, BIT, and Wacky Robots are sold separately.

  • Page 4: How Does It Work

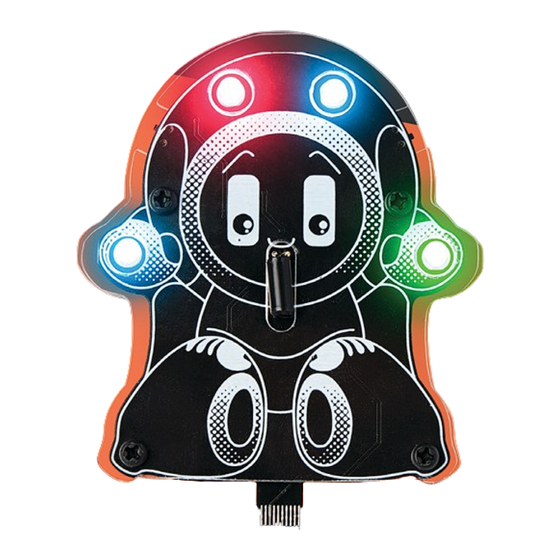

    Meet Robby Introducing Robby, a DIY Wacky Robot that will introduce you to the exciting world of robotics and STEM. With Robby, you’ll learn about different electronic components, vibration sensors, and LEDs. At the end, you’ll have a cool robot that lights up while being shaken! How does it work? Assemble your...
  • Page 5 DIY game console. People liked the idea, so he launched it on Kickstarter, which raised $100,745! After that, CircuitMess was born. We are a small and fast–growing team of tech lovers who wish to share our love of creating new technology...
  • Page 6 The mission Everybody knows how important technology is, but less than 1% of the population knows HOW TO MAKE new technology. We’re here to change that! With our kits, we want to inspire people to be CREATORS instead of just consumers.

  • Page 8: What's Inside The Box

    What’s inside the box? LEDs Screwdriver Plastic bolts Coin battery Plastic standoffs Acrylic casings You’ll learn about: Electronics and Vibration LEDs different electronic sensors components...
  • Page 10 Shake Things Up with Robby’s Tilt and Vibration Sensors Robby is not your ordinary robot – he’s equipped with tilt and vibration sensors to react to motion and movement. But what exactly are tilt and vibration sensors, and how do they work? A tilt sensor, also known as a tilt switch, is an electronic component that detects changes in orientation or inclination.
  • Page 11 On the other hand, a vibration sensor detects changes in acceleration or vibration in its environment. It converts mechanical vibrations into electrical signals, which the robot’s microcontroller can then process and analyze. In Robby, both the tilt and vibration sensors are programmed to recognize when he is being shaken or moved, causing him to light up in various colors and respond to the movement.
  • Page 12 Tilt Sensors in Everyday Life Tilt sensors are not only found in educational STEM kits and robots like Robby, they are also widely used in many everyday products and gadgets. Here are some examples of how tilt sensors are used in different areas of our lives: GAMING Tilt sensors are used in Nintendo Switch Joy-Con controllers, allowing players to use motion controls and tilt the controller...
  • Page 13 SMARTPHONES Many modern smartphones feature tilt sensors, which automatically adjust the screen orientation based on how the phone is held. Tilt sensors also enable motion-controlled games and apps. FITNESS TRACKERS Fitness trackers and smartwatches often use tilt sensors to detect when the wearer is moving or exercising.
  • Page 14 SELF-BALANCING SCOOTERS Self-balancing scooters, also known as hoverboards, use tilt sensors to detect the rider’s movement and adjust the scooter’s speed and direction accordingly. These are just a few examples of how tilt sensors are used daily. With so many applications, tilt sensors are a crucial technology that enhances the functionality of many products and gadgets we use daily.
  • Page 15 Powering Up: The History and Types of Batteries Many products use batteries, and so does Robby. But have you ever wondered about the history of batteries and how they work? Zinc Copper Alessandro Volta Electrolyte The concept of a battery can be traced back to ancient times when people discovered that certain materials, such as copper and iron, could produce an electric current when brought into contact with certain liquids.
  • Page 16 Today, many types of batteries are available, each with unique properties and applications. The most common types of batteries are alkaline batteries, which are used in a wide range of products, from toys to remote controls and flashlights. Lithium-ion batteries are another popular type of battery known for their high energy density and long lifespan.
  • Page 17 Batteries can also be classified based on their size and shape. The most common battery sizes are AAA, AA, C, D, and 9V. These sizes are standardized by organizations such as the International Electrotechnical Commission (IEC) and the American National Standards Institute (ANSI), making it easy to find the right battery for your device.
  • Page 18 When it comes to Robby, he uses a small 3V button cell battery to power his LED lights and tilt sensor. This type of battery is commonly used in small electronic devices and can be easily replaced when needed.
  • Page 19 Sparks of Innovation: Advances in Car Battery Technology Electric cars are becoming increasingly popular as people seek greener alternatives to traditional gasoline-powered vehicles. But how do these cars run without any fuel? The answer lies in their batteries. Unlike traditional cars that use gasoline to power an internal combustion engine, electric cars use rechargeable batteries to power an electric motor.
  • Page 20 Today, car batteries have come a long way since Parker’s invention. Modern electric cars can travel hundreds of miles on a single charge, making them a practical and eco-friendly option for many drivers. Additionally, advances in battery technology have made electric cars more affordable and accessible than ever.

  • Page 21: Did You Know

    Did you know? Did you know that the largest battery in the world is currently under construction in the UK? The Minety Power Project is expected to have a capacity of 350 megawatts, which is more than double the size of the previous record holder, the Hornsdale Power Reserve in Australia.

  • Page 23: Safety First

    If you have never used a screwdriver, carefully follow the assembly instructions on our website and, if necessary, ask someone more experienced or older than you to help you. If you are having problems with our kit, contact our customer support via email at contact@circuitmess.com.
  • Page 24 ROBBY BUILD GUIDE To get two smaller casings from the kit, you’ll need to break one large acrylic piece. But please, be super careful when doing this to make sure you don’t damage the parts you need. After breaking it, you’ll end up with two separate pieces of acrylic casings. If you find there’s too much excess acrylic in the holes of the casings, just gently push it out.
  • Page 25 Remove the protective foil from both sides of the casings now. Your casings should be all nice and transparent now.
  • Page 26 Now, let’s dive into the exciting assembly part! Start by grabbing the casing that matches the one in the photo below and gently place it onto the PCB.
  • Page 27 Now, for the next step, put the second casing on the backside.
  • Page 28 To make sure everything stays in place, we’ll need to secure these casings with bolts and standoffs. Here’s how you do it: put the bolts in from the front and add the standoffs onto the back. Fasten the standoffs with your fingers –...
  • Page 29 This is what Robby should look like after you put on all of the bolts and standoffs. Grab the coin battery and carefully place it on the backside (make sure the + symbol on the battery matches the + sign on the board - front and up).
  • Page 30 Let’s bring Robby to life with some LEDs! You get to choose which LEDs you’d like to add to Robby, so go ahead and pick your favorites. It’s important to pay attention to the polarity of the LEDs as you connect them. Flip Robby around, and you’ll spot those + and - signs next to each connector.
  • Page 31 Switch for vibration sensor On/Off switch Click the switch on the right, and the LEDs on Robby’s hands will light up and stay on until you decide to turn them off.
  • Page 32 Now, for a real fun surprise, click the switch on the left and give Robby a little shake. His head LEDs will light up and gradually fade off, but don’t worry, shaking Robby again will turn them back on!
  • Page 33 We hope you had a blast putting Robby together and maybe even picked up some new tricks along the way. And hey, here’s a bonus: Connect it to the CircuitMess BIT and unlock a new game! *BIT is sold separately...
  • Page 34 If you • Do not use the device or the battery suspect that any part of your CircuitMess in high–temperature conditions. Wacky Robots kit (especially the batteries) Overheating may cause an explosion.
  • Page 35 • In the case of deformation, stop using the Exposure of CircuitMess Wacky Robots to battery immediately and dispose of it properly. environments with high concentrations of industrial chemicals, including liquefied gases If you are not sure whether your device...
  • Page 36 Member States. Check all the national suitable for the child’s age and abilities. and local regulations about using the 3. Check from time to time if CircuitMess device. These devices may be restricted Wacky Robots are damaged or worn for use, depending on local laws.
  • Page 37 Proper disposal of this product in the CircuitMess Wacky Robots DIY educational kits, CircuitMess d.o.o. will WEEE markings on the product indicate that repair the product or send an equivalent this product may not be disposed of with the replacement product at their own expense.
  • Page 38 Malfunctions due to improper handling, faults due to wear of the device and/or CircuitMess d.o.o. as the warranty provider its parts (in you need help with assembly and/or its authorized partners will not or if you have difficulty using the device...
  • Page 39 WARRANTY SHEET CircuitMess Wacky Robots Product name: do-it-yourself educational solder kit Warranty on components and 24 months parts contained in this set is: Date of purchase: Seller and point of sale stamp: Invoice number: Information on interventions during warranty period is entered by a repair shop technician at an authorized repair shop.
  • Page 40 Scan and find more fun games and lessons:...
